Name: Boxexpert Treva grau 300300200 Wall-mount enclosure 300 x 300 x 200 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404551

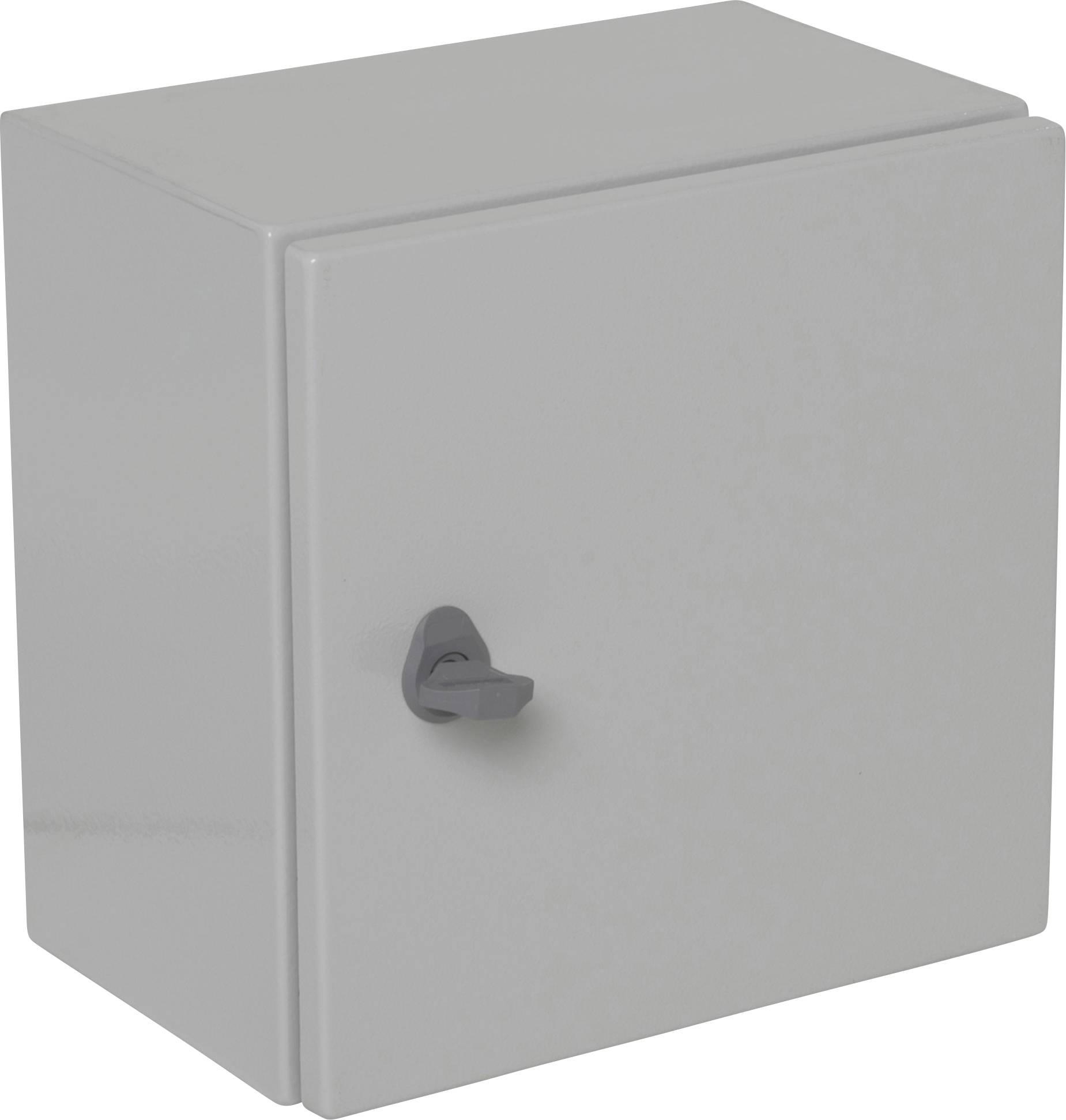

Grey painted metal cabinet with a closed door and a rotary handle in the centre.

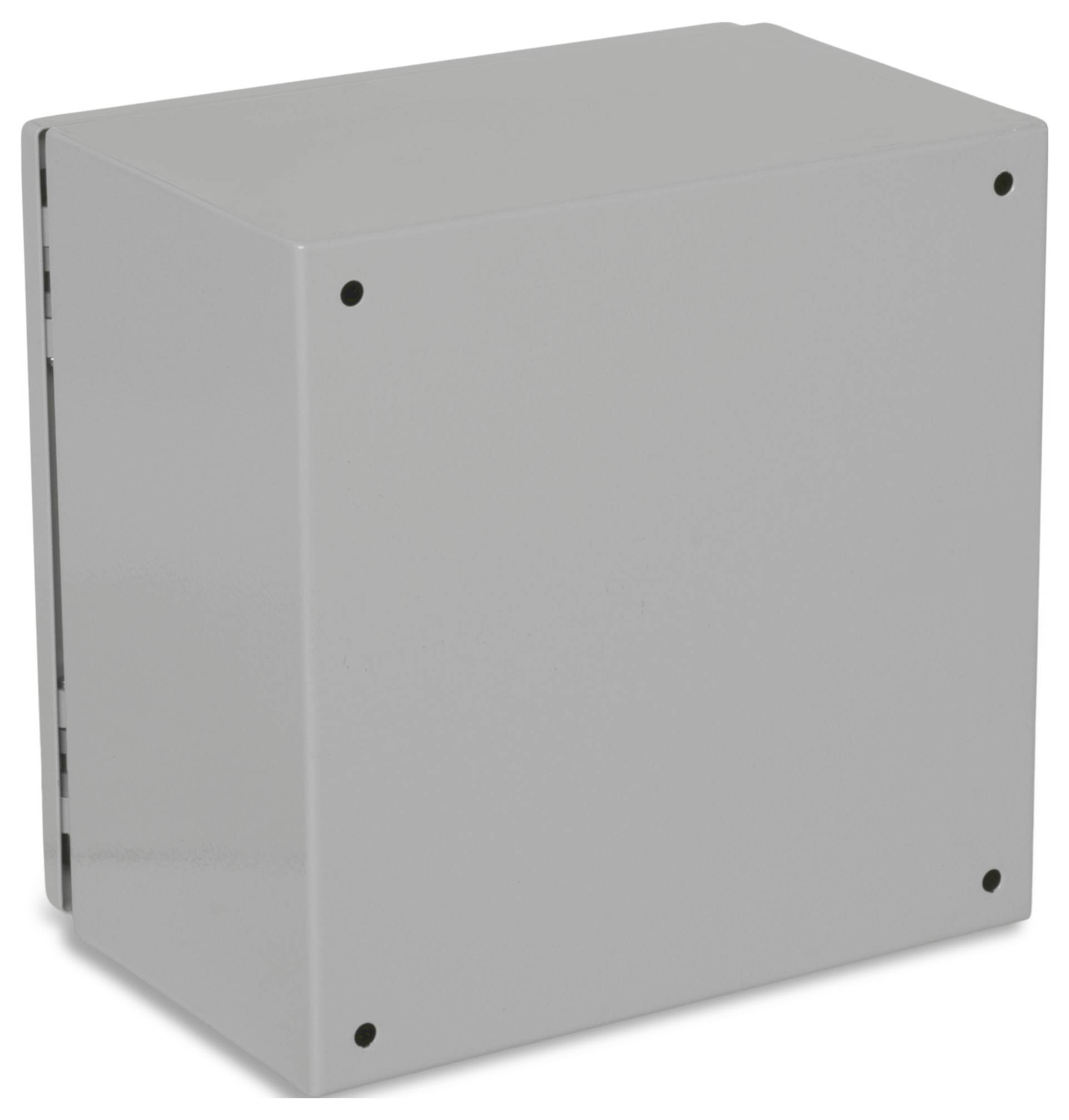

Grey, rectangular metal box with four screws in the corners.

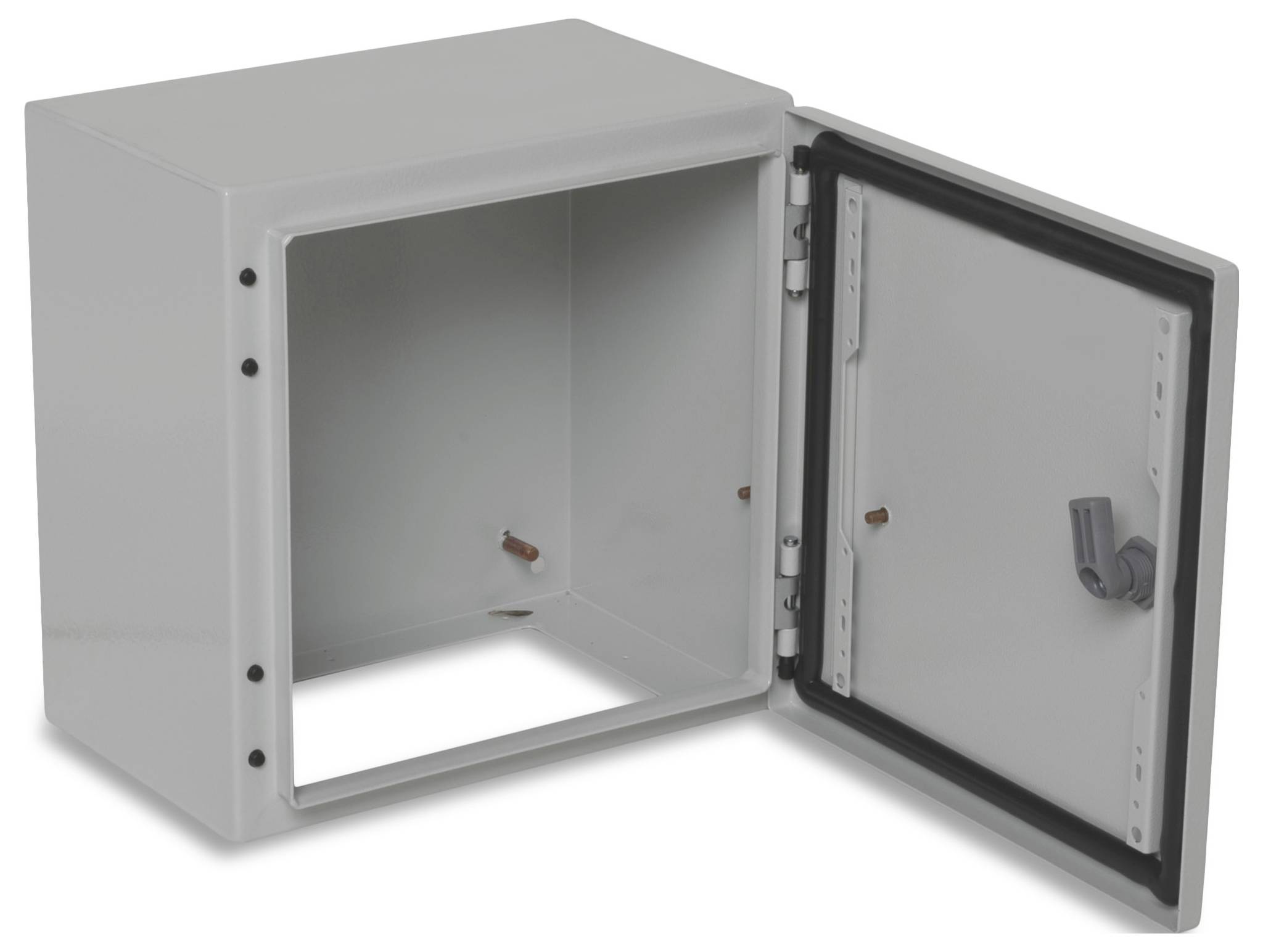

Metal box with an open door, showing interior. Used for secure storage, with visible hinges and lock.

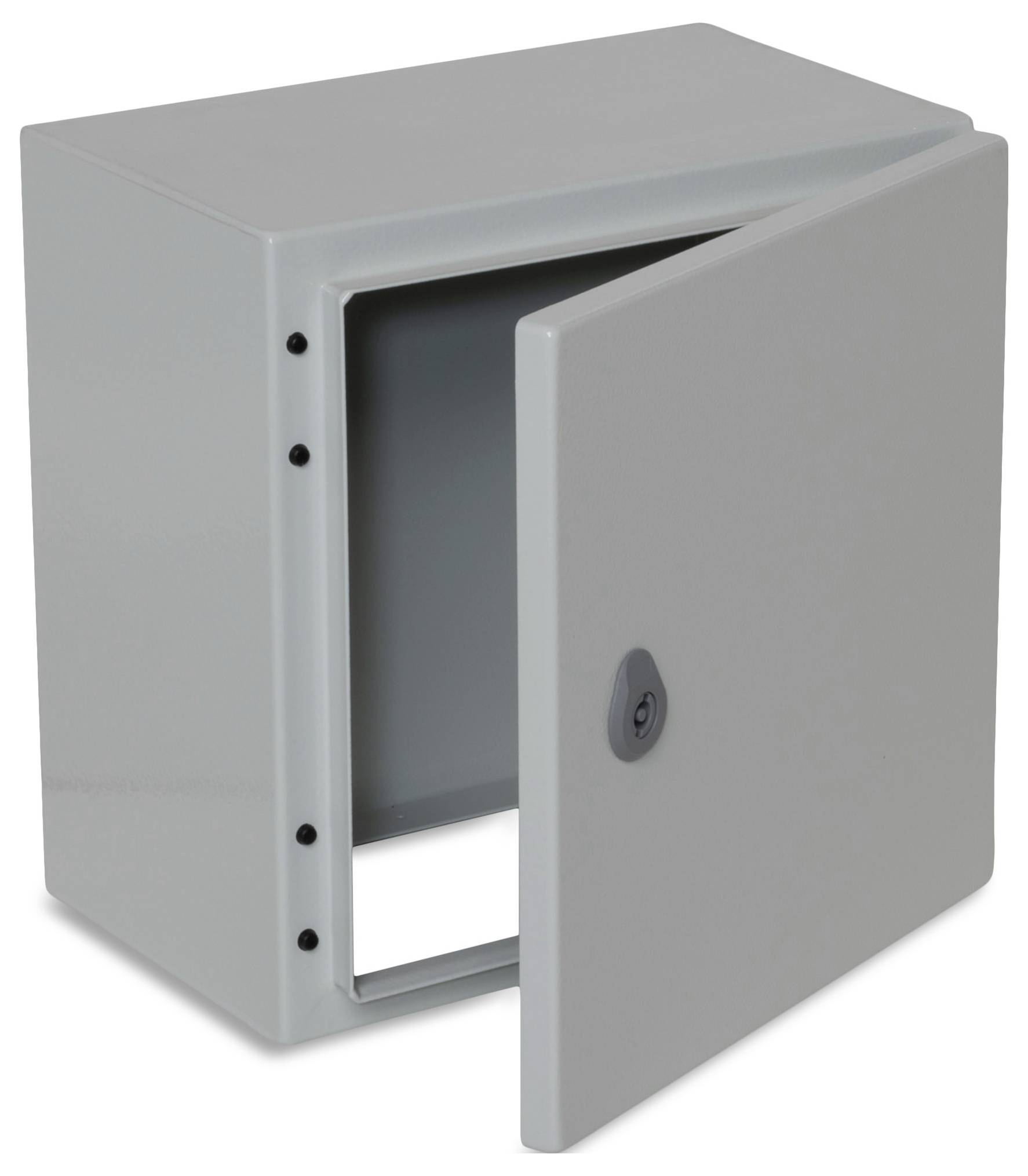

Grey metal filing cabinet with an open door, showing interior space and side holes for mounting.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

300 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 254 x 254 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: shockproof
with hole
UV-resistant
wallmount option
with mount plate

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 300 mm

Width: 300 mm

Height: 200 mm

Weight: 6.15 kg

Content: 1 pc(s)

Type: Treva grau 300300200

Dim: (L x W x H) 300 x 300 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB303020-T01

Depth: 200 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404551 Boxexpert Treva grau 300300200 Wall-mount enclosure 300 x 300 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404551 Boxexpert Treva grau 300300200 Wall-mount enclosure 300 x 300 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The Treva housing series from BOXEXPERT offers an economical and high-quality solution for steel cabinet wall. The UV resistant polyester paint coating protects the housing outdoors. The pre-punched holes allow the wall to be mounted easily and the mounting plate allows the component to be easily fastened. The adaptable design makes the Ideal series suitable for customized installations. Areas of application include the feeding, distribution and conversion of electrical energy in the industry.

This text is machine translated.
