Name: Boxexpert Treva grau 400300150 Wall-mount enclosure 300 x 400 x 150 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404552

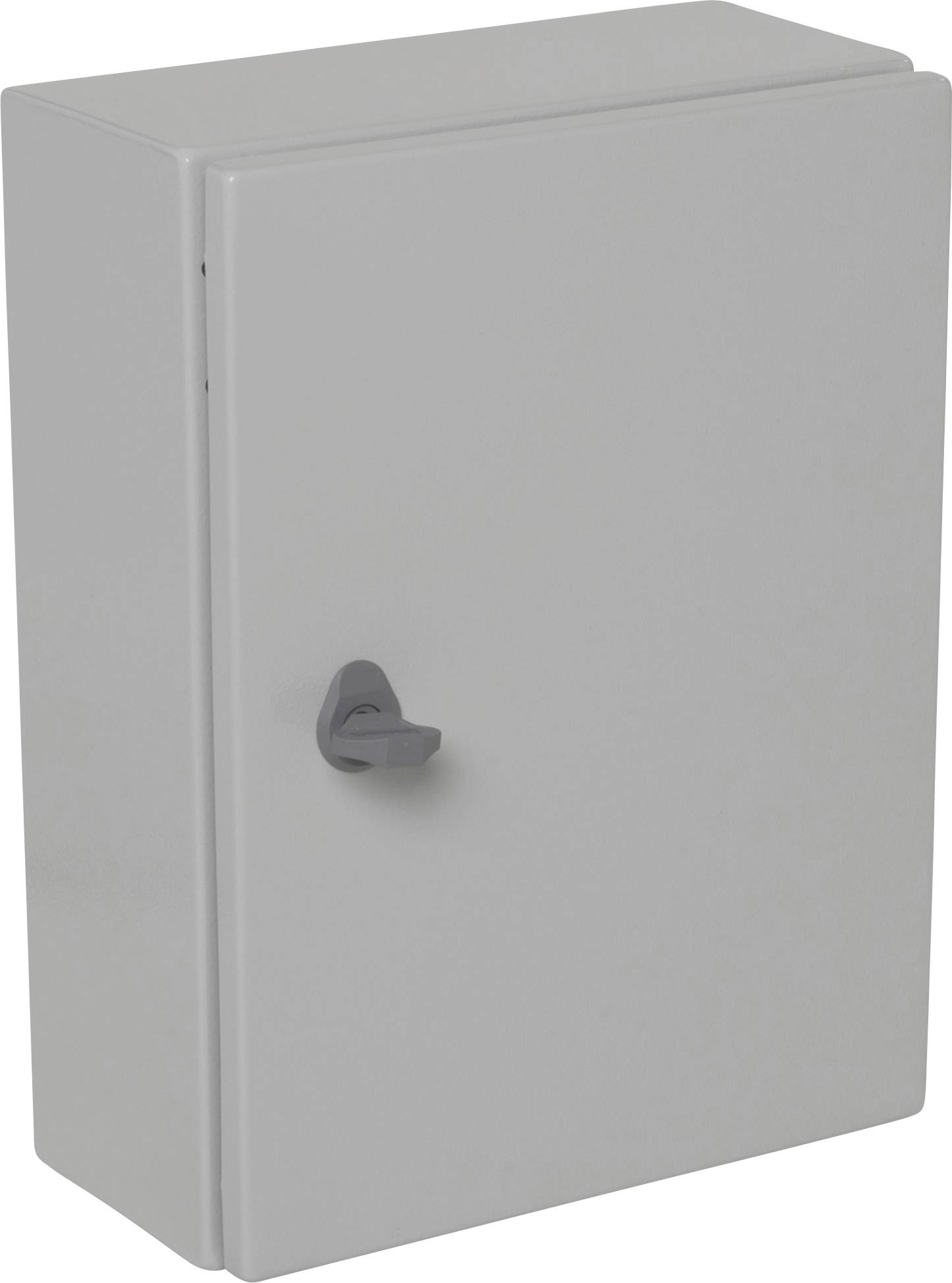

Grey, rectangular metal cabinet with handle, closed.

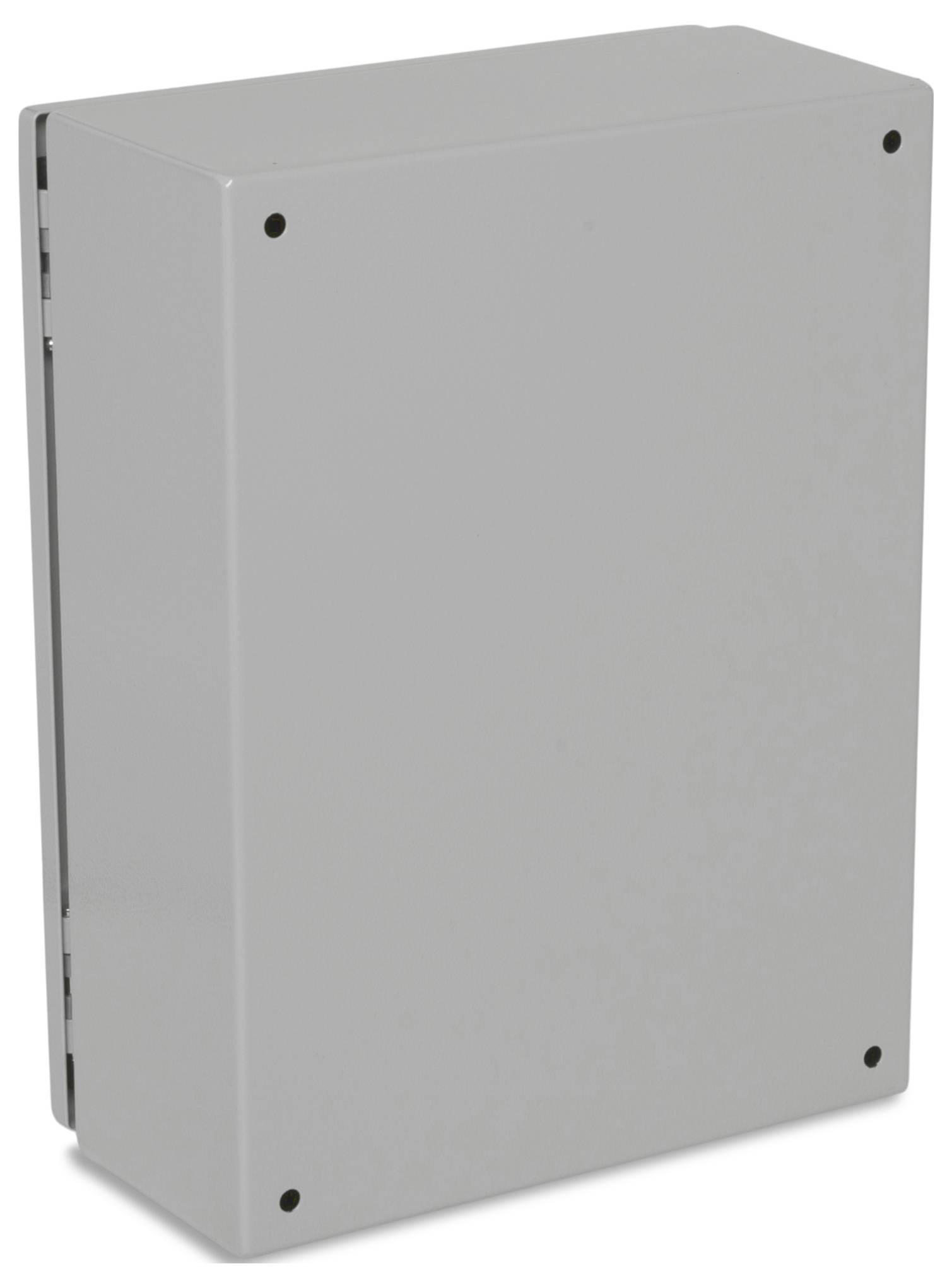

Grey electrical enclosure with a rectangular shape, four screw holes at the corners, suitable for indoor electrical installations.

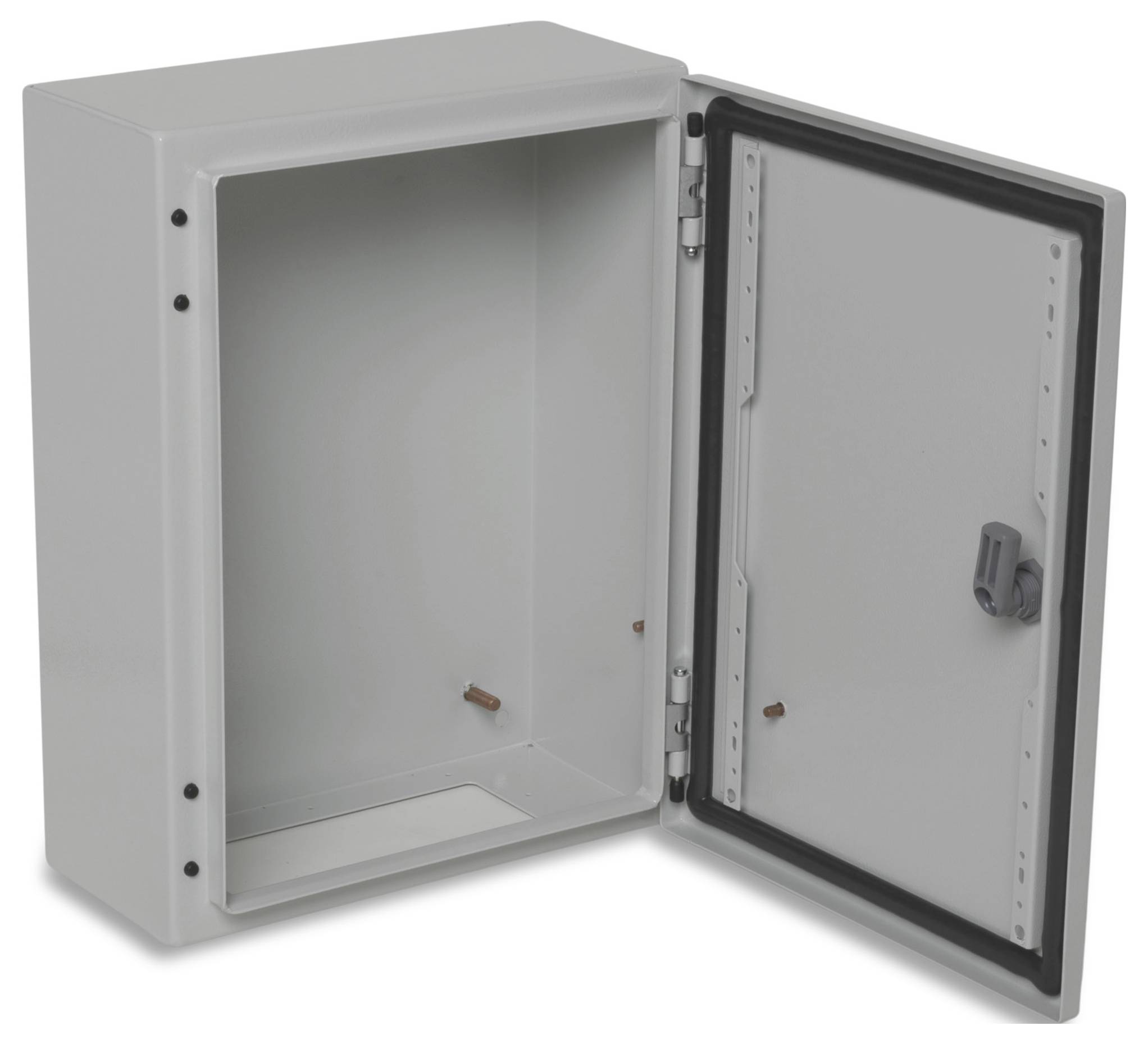

Metal cabinet with an open door, showing an empty interior. The door has a handle and hinges on the left side.

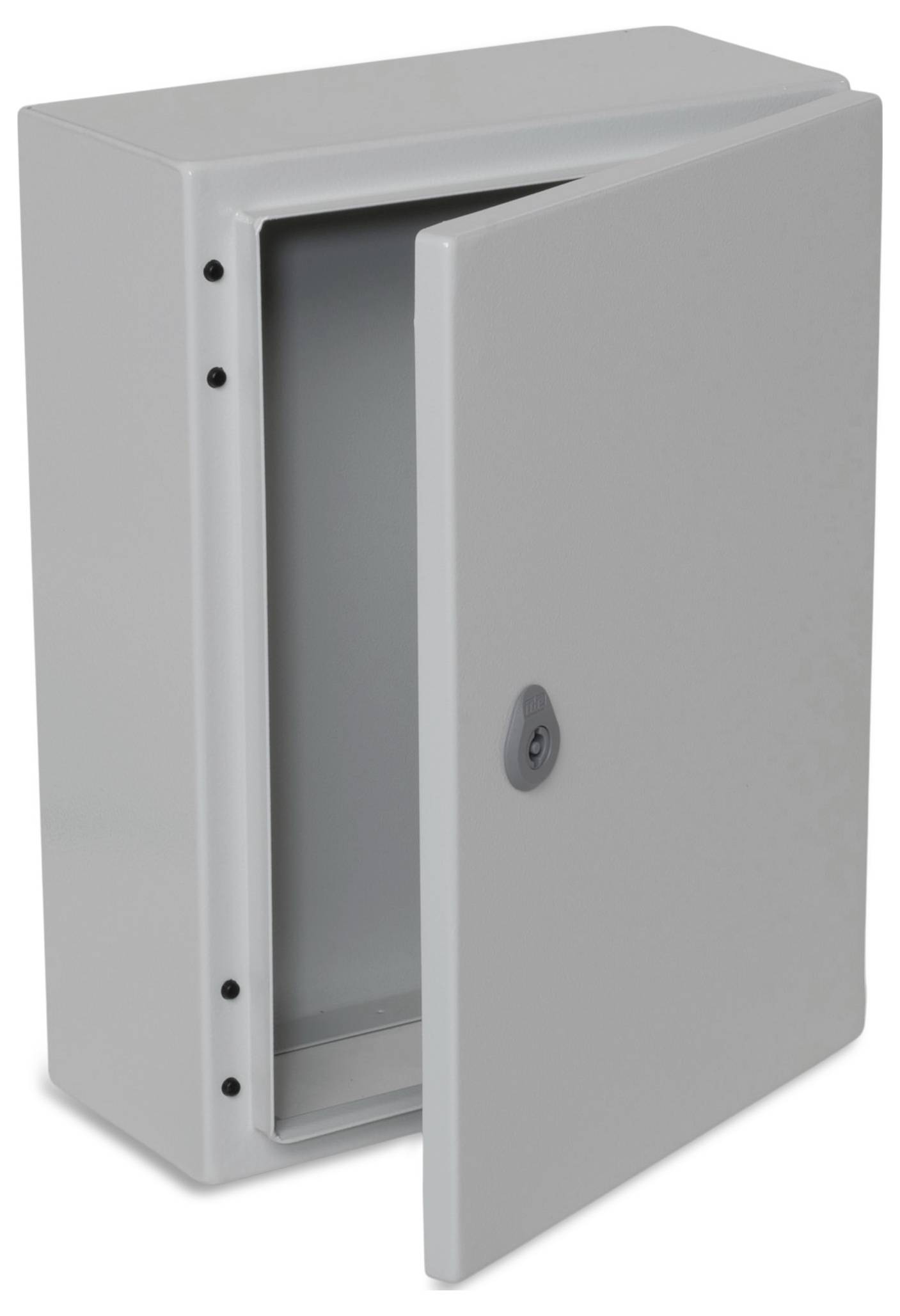

Grey metal cabinet with an open door and lock.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

400 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 1-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 354 x 254 x 129
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: with hole

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 300 mm

Width: 400 mm

Height: 150 mm

Dimensions: 354 x 254 x 129 mm

Weight: 7.65 kg

Content: 1 pc(s)

Type: Treva grau 400300150

Dim: (L x W x H) 300 x 400 x 150 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB403015-T01

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404552 Boxexpert Treva grau 400300150 Wall-mount enclosure 300 x 400 x 150 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404552 Boxexpert Treva grau 400300150 Wall-mount enclosure 300 x 400 x 150 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series from BOXEXPERT stands for long-lasting and cost-efficient steel cabinet casing. The resistant polyester coating with UV protection makes it Ideal for outdoor use. They have pre-punched holes for quick wall mounting and a mounting plate for component mounting. Due to their high adaptability, they are suitable for specific installation requirements. The main areas of application are power distribution, feed and conversion in industry.

This text is machine translated.
