Name: Boxexpert Treva grau 400300200 Wall-mount enclosure 300 x 400 x 200 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404553

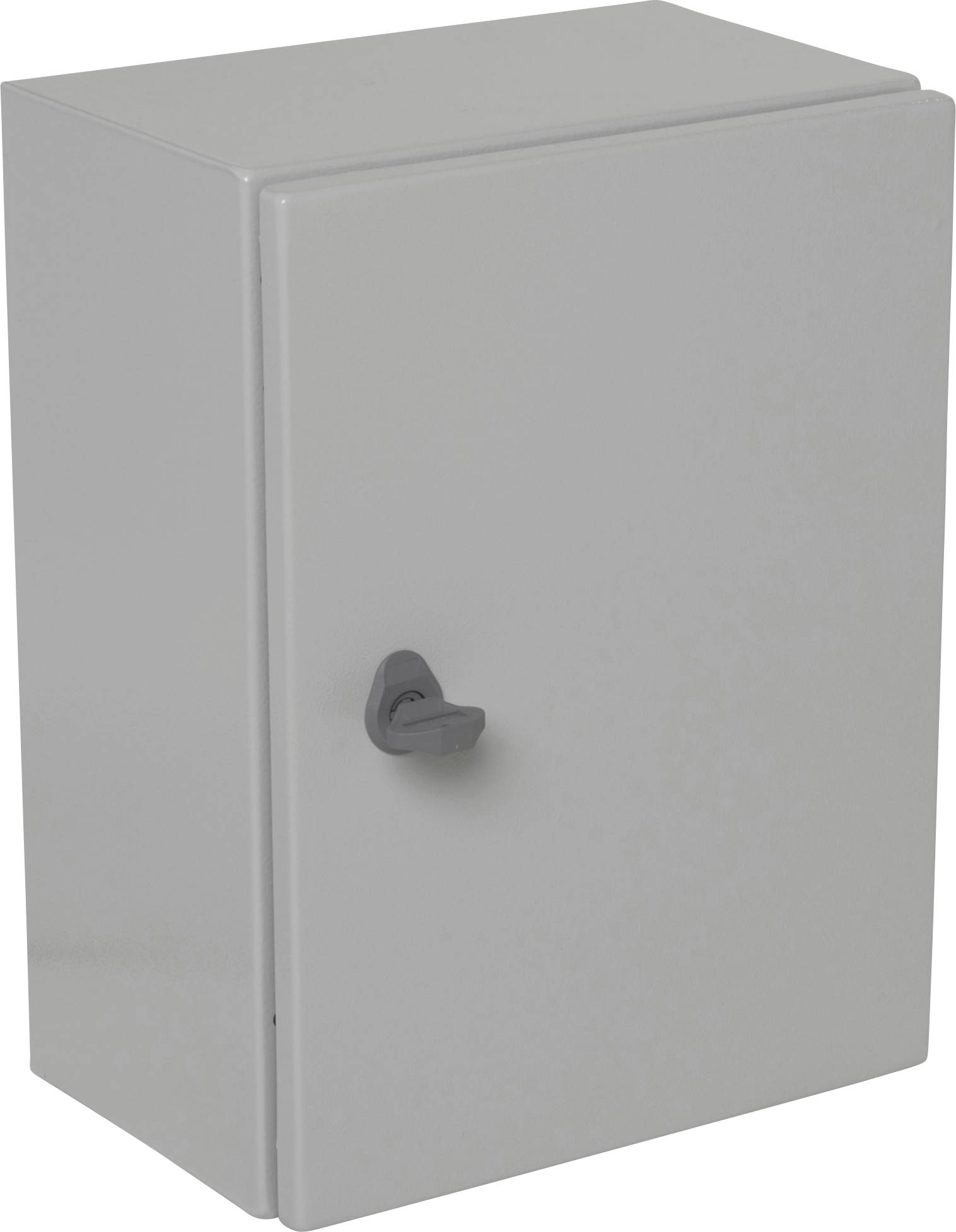

Grey metal cabinet with a locking lever, used for securely storing objects or electrical components.

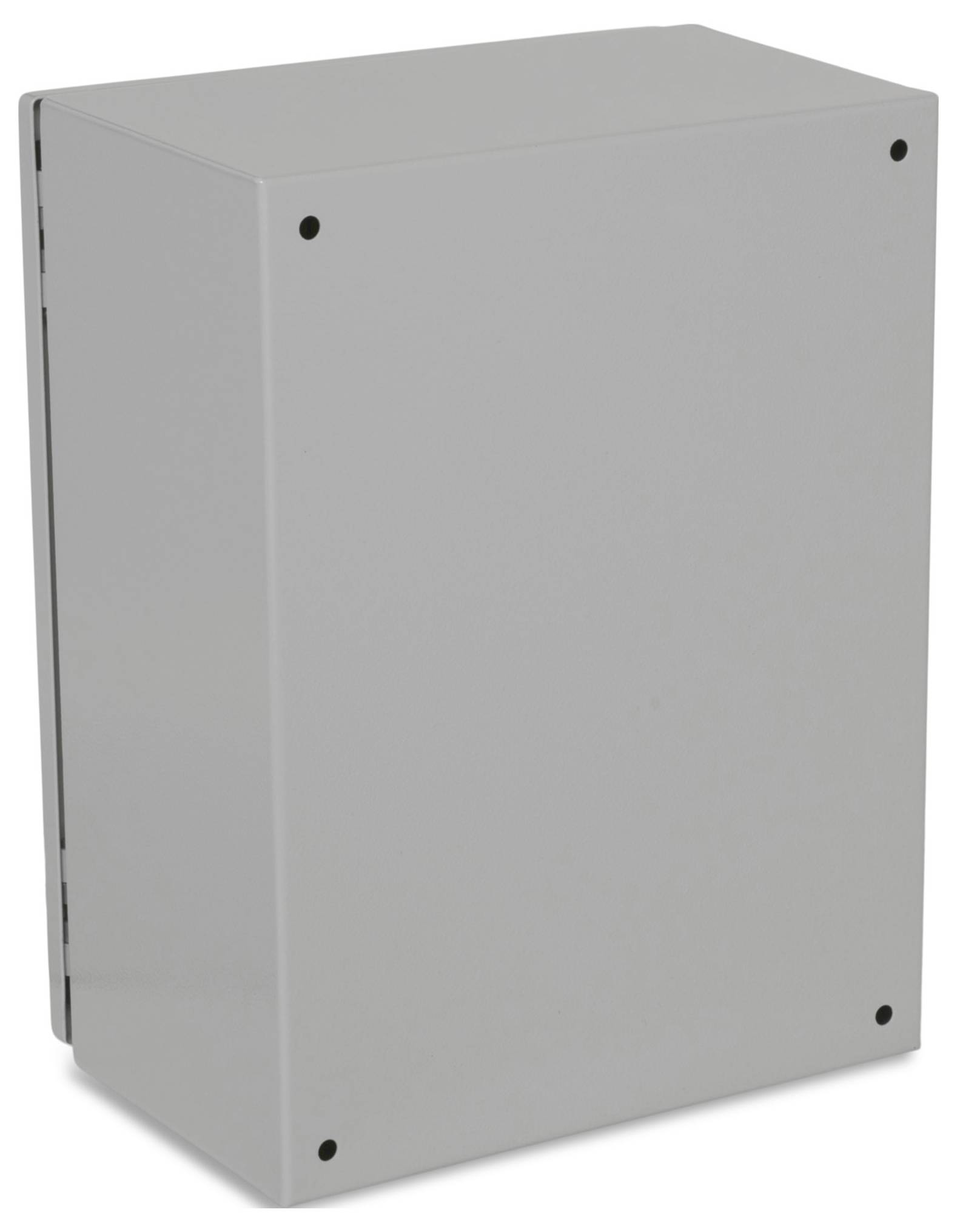

Grey painted metal box with four visible screws at the corners, suitable for storage or as a distribution cabinet.

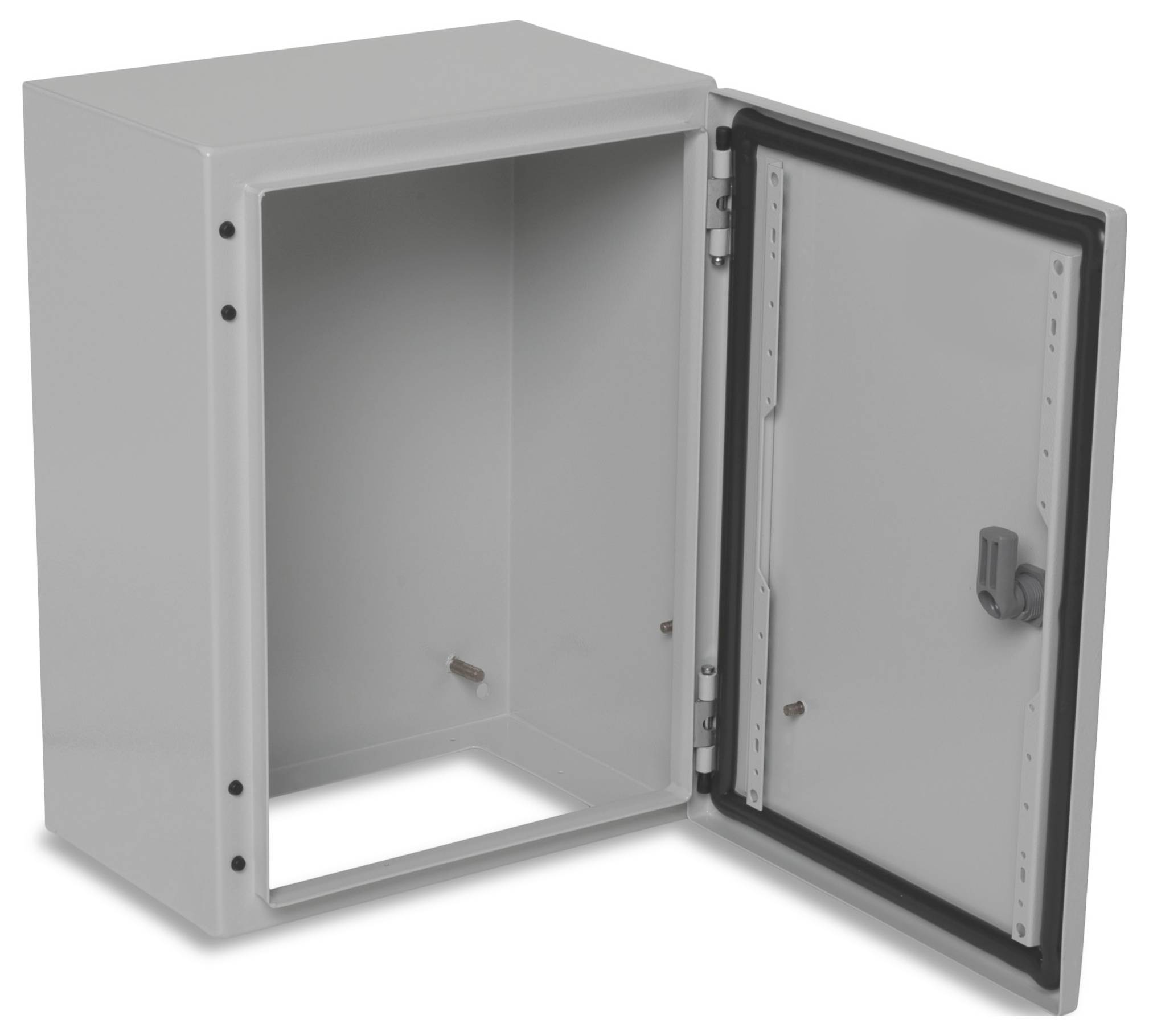

An open, white metal cabinet with a door on the right side. The interior is empty. The cabinet stands upright.

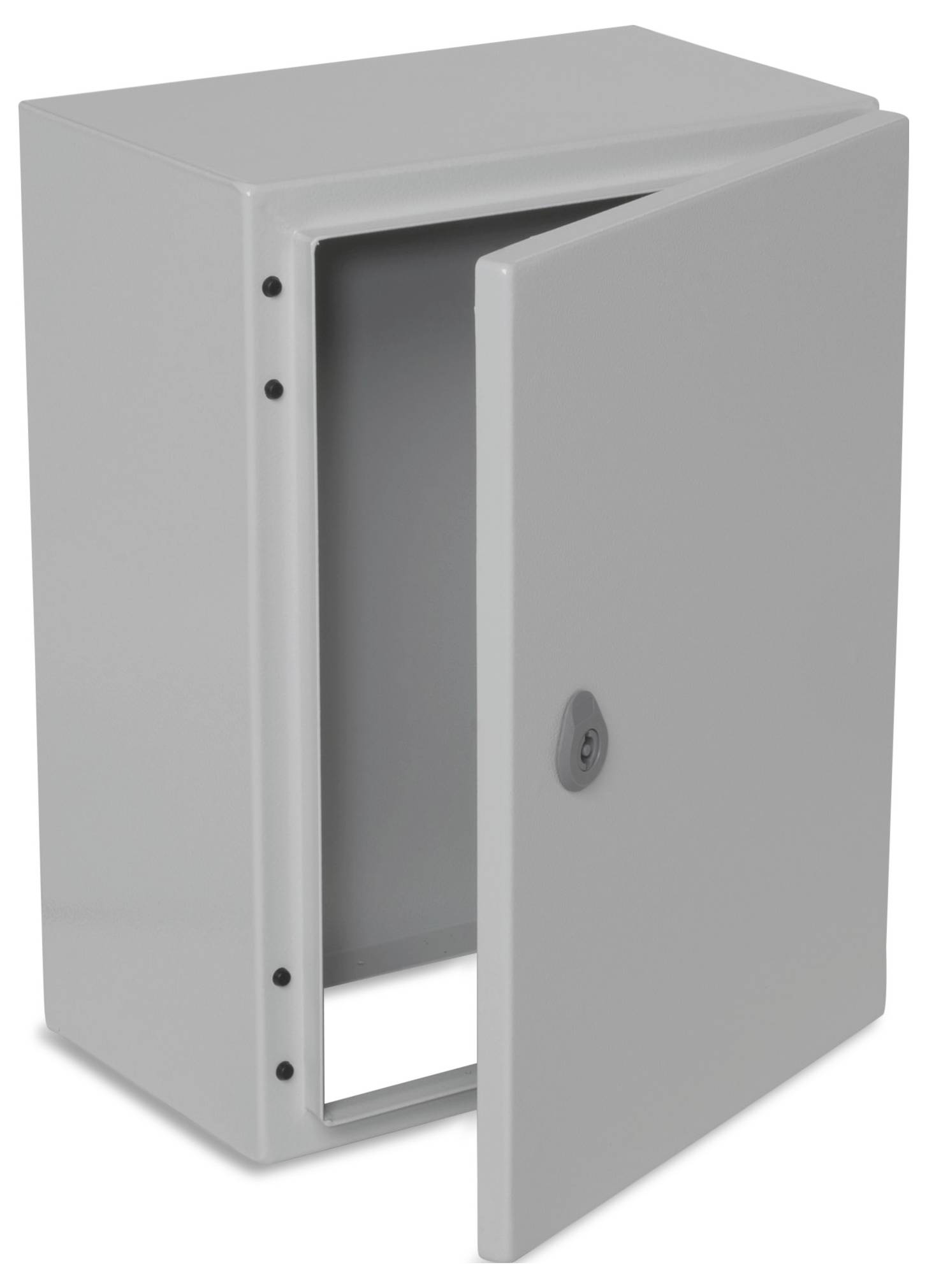

Grey metal filing cabinet with an open door, revealing an empty interior. Simple design, suitable for storing items.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

400 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 1-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 204 x 154 x 129
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: Double sided ward

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 300 mm

Width: 400 mm

Height: 200 mm

Weight: 7.75 kg

Content: 1 pc(s)

Type: Treva grau 400300200

Dim: (L x W x H) 300 x 400 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB403020-T01

Depth: 200 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404553 Boxexpert Treva grau 400300200 Wall-mount enclosure 300 x 400 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404553 Boxexpert Treva grau 400300200 Wall-mount enclosure 300 x 400 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series of cabinet from BOXEXPERT combines quality with economy. The robust steel-plate housing is designed for the external application through its UV-resistant polyester coating. Four pre-punched holes make the installation easier and the smooth mounting plate offers space for components. The flexible design enables an adaptation to individual installation conditions. The Ideal series is suitable for power feed, distribution and conversion in industrial applications.

This text is machine translated.
