Name: Boxexpert Treva grau 400400200 Wall-mount enclosure 400 x 400 x 200 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404555

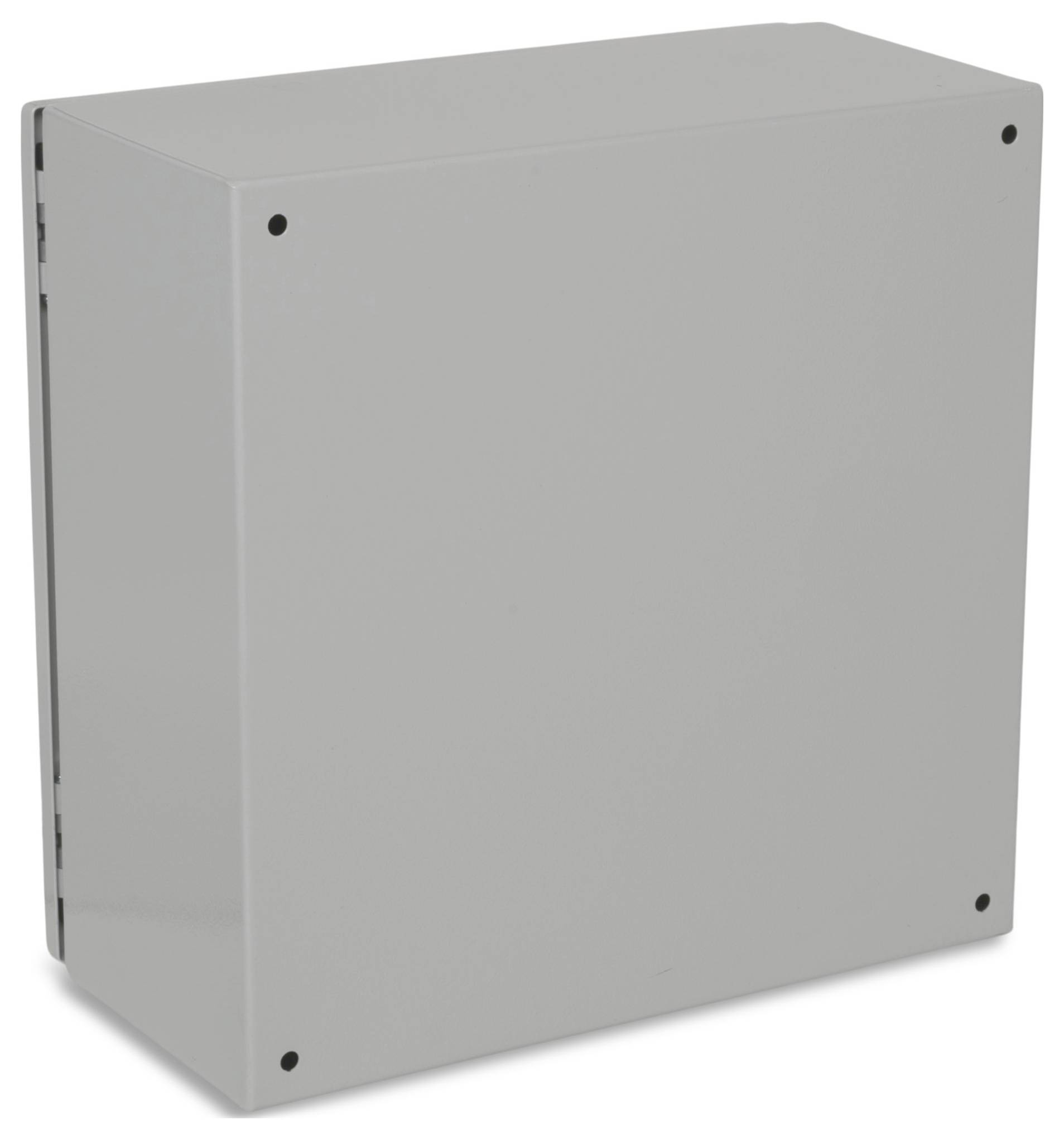

Grey metal enclosure, square in shape, with rounded edges and screw holes at the corners.

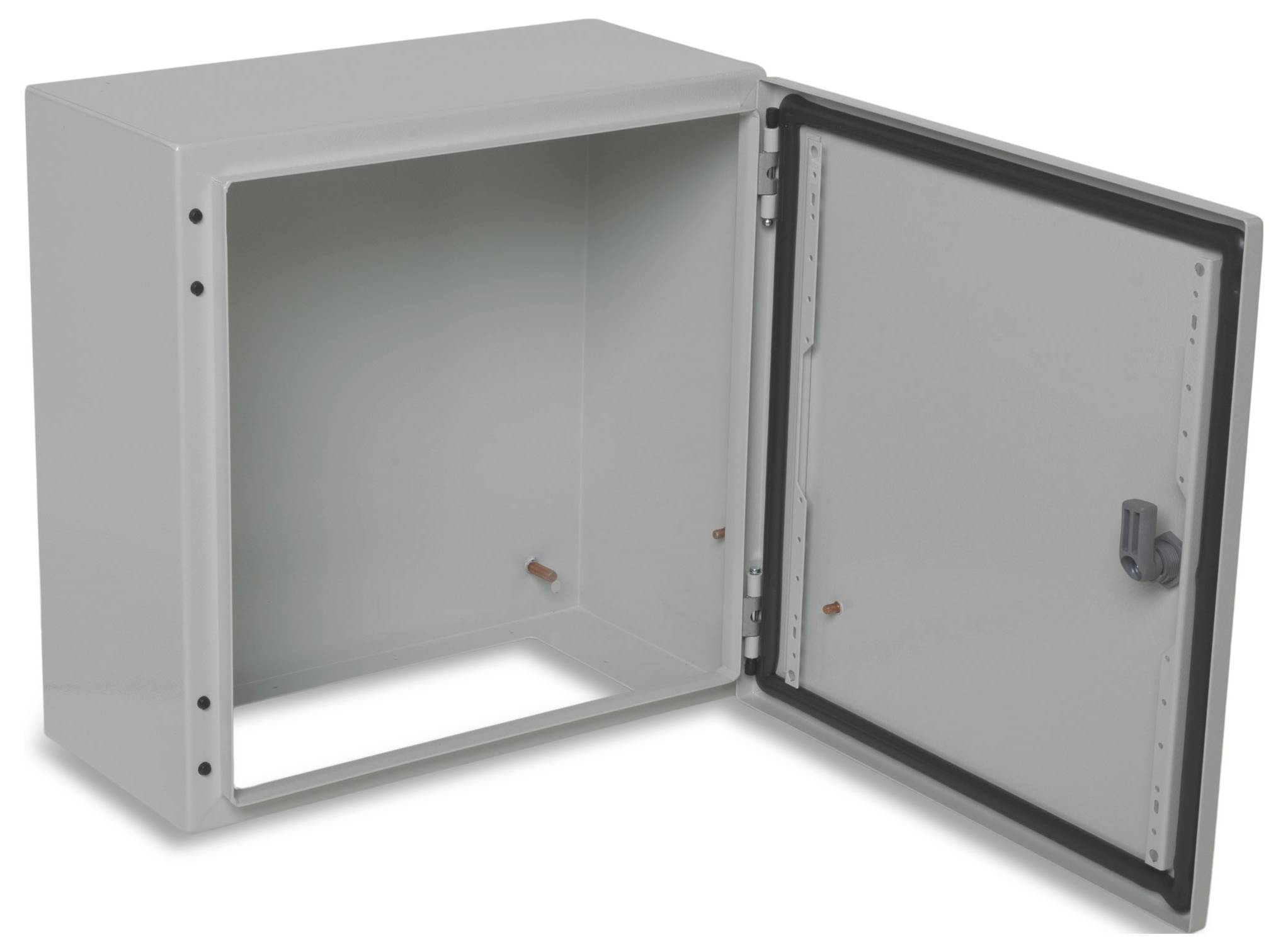

Enclosed grey metal cabinet with an open door, revealing its interior. Suitable for industrial or electrical applications.

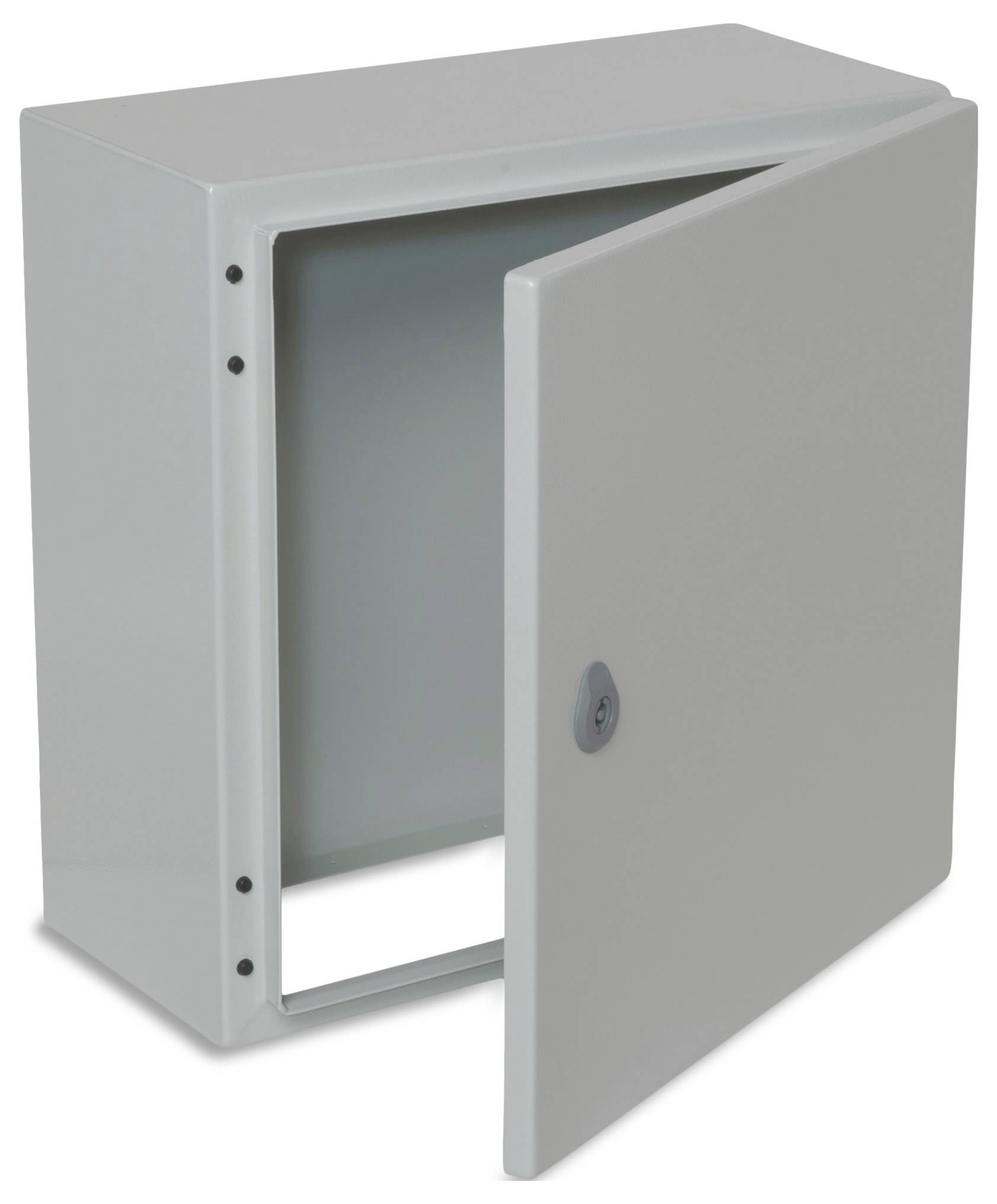

An open grey metal cabinet with a door slightly ajar.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

400 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 354 x 354 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: wallmount option

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 400 mm

Width: 400 mm

Height: 200 mm

Dimensions: 400 x 400 x 200 mm

Weight: 9.5 kg

Content: 1 pc(s)

Type: Treva grau 400400200

Dim: (L x W x H) 400 x 400 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB404020-T01

Depth: 200 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404555 Boxexpert Treva grau 400400200 Wall-mount enclosure 400 x 400 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404555 Boxexpert Treva grau 400400200 Wall-mount enclosure 400 x 400 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series from BOXEXPERT consists of high-quality and at the same time inexpensive steel sheet wall cabinets. Thanks to the resistant polyester coating with UV protection, they are ideally suited for outdoor use. Four pre-punched holes allow for quick wall mounting, while a mounting plate with a smooth surface serves for component attachment. The design is flexible and adapts to different installation requirements. Application areas include energy distribution and conversion in industry.
