Name: Boxexpert Treva grau 400400250 Wall-mount enclosure 400 x 400 x 250 x 250 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404556

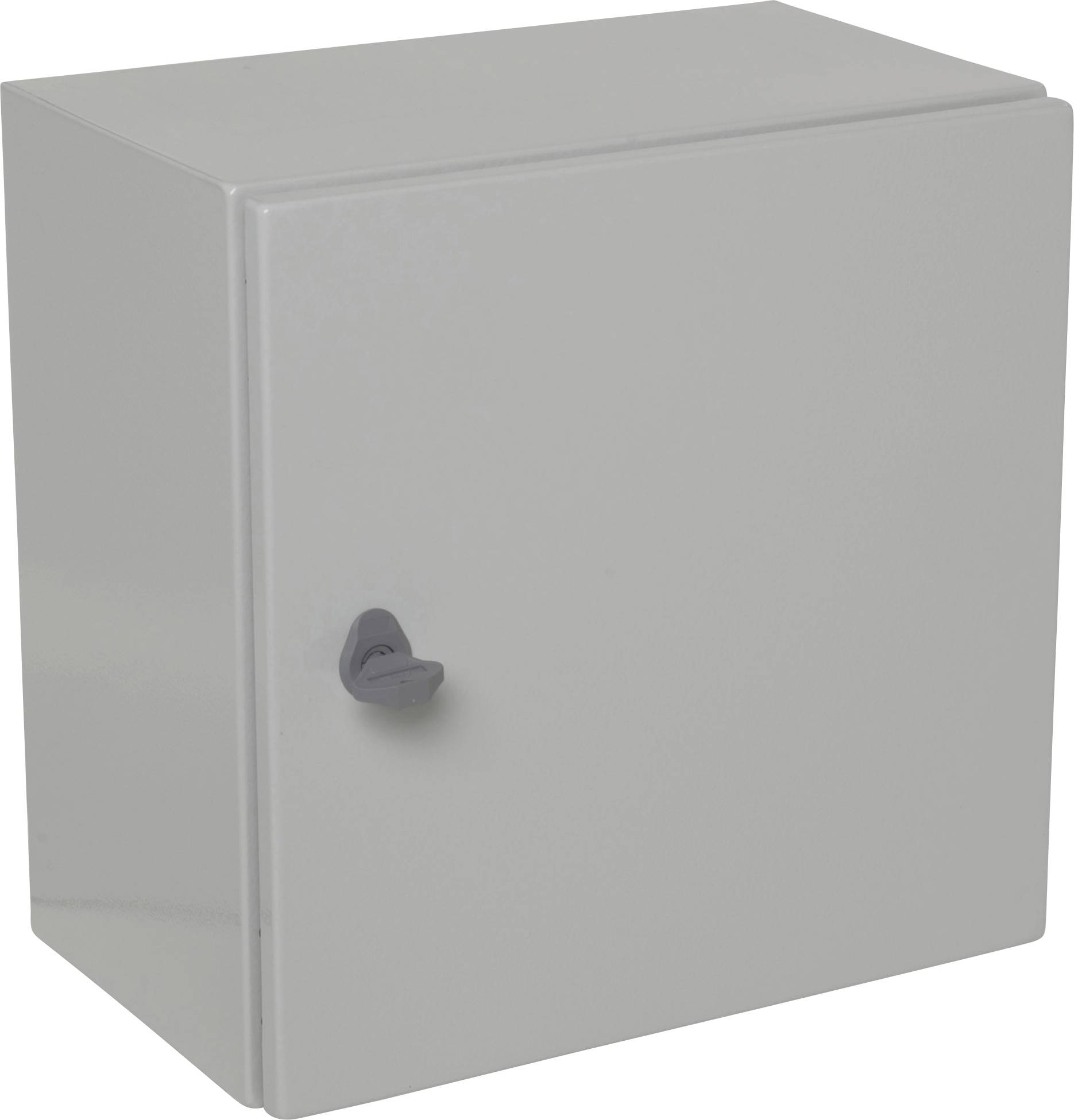

A grey metal box with a black handle on the front. The box is closed and has a minimalist design.

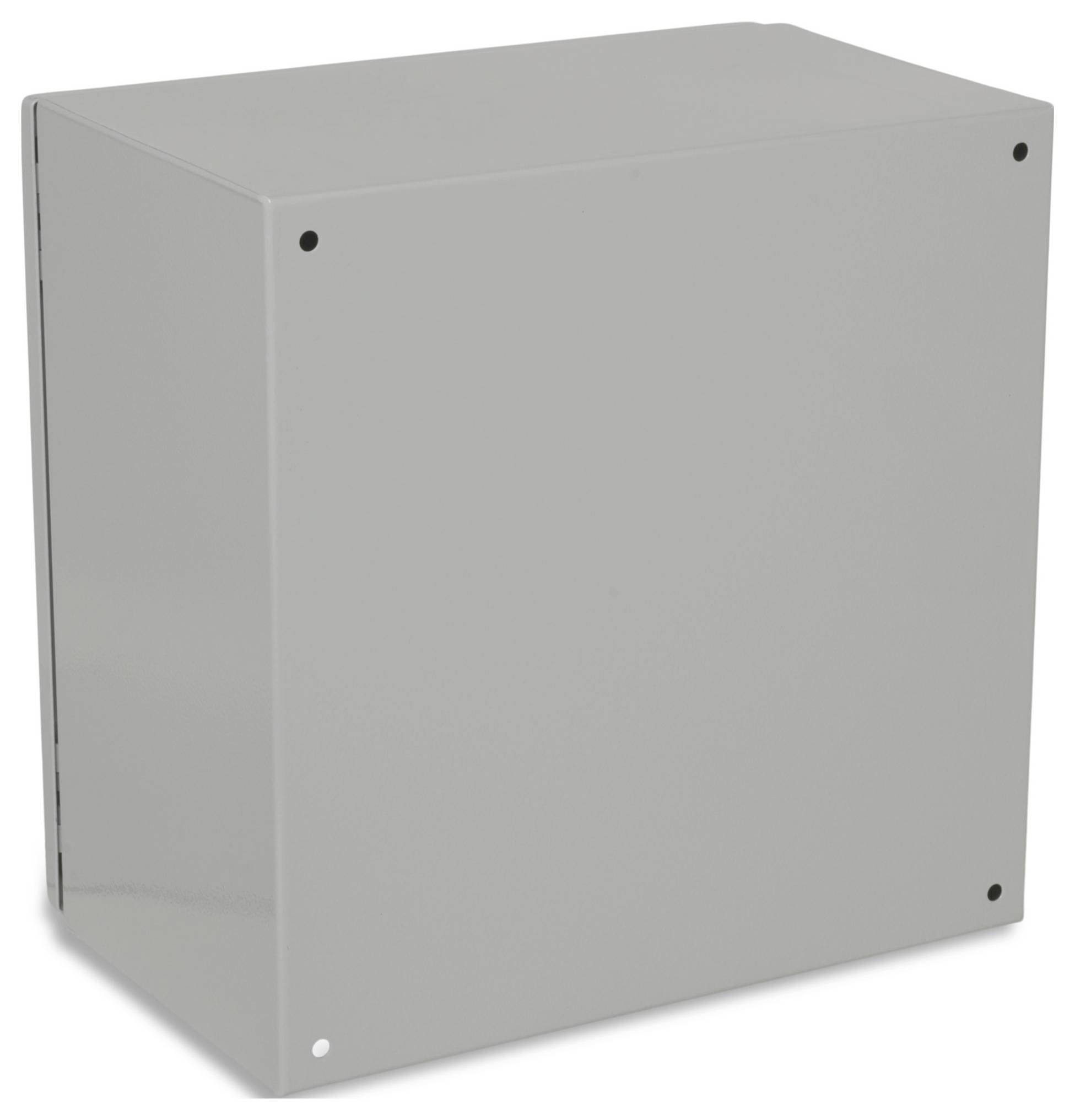

Grey metal box with four visible screws at the corners, likely serving as an enclosure for electrical components.

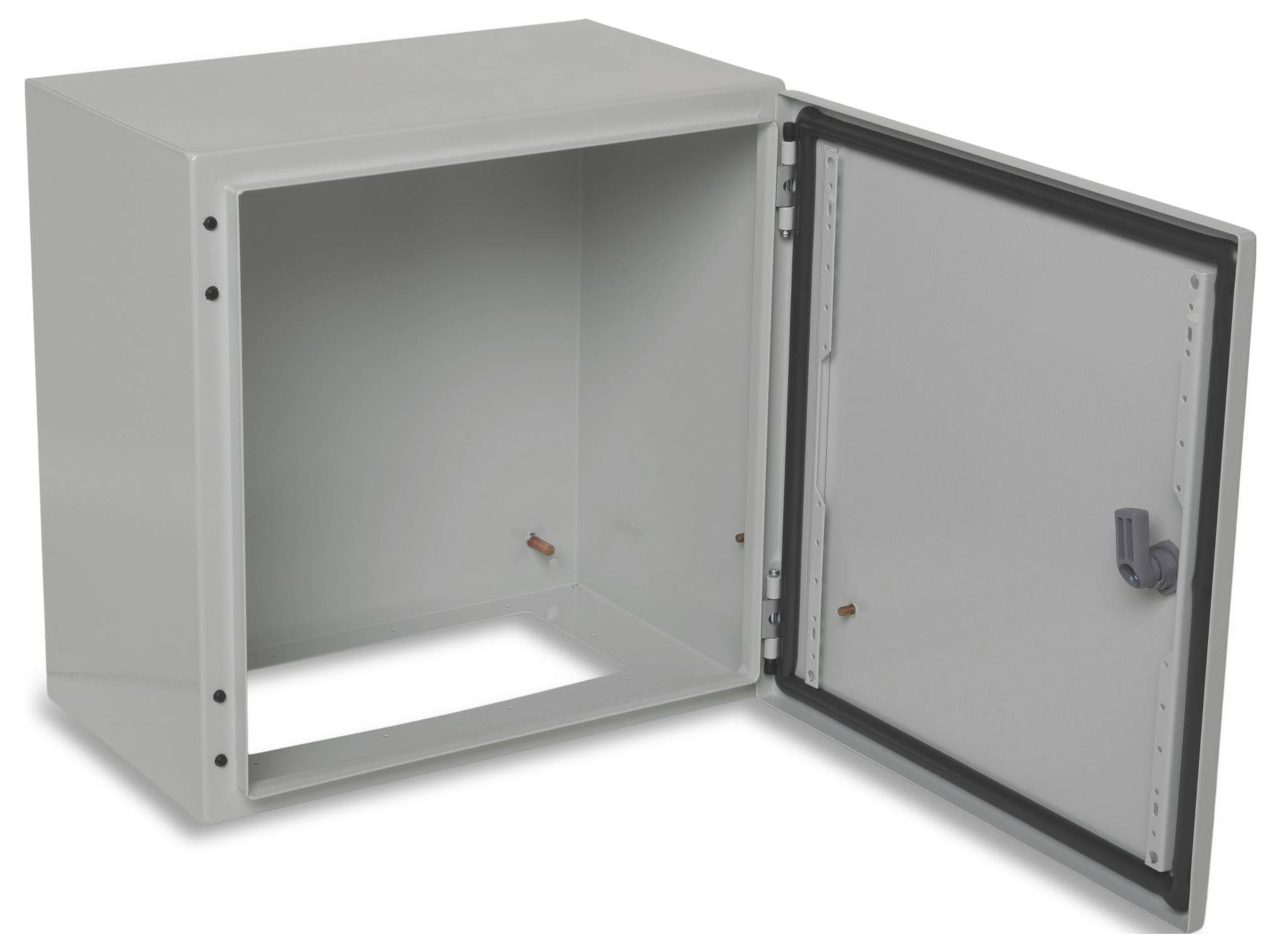

An open, empty metal enclosure with a door that opens to the right. The box is suitable for mounting electronic components.

1/3

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

400 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 1-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 354 x 354 x 229
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: Double sided ward

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 400 mm

Width: 400 mm

Height: 250 mm

Dimensions: 354 x 354 x 229 mm

Weight: 10.5 kg

Content: 1 pc(s)

Type: Treva grau 400400250

Dim: (L x W x H) 400 x 400 x 250 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB404025-T01

Depth: 250 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404556 Boxexpert Treva grau 400400250 Wall-mount enclosure 400 x 400 x 250 x 250 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404556 Boxexpert Treva grau 400400250 Wall-mount enclosure 400 x 400 x 250 x 250 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series from BOXEXPERT offers long-lasting and cost-efficient steel cabinet housings. The UV resistant polyester coating makes it Ideal suitable for outdoor use. Thanks to pre-drilled holes, the wall mounting is easy, while the mounting plate enables a simple component mounting. The flexible design permits an adaptation to specific installation requirements. The housings are used in power distribution and conversion in industry.
