Name: Boxexpert Treva grau 500300150 Wall-mount enclosure 300 x 500 x 150 x 150 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404557

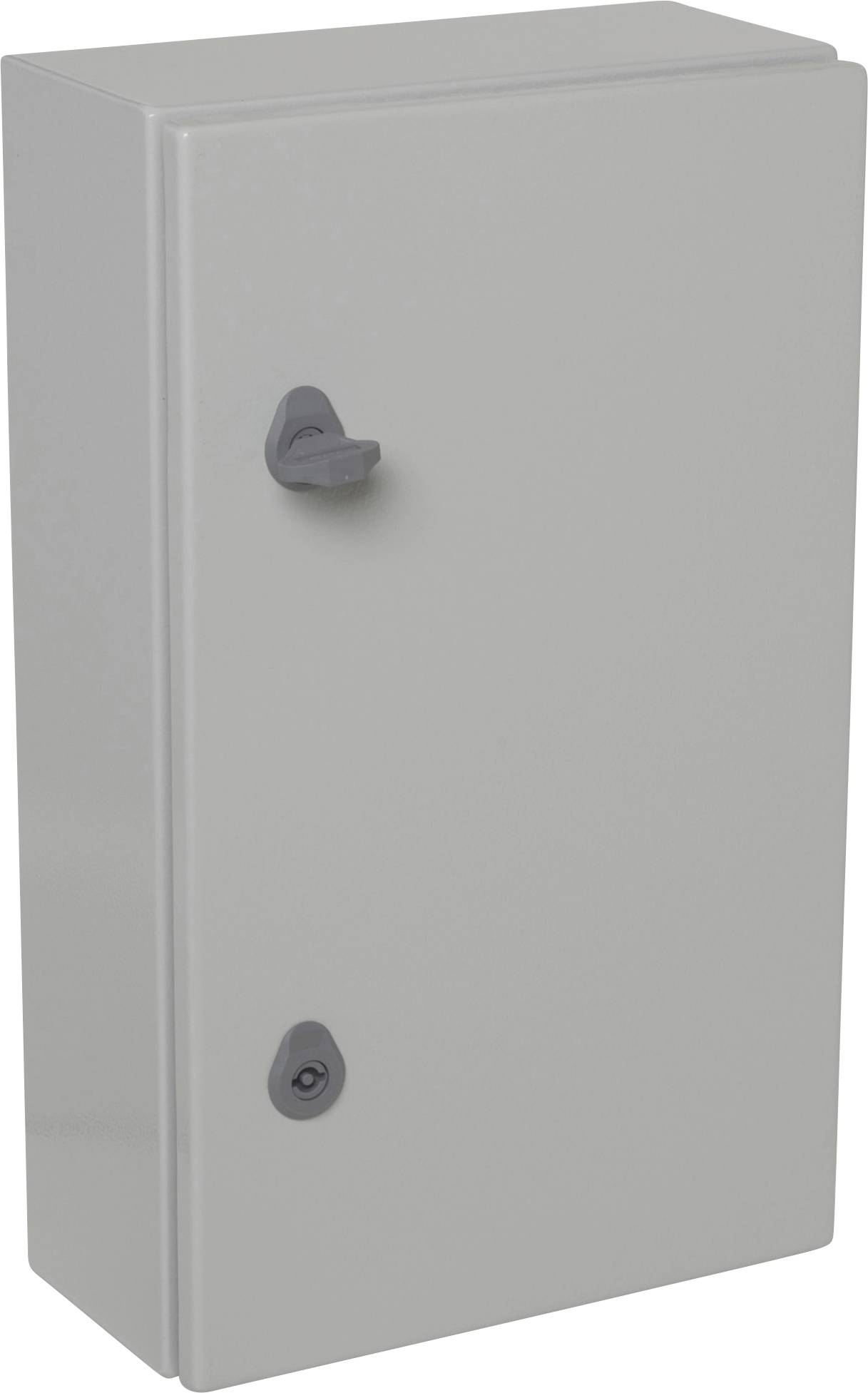

A grey metal box with two handles on the front. Possibly a fuse box or an electrical cabinet.

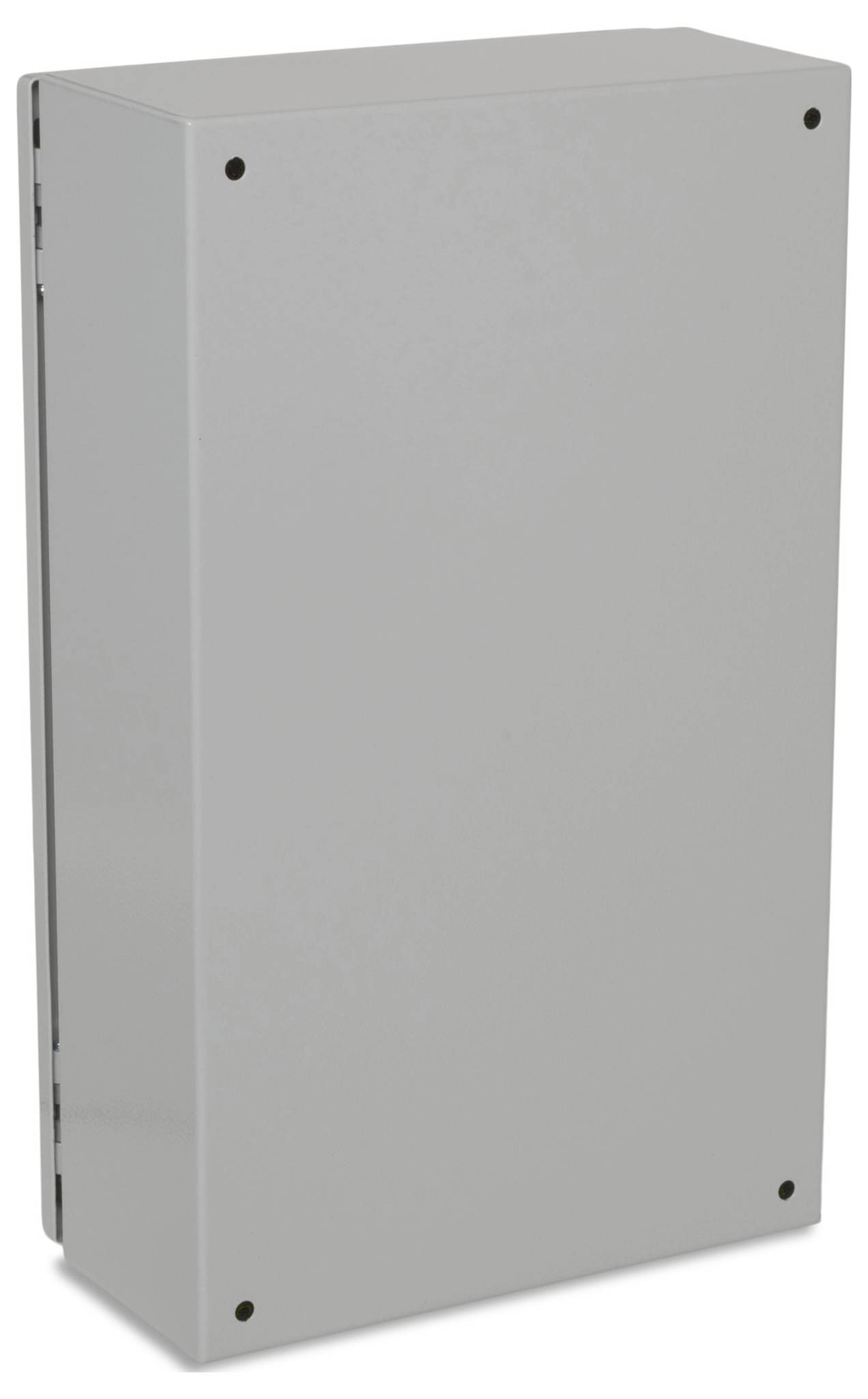

Grey, rectangular, vertically standing enclosure with four screws at the corners, suitable for storage or electronics.

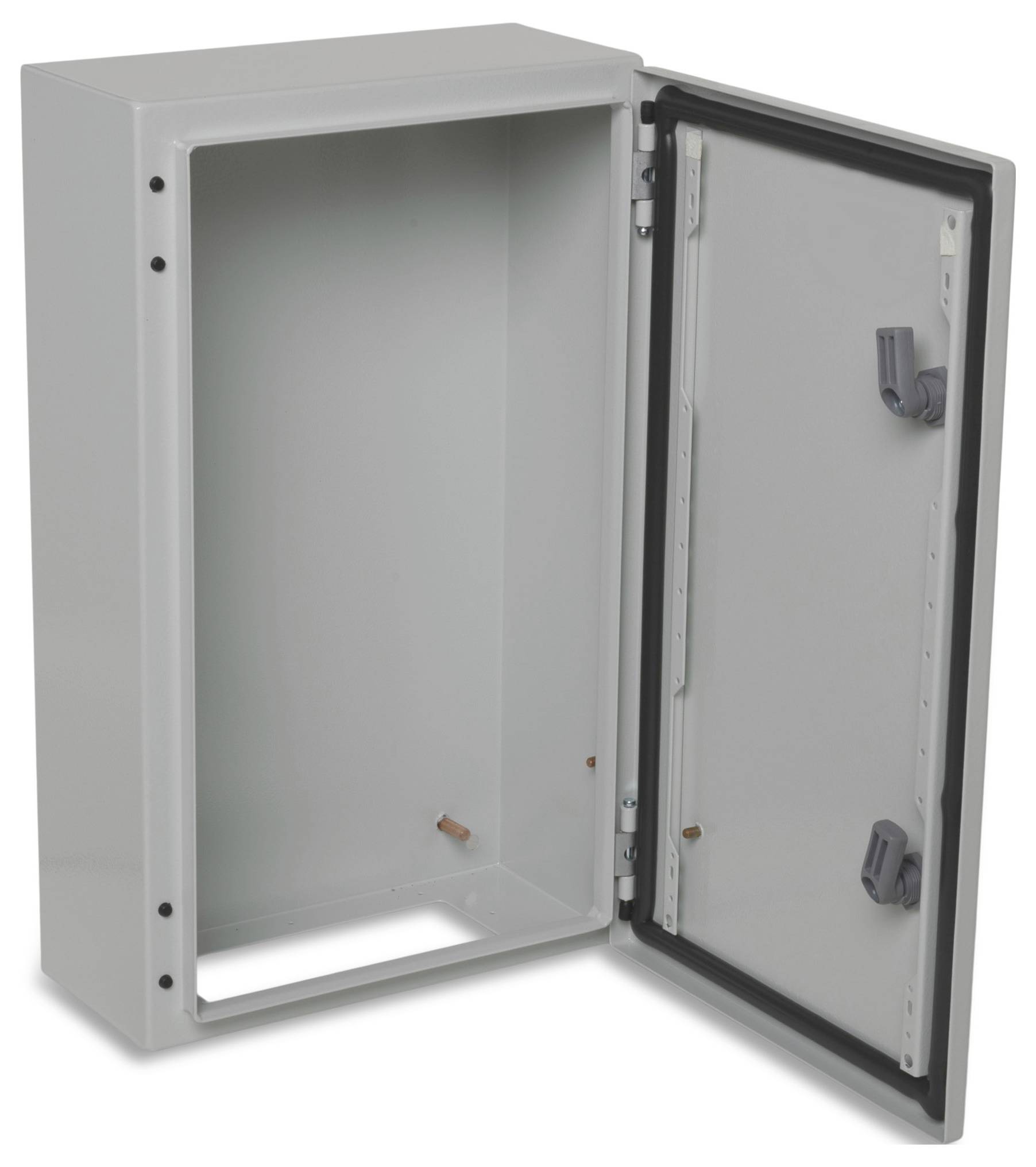

Metallic consumer unit, opened, showing empty interior and rubber seal on the door. Suitable for electrical component installation.

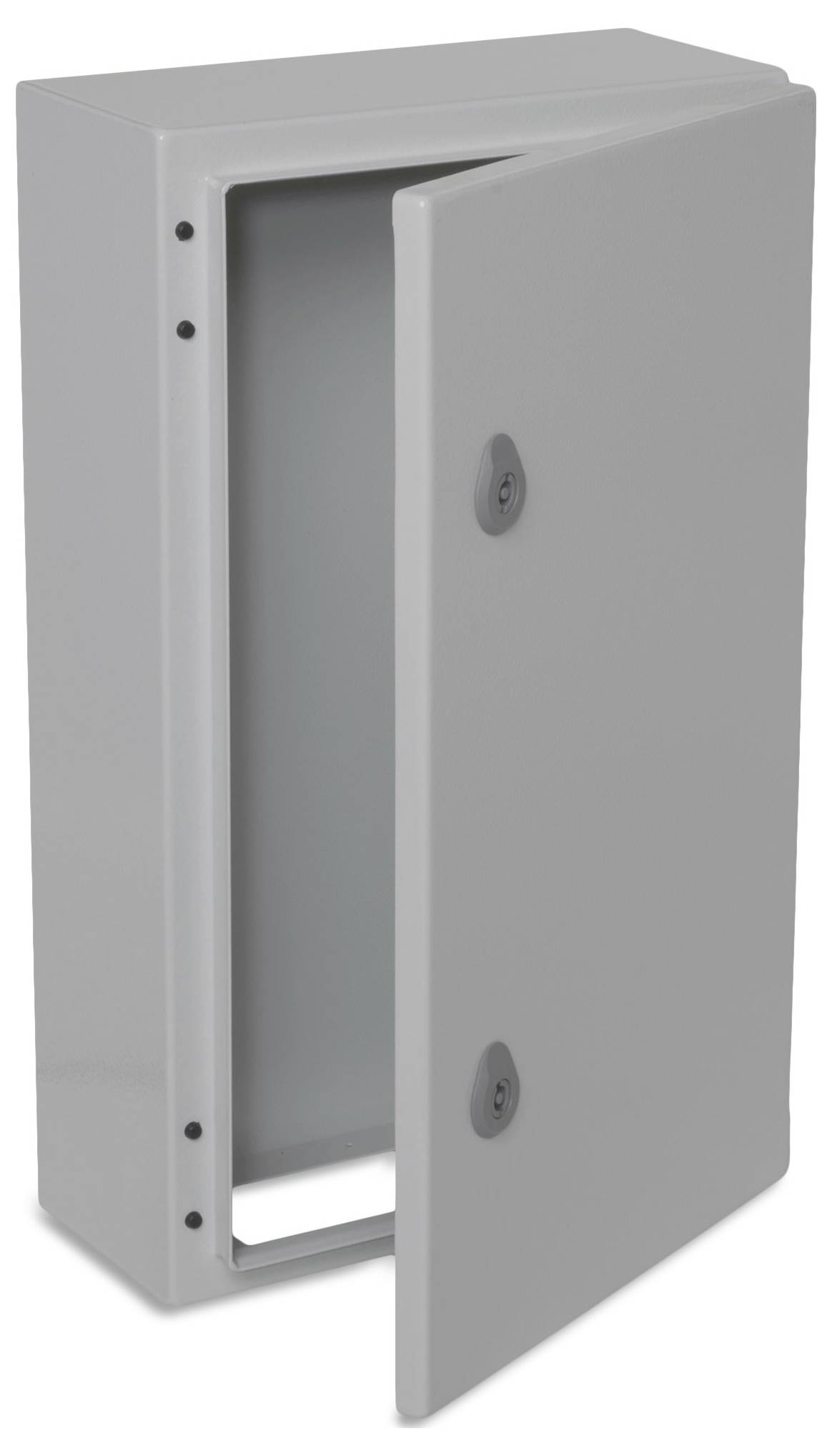

Grey metal filing cabinet with an open door. Cabinet shows no contents, door has two handles.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 454 x 254 x 129
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: with mounting hole

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 300 mm

Width: 500 mm

Height: 150 mm

Weight: 8.29 kg

Content: 1 pc(s)

Type: Treva grau 500300150

Dim: (L x W x H) 300 x 500 x 150 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB503015-T01

Depth: 150 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404557 Boxexpert Treva grau 500300150 Wall-mount enclosure 300 x 500 x 150 x 150 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404557 Boxexpert Treva grau 500300150 Wall-mount enclosure 300 x 500 x 150 x 150 Steel plate Light grey 1 pc(s) Piece

Description

BOXEXPERTS Treva series includes high-quality steel sheet wall cabinets with robust polyester coating and UV protection, making them suitable for outdoor use. Four pre-punched holes make it easy to mount on the wall and a smooth mounting plate allows components to be securely fastened. Thanks to its flexible design, they can be individually adapted to installation requirements. Areas of application are power distribution, feeding and conversion of electrical energy.
