Name: Boxexpert Treva grau 500300200 Wall-mount enclosure 300 x 500 x 200 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404558

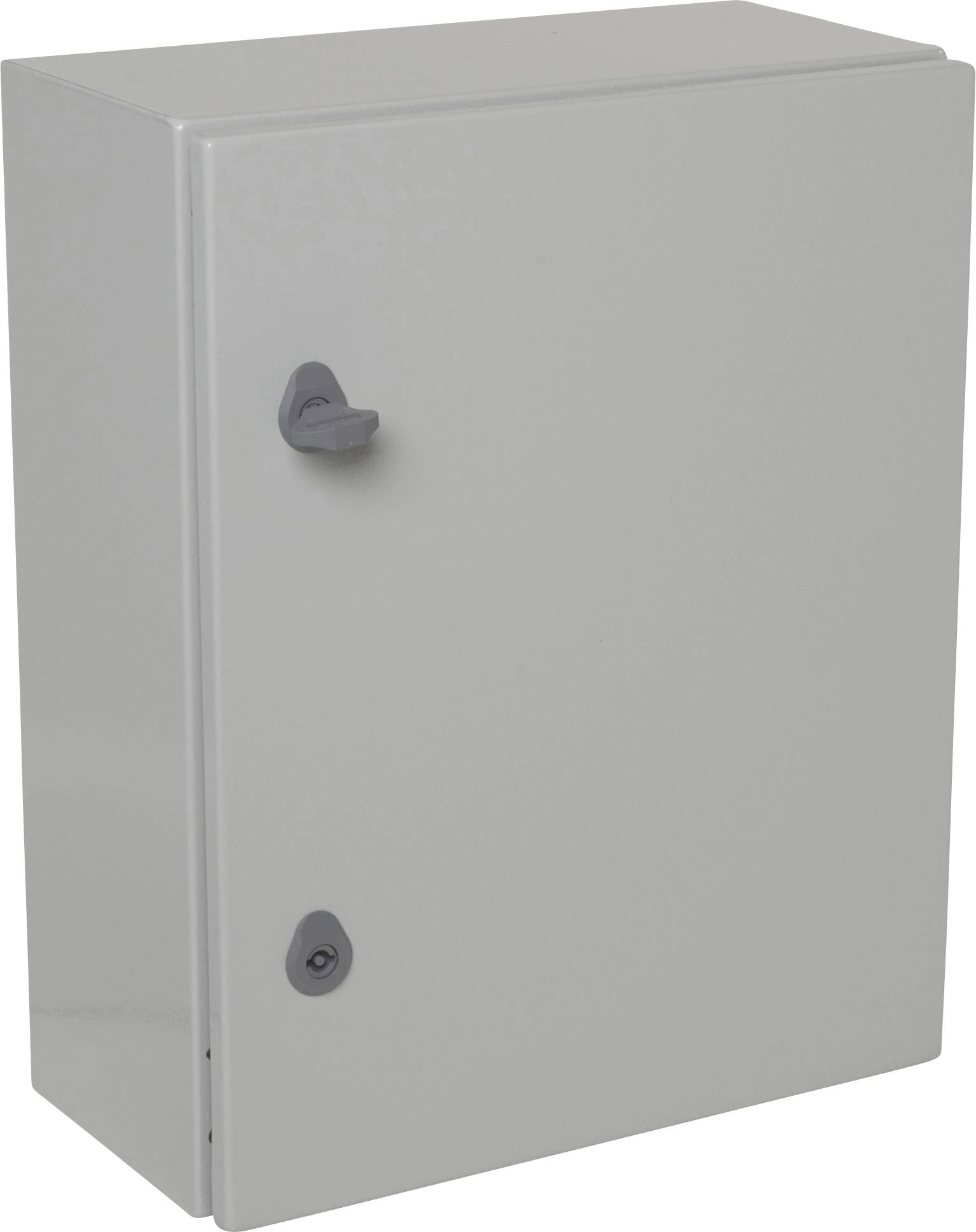

Grey electrical switchboard with two handles, rectangular shape.

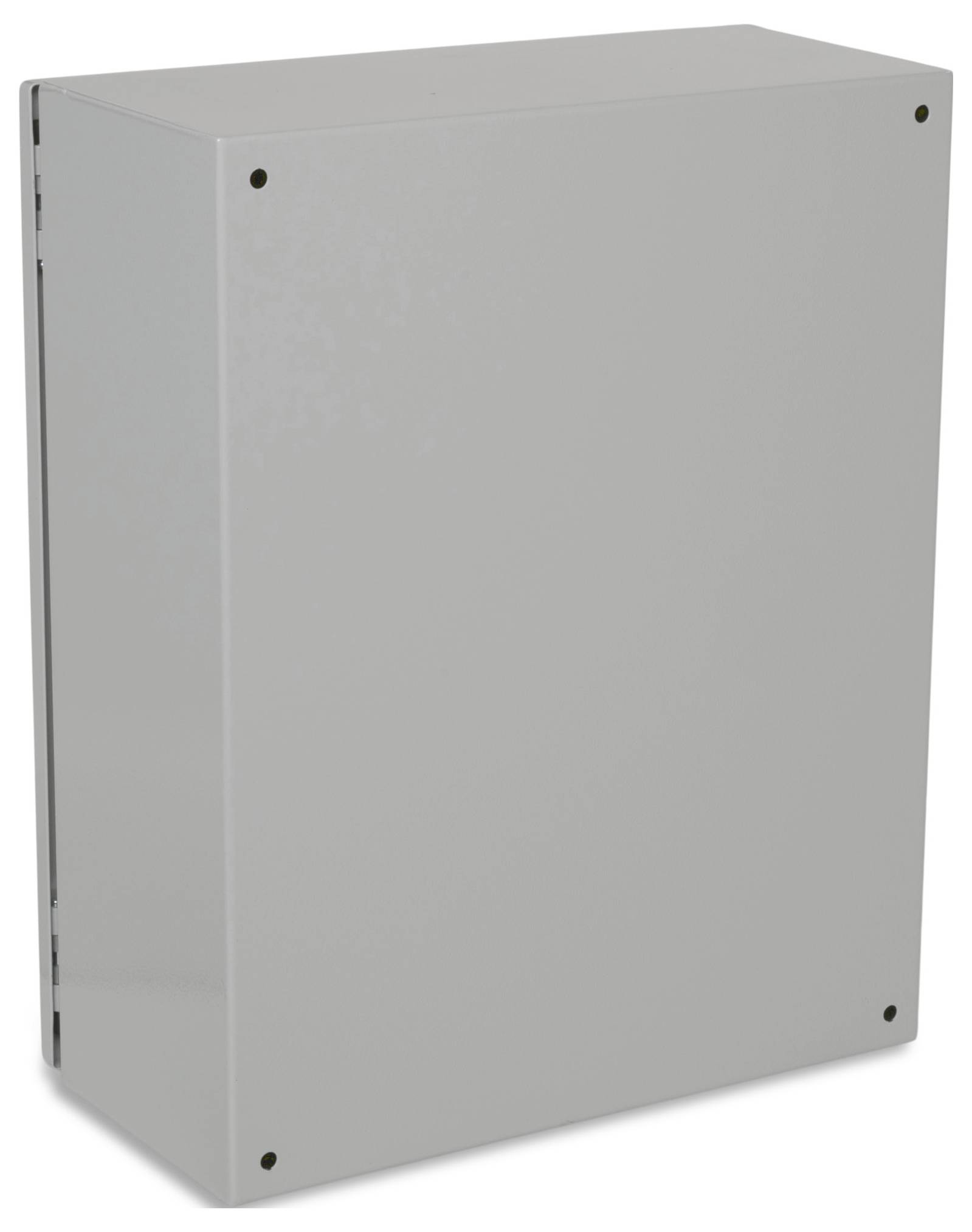

A rectangular, grey metal box with four screws at the corners.

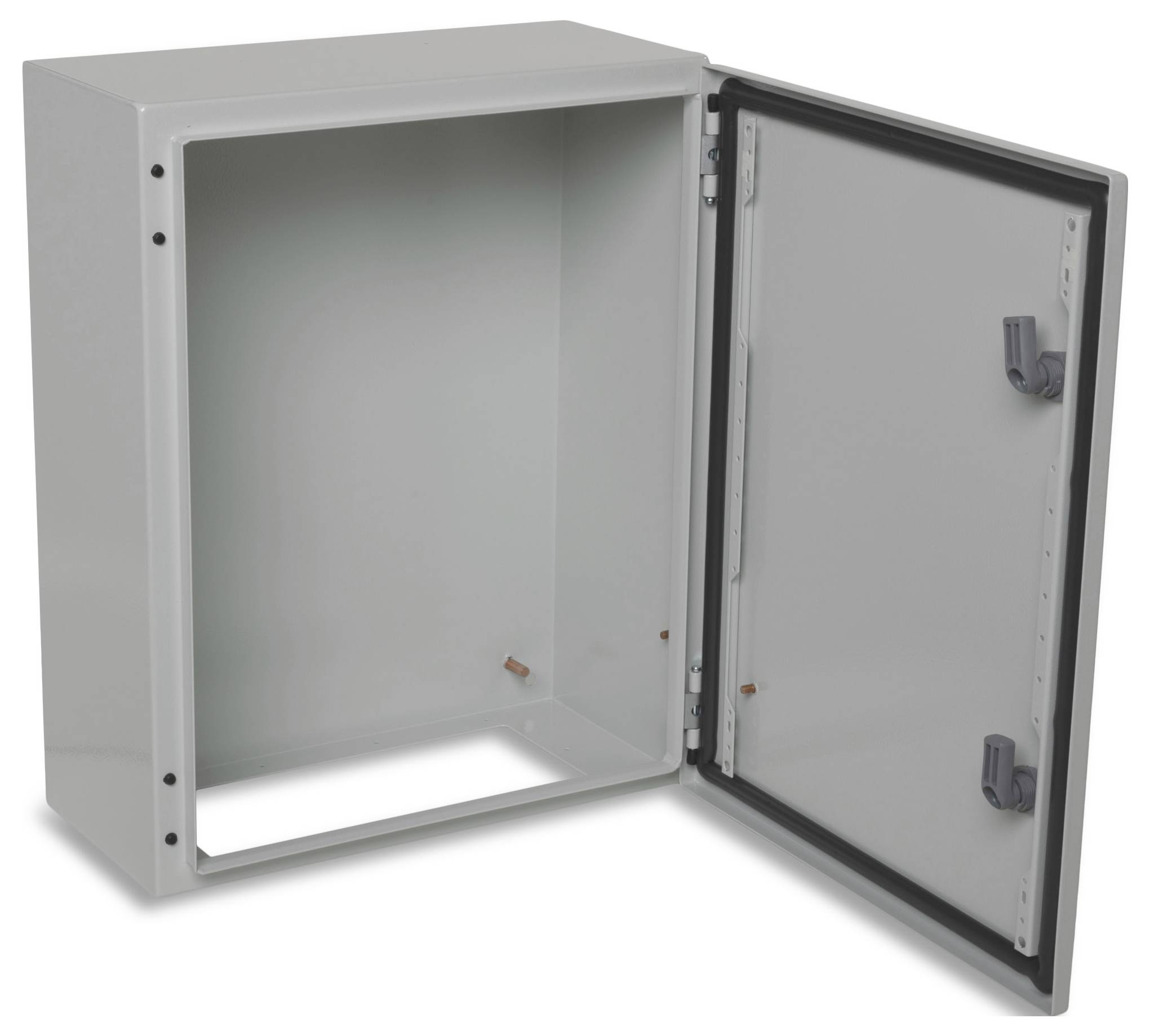

Metal enclosure with an open door, revealing an empty interior. Suitable for secure storage or wiring of electrical components.

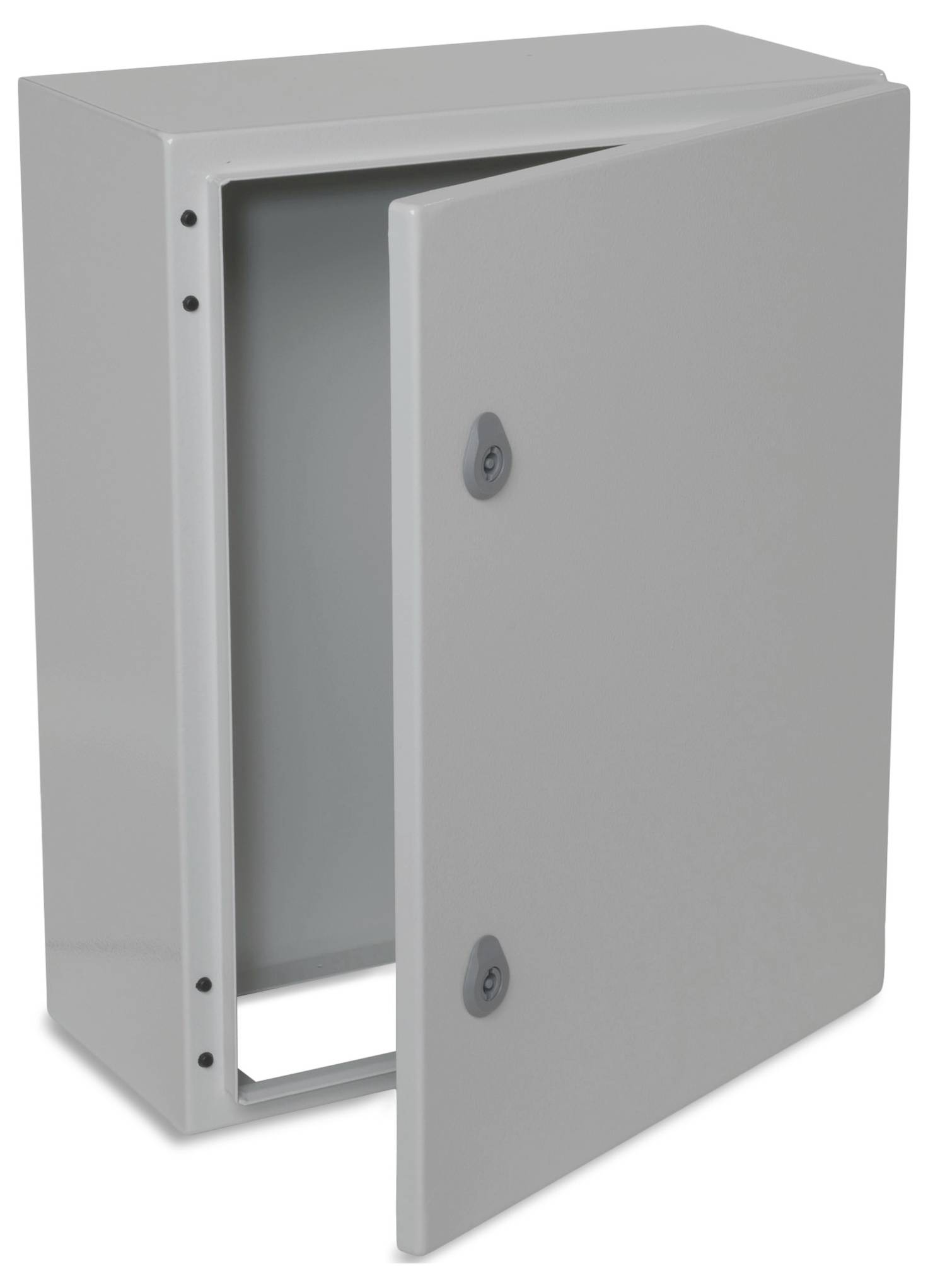

Grey metal cabinet with its door open, showing two grey handles.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 454 x 254 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: UV-resistant

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 300 mm

Width: 500 mm

Height: 200 mm

Weight: 9.2 kg

Content: 1 pc(s)

Type: Treva grau 500300200

Dim: (L x W x H) 300 x 500 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB503020-T01

Depth: 200 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404558 Boxexpert Treva grau 500300200 Wall-mount enclosure 300 x 500 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404558 Boxexpert Treva grau 500300200 Wall-mount enclosure 300 x 500 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series wall cabinets from BOXEXPERT are made of sturdy, low-cost steel sheet and are ideally suited for outdoor use thanks to their UV-resistant polyester coating. The installation is very easy thanks to the pre-drilled holes and a smooth mounting plate. Its flexible design allows it to be adapted to different installation conditions. The main areas of application are power distribution, feed and conversion in industrial applications.

This text is machine translated.
