Name: Boxexpert Treva grau 500400150 Wall-mount enclosure 400 x 500 x 150 x 150 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404559

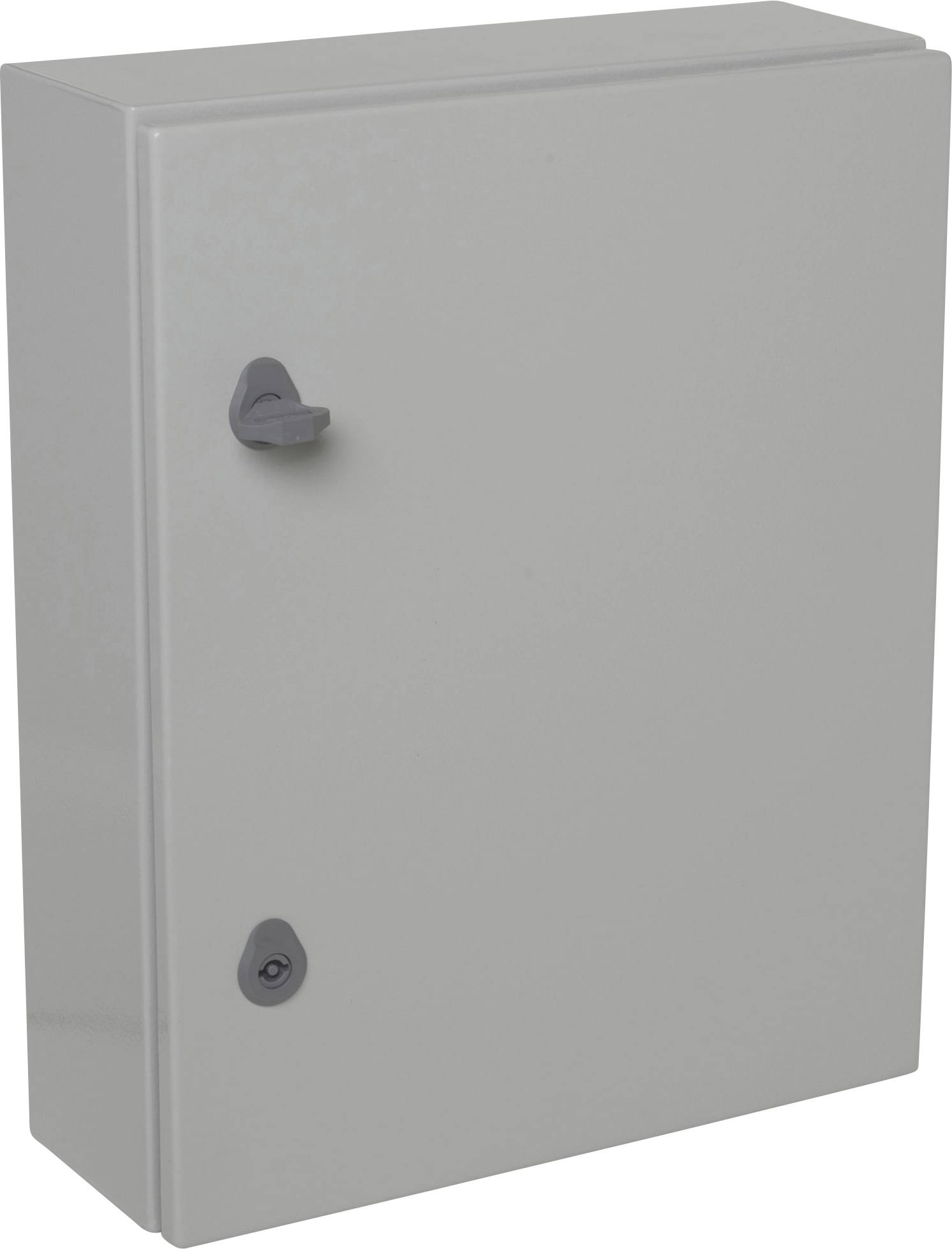

Grey metal cabinet with two handles on the front. Likely a fuse box or distribution board for wall mounting.

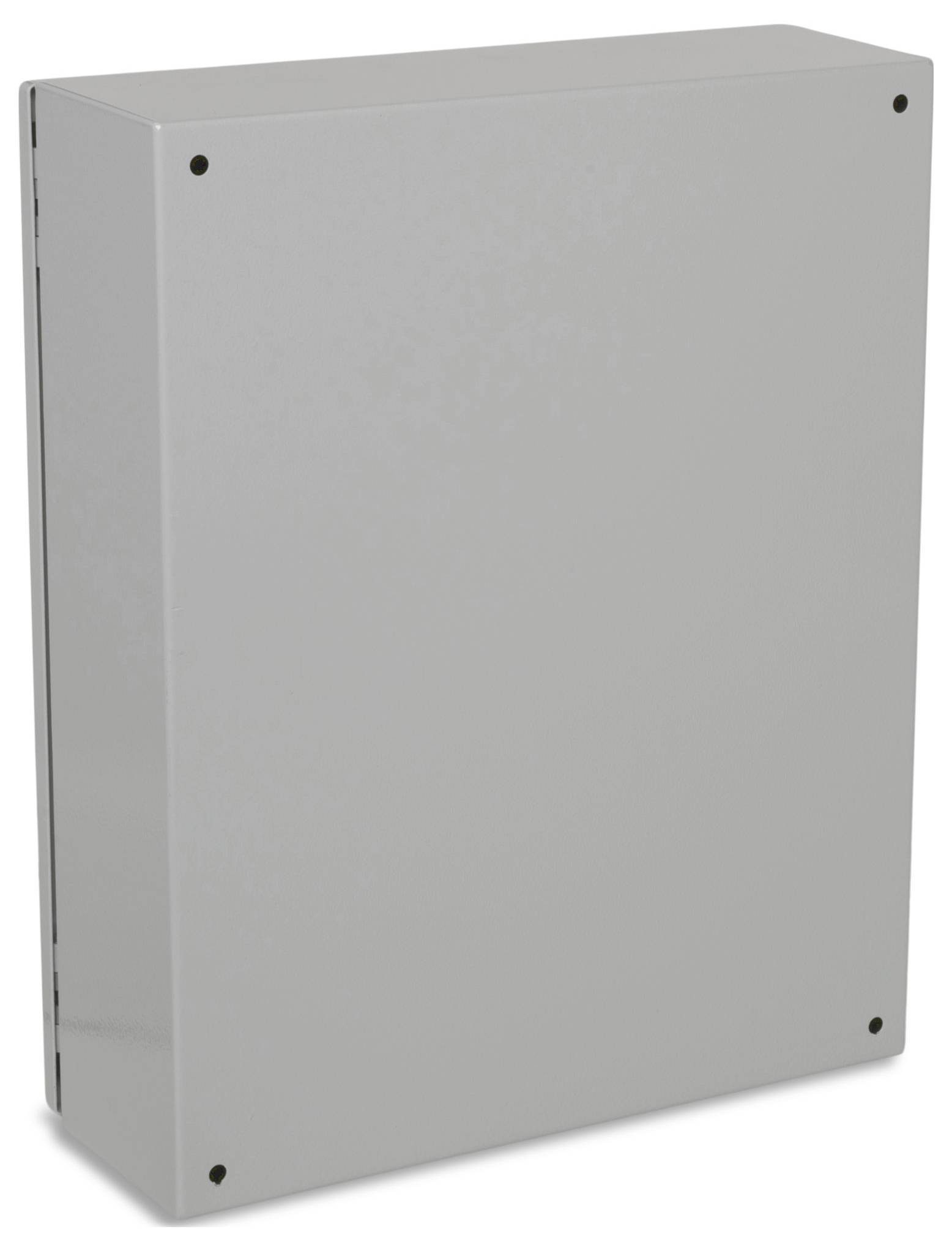

Grey-painted metal box, rectangular, with rounded edges and screws at the corners, standing upright on one side.

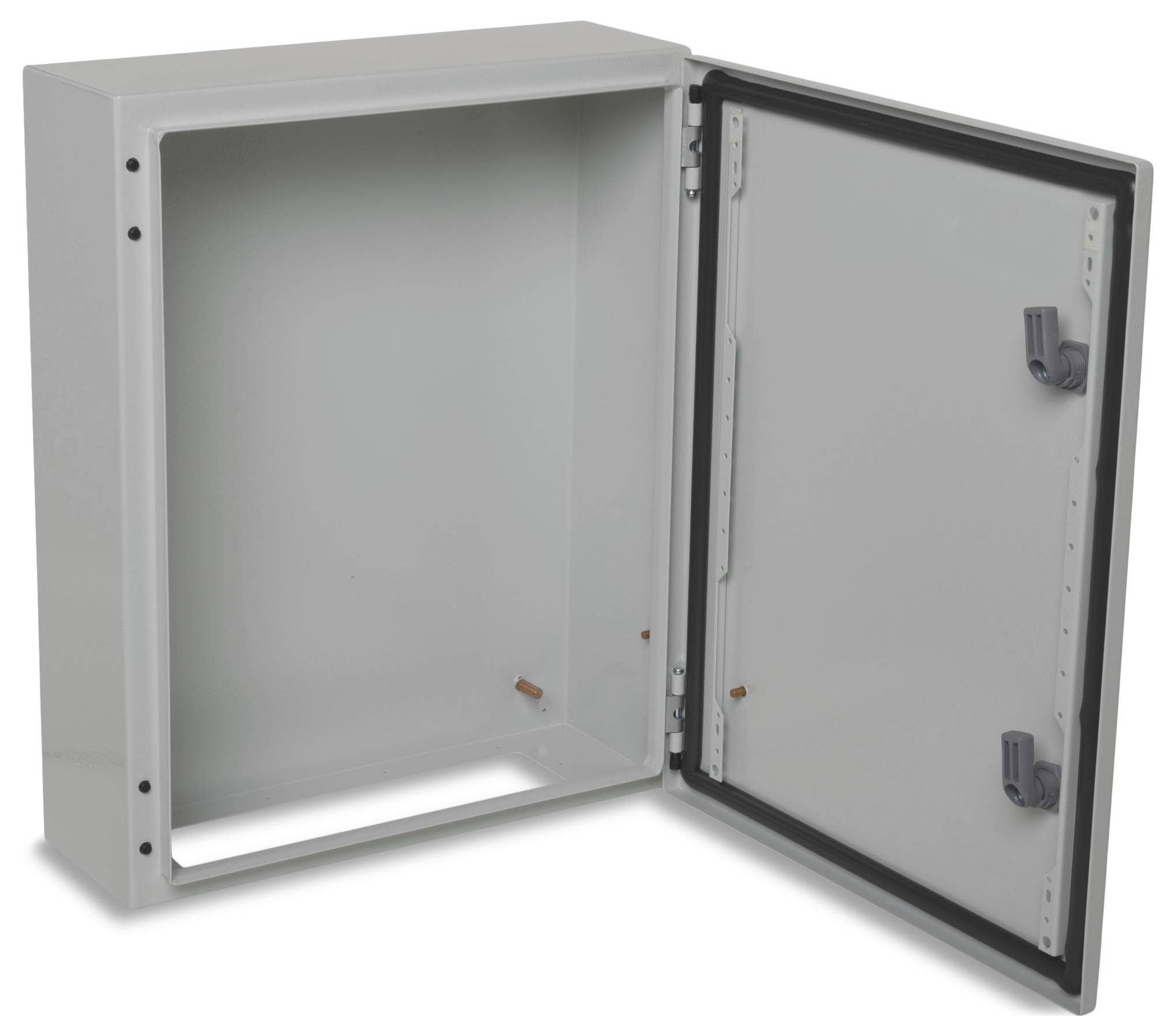

An open, empty metal cabinet with a door, shown at an angle to reveal its interior. Suitable for technical installations.

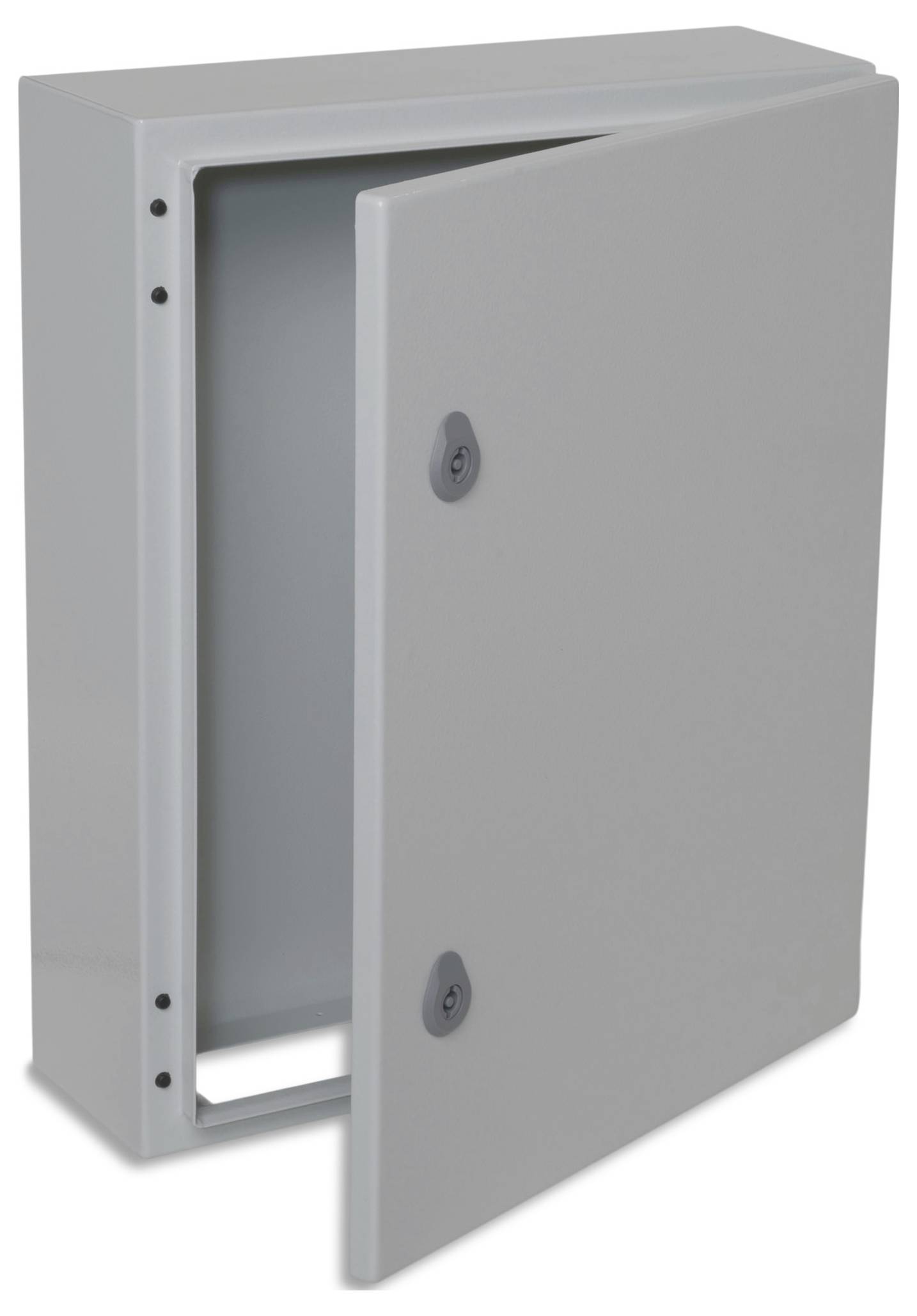

A half-open grey metal cabinet with clean lines and two buttons on the front, with no visible labelling.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 454 x 354 x 129
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: wallmount option

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 400 mm

Width: 500 mm

Height (min.): 500 mm

Height: 150 mm

Weight: 10.5 kg

Content: 1 pc(s)

Type: Treva grau 500400150

Dim: (L x W x H) 400 x 500 x 150 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB504015-T01

Depth: 150 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404559 Boxexpert Treva grau 500400150 Wall-mount enclosure 400 x 500 x 150 x 150 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404559 Boxexpert Treva grau 500400150 Wall-mount enclosure 400 x 500 x 150 x 150 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series from BOXEXPERT is a combination of quality and economy. These steel wall cabinets have a robust, UV-resistant polyester coating and are perfect for outdoor use. Four pre-punched holes make it easy to mount the lights on the wall, while a smooth mounting plate enables component mounting. The flexible design allows them to be customized to suit installation requirements.
