Name: Boxexpert Treva grau 500400200 Wall-mount enclosure 400 x 500 x 200 x 179 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404560

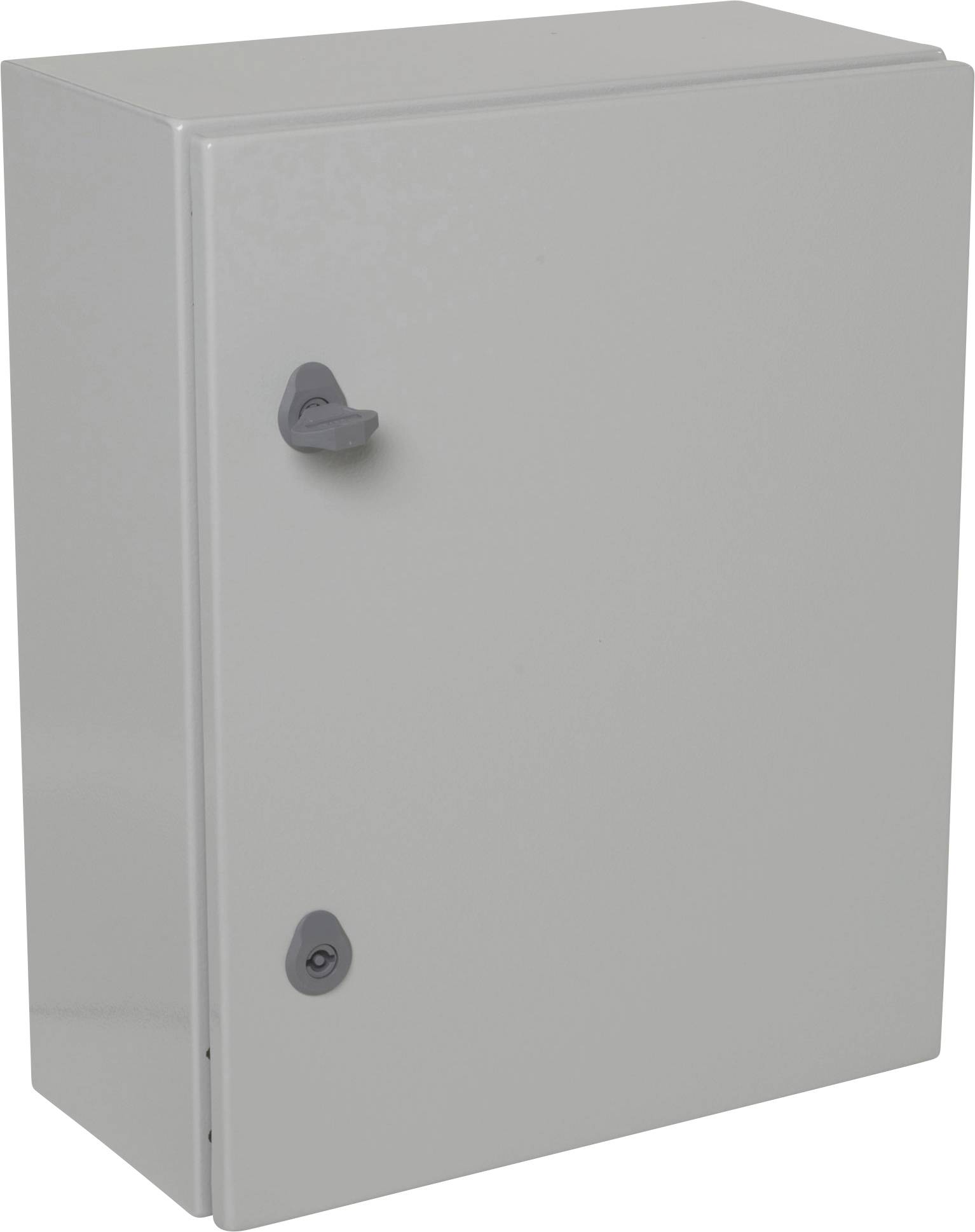

Grey, rectangular metal box with two grey fasteners on the front.

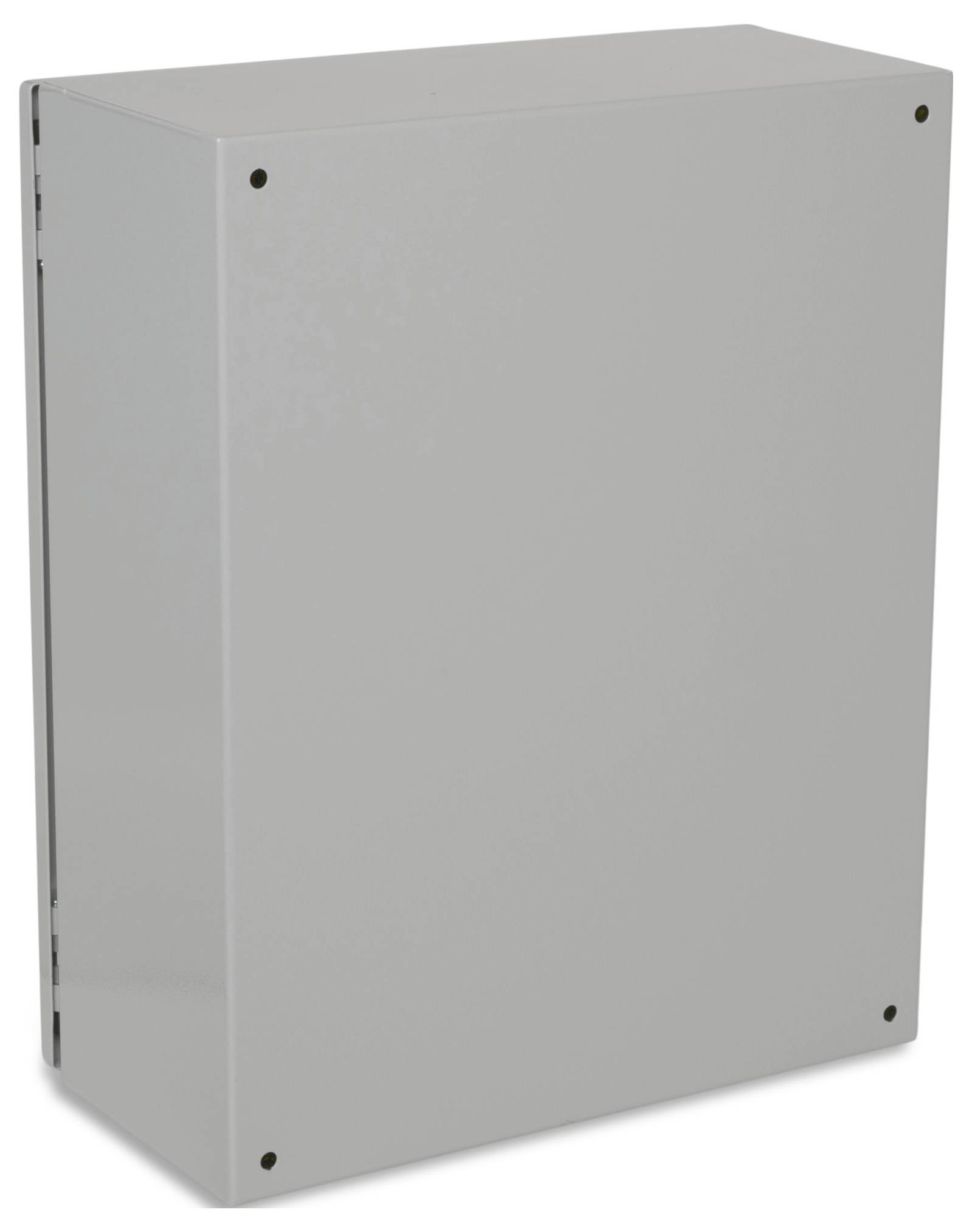

A rectangular, grey metal box with screw holes at the corners, possibly an electrical enclosure or a control panel.

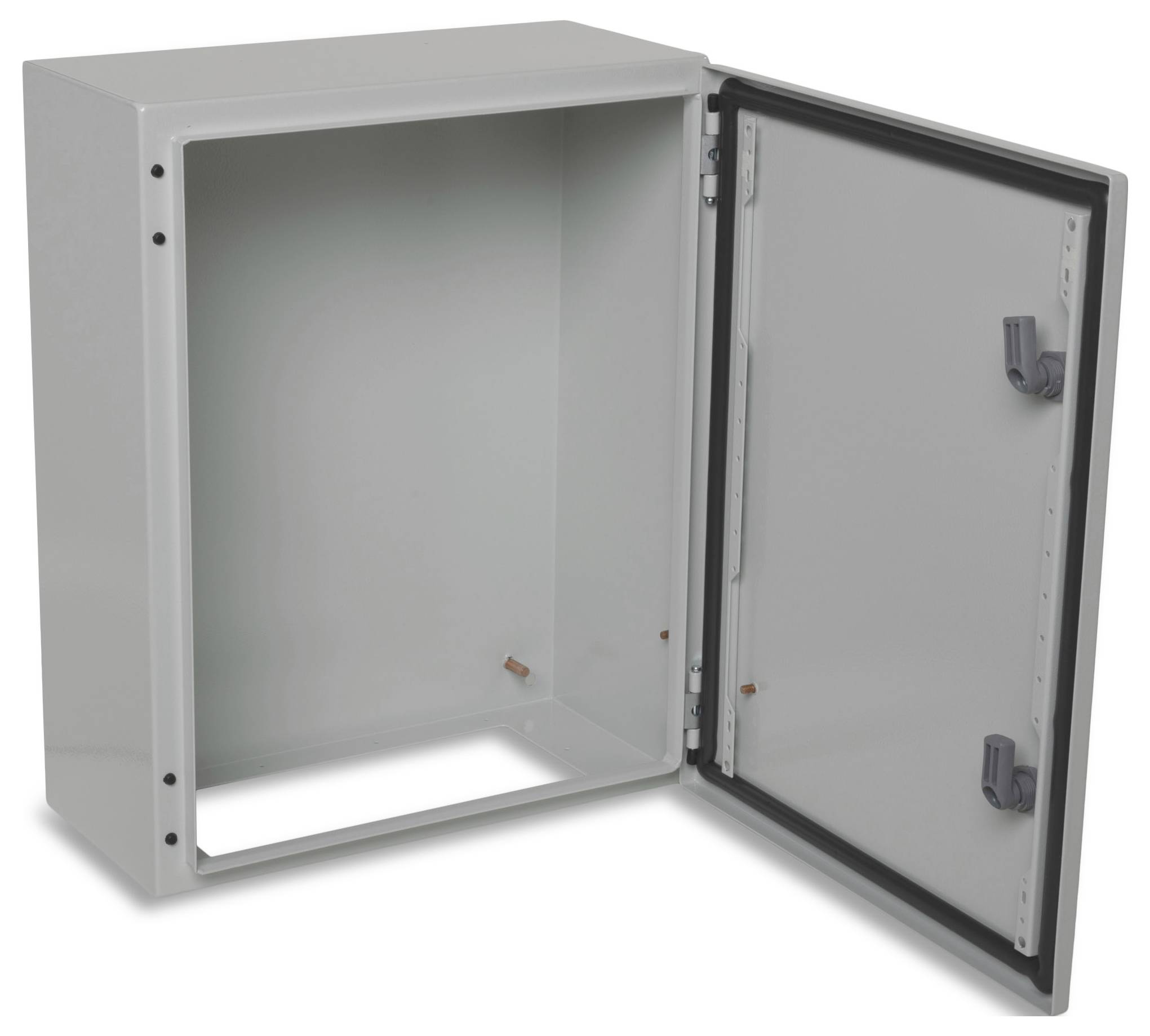

Metal electrical enclosure with an open door. The interior surface is empty and shows mounting points on the sides. The enclosure is grey.

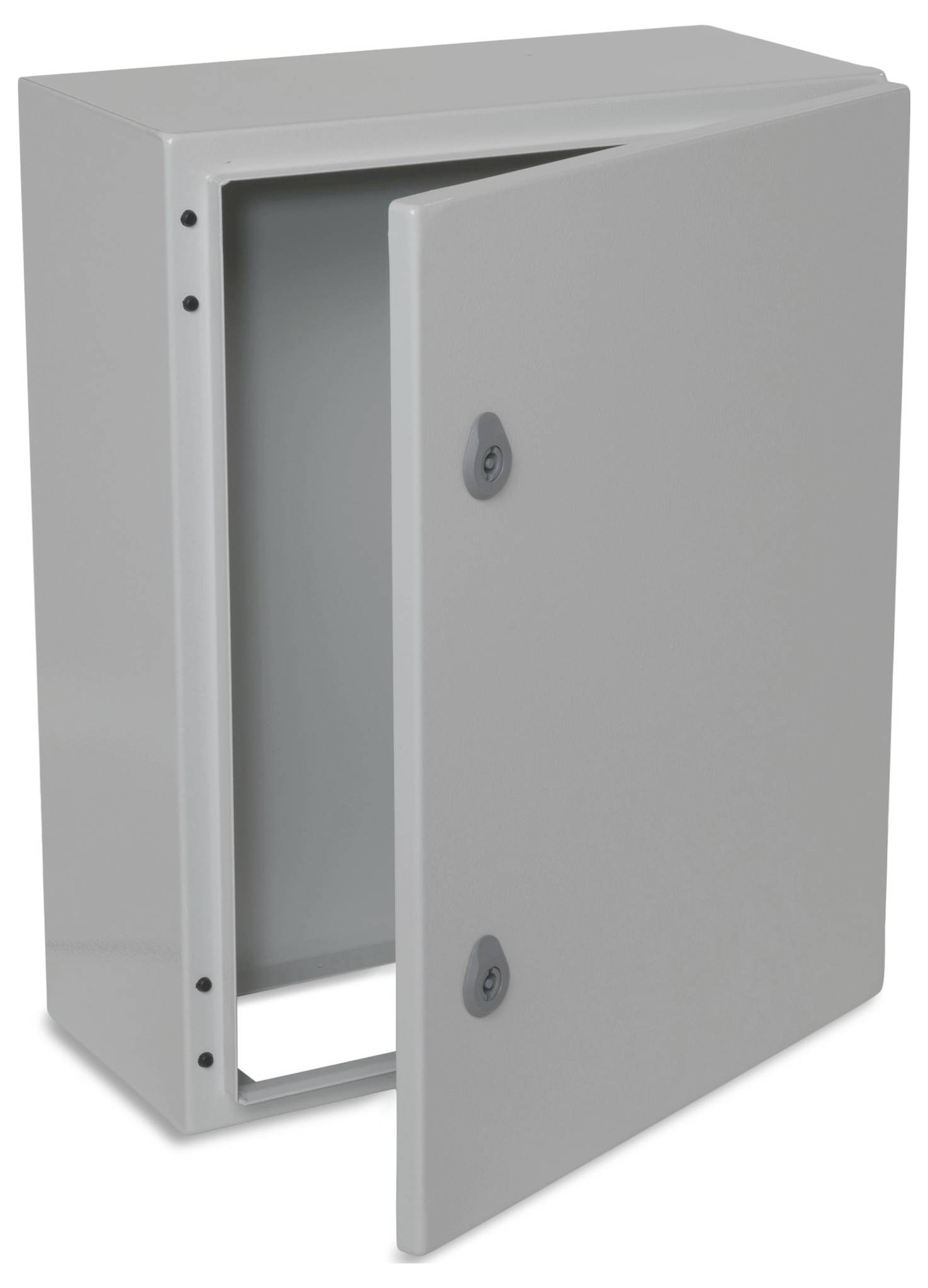

Metal electrical cabinet with open door showing interior. Suitable for protecting electrical components in industrial applications.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 454 x 354 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: UV-resistant

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 400 mm

Width: 500 mm

Height (min.): 454 mm

Height: 200 mm

Weight: 11.3 kg

Content: 1 pc(s)

Type: Treva grau 500400200

Dim: (L x W x H) 400 x 500 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB504020-T01

Depth: 179 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404560 Boxexpert Treva grau 500400200 Wall-mount enclosure 400 x 500 x 200 x 179 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404560 Boxexpert Treva grau 500400200 Wall-mount enclosure 400 x 500 x 200 x 179 Steel plate Light grey 1 pc(s) Piece

Description

The BOXEXPERT Treva wall cabinet series boasts durable, cost-efficient steel sheet housings that are optimally equipped for outdoor use thanks to a UV-resistant polyester coating. Four pre-punched holes allow for quick wall mounting, while a smooth mounting plate provides secure component attachment. Thanks to high flexibility the casing adjusts itself to specific installation requirements.
