Name: Boxexpert Treva grau 500400250 Wall-mount enclosure 400 x 500 x 250 x 250 Steel plate Light grey 1 pc(s)
Brand: Boxexpert
SKU: 3404561

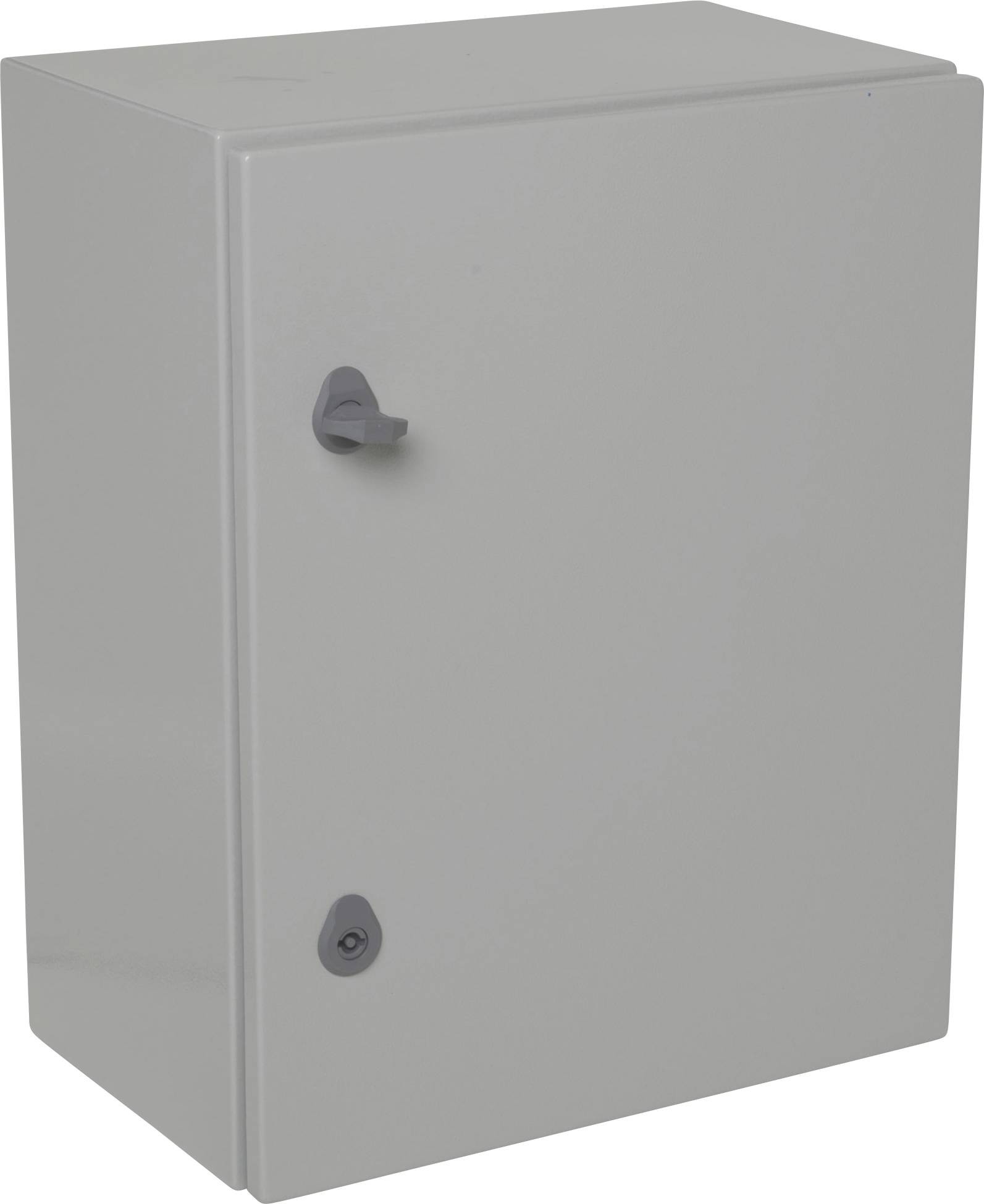

Grey, rectangular metal box with two handles, presumably for electrical or technical equipment, standing upright.

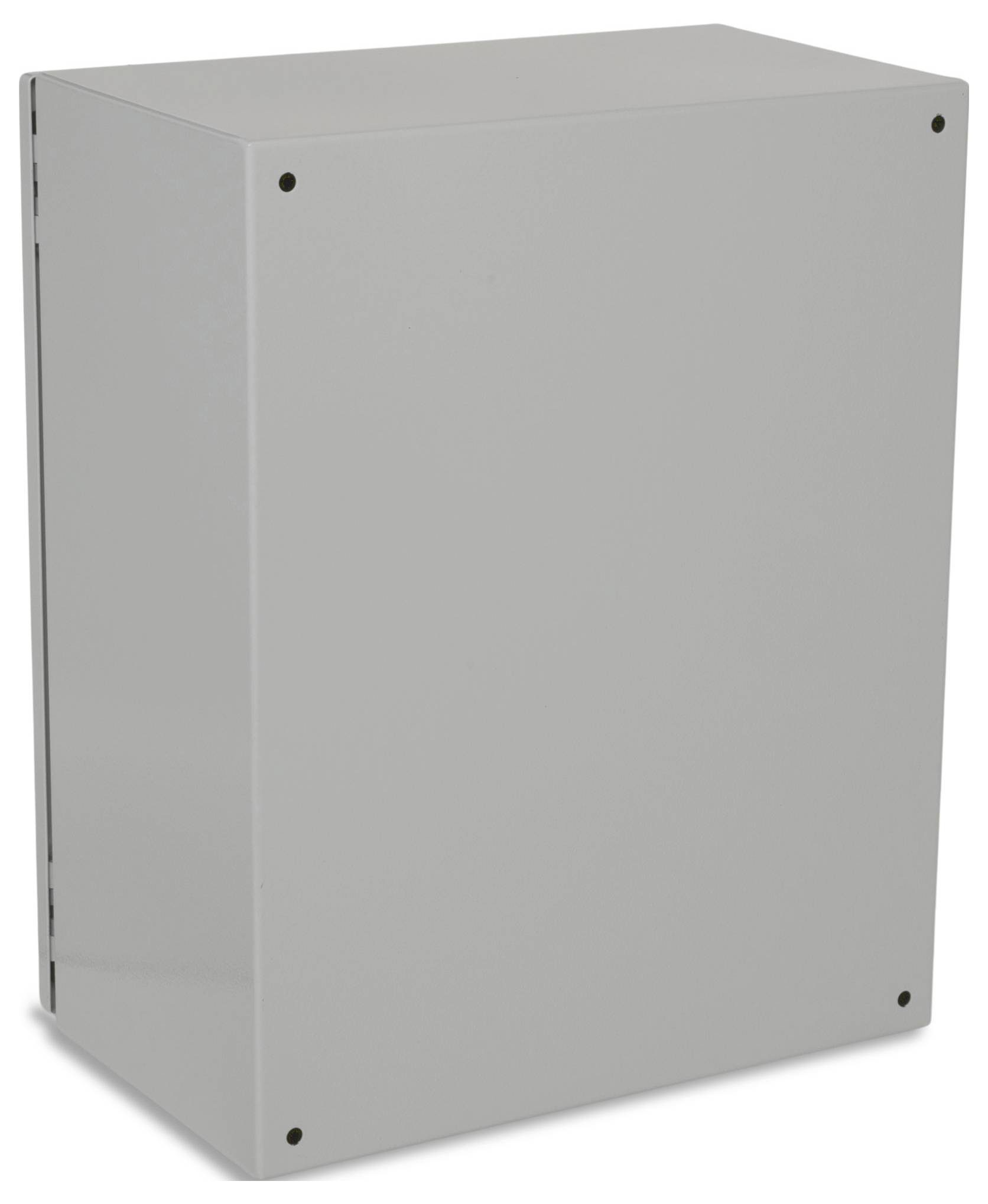

Grey, rectangular metal enclosure with a smooth surface and rounded edges, used for industrial electrical installations.

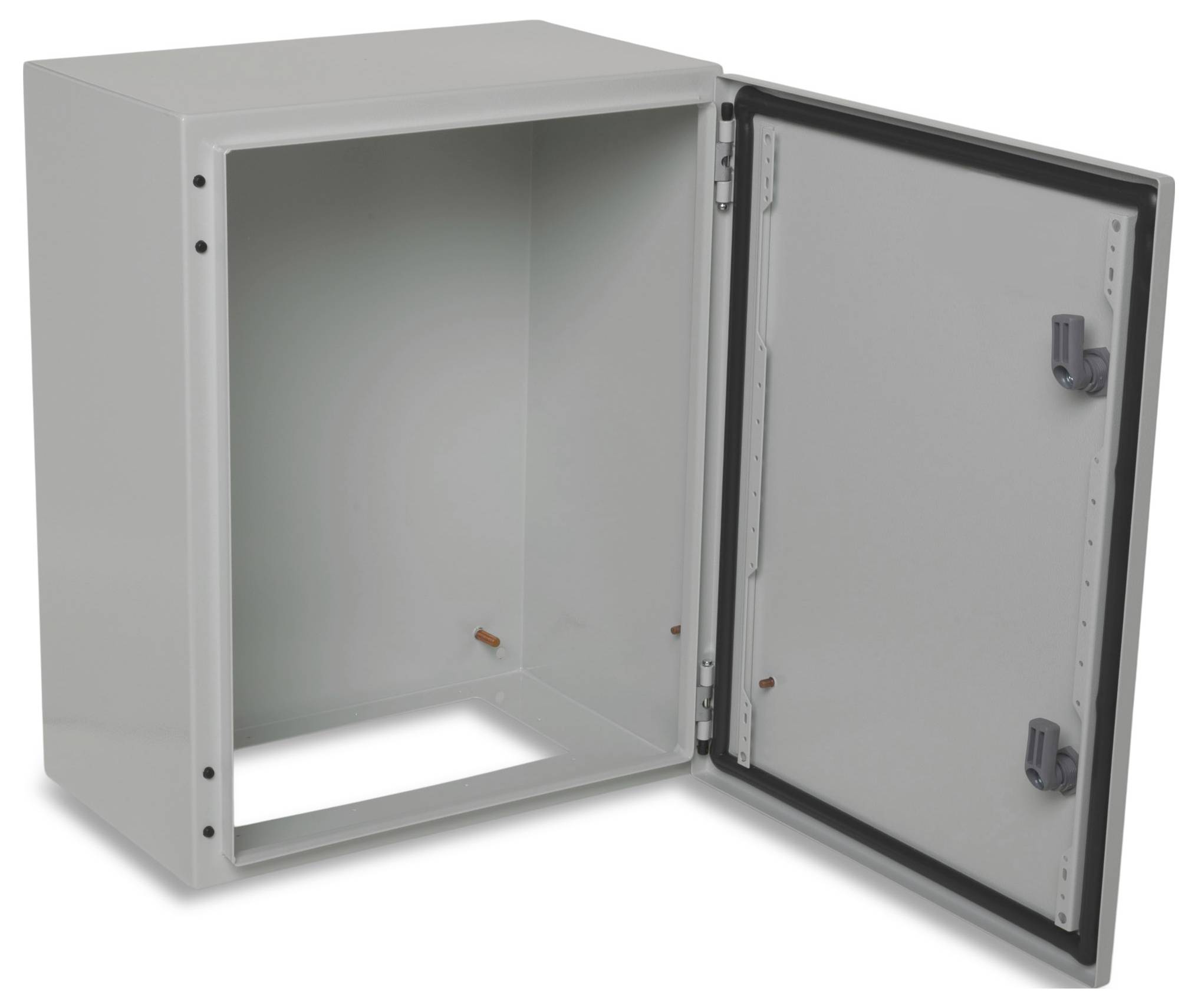

A hinged metal enclosure with hinges on the right side, suitable for industrial or electrical applications.

1/3

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

500 mm

Height

250 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 454 x 354 x 229
UL approval: No.
Impact strength: IK10

Product type: Wall-mount enclosure

Features: Double sided ward

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 400 mm

Width: 500 mm

Height: 250 mm

Dimensions: 400 x 500 x 250 mm

Weight: 11.3 kg

Content: 1 pc(s)

Type: Treva grau 500400250

Dim: (L x W x H) 400 x 500 x 250 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB504025-T01

Depth: 250 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404561 Boxexpert Treva grau 500400250 Wall-mount enclosure 400 x 500 x 250 x 250 Steel plate Light grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3404561 Boxexpert Treva grau 500400250 Wall-mount enclosure 400 x 500 x 250 x 250 Steel plate Light grey 1 pc(s)

Description

The Treva series from BOXEXPERT offers high-quality steel cabinet enclosures that are particularly weatherproof thanks to their durable polyester coating with UV protection. Pre-punched holes allow for easy wall mounting, while the smooth mounting plate allows for a flexible interior. The adaptable design enables the use in various industrial areas.
