Name: Boxexpert Treva grau 500500150 Wall-mount enclosure 500 x 500 x 150 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404563

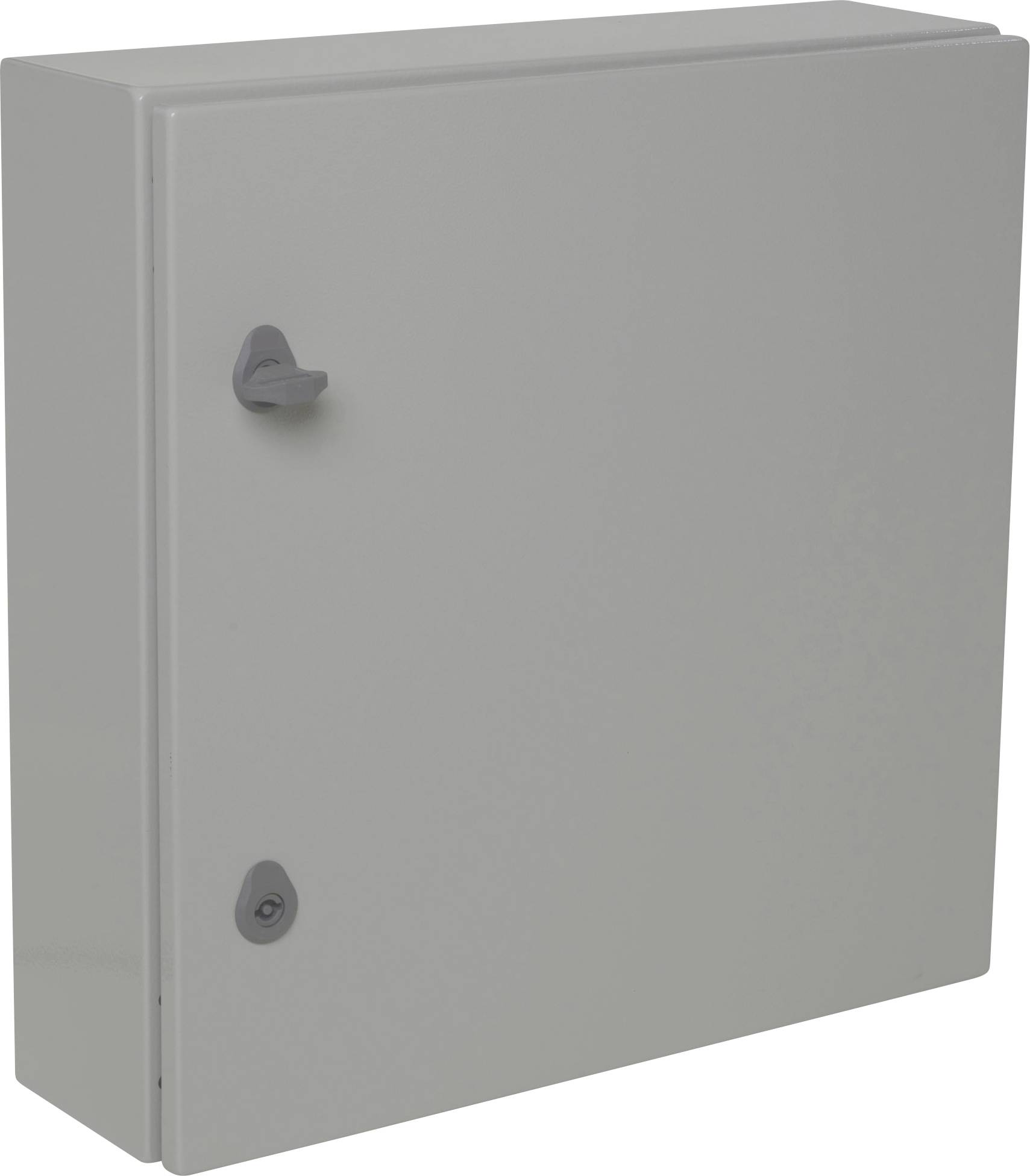

Grey metal enclosure with two grey handles, suitable as a weatherproof electrical switchbox for industrial applications.

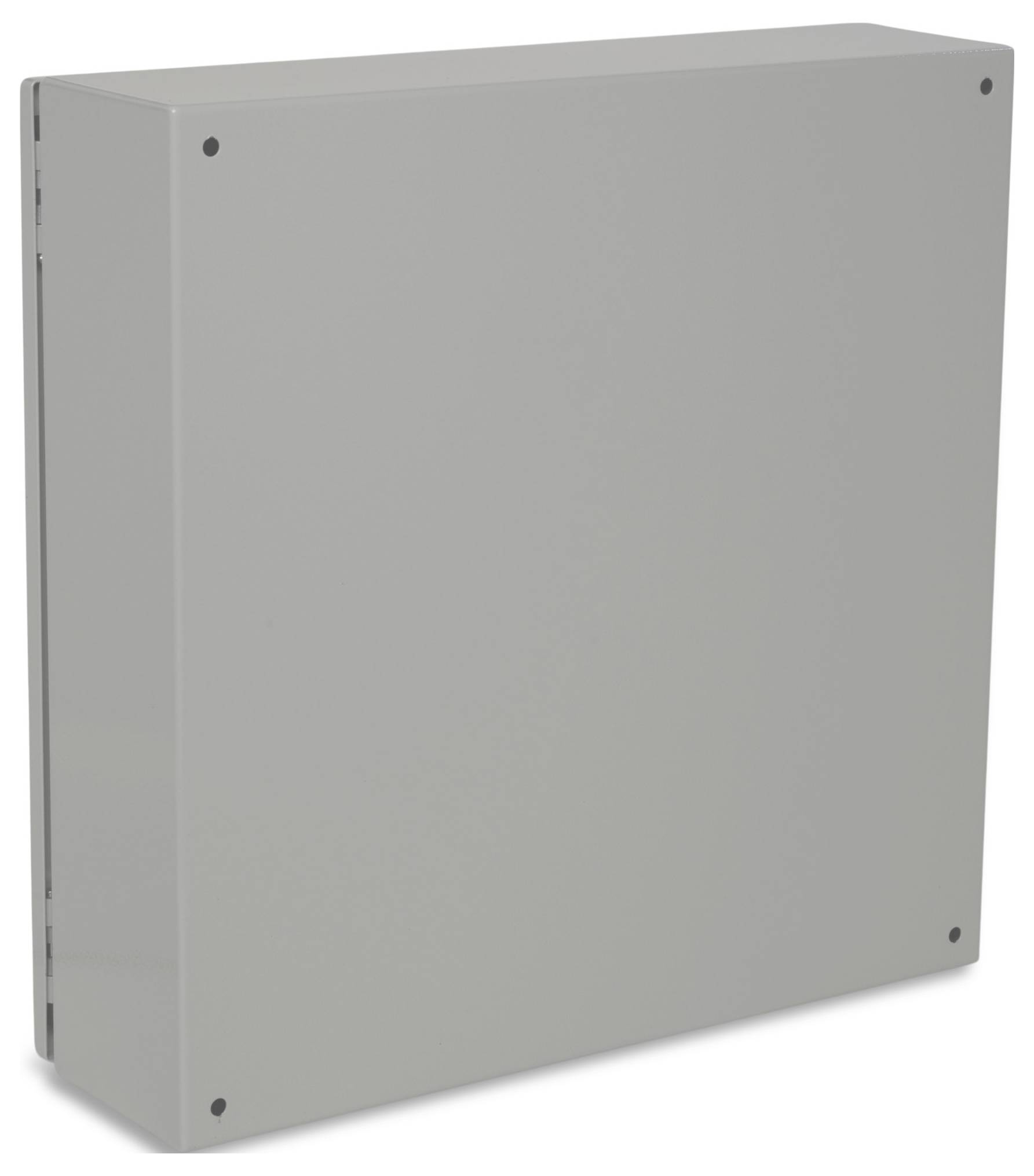

A grey, rectangular metal enclosure with a smooth surface, presumably a protective or distribution cabinet.

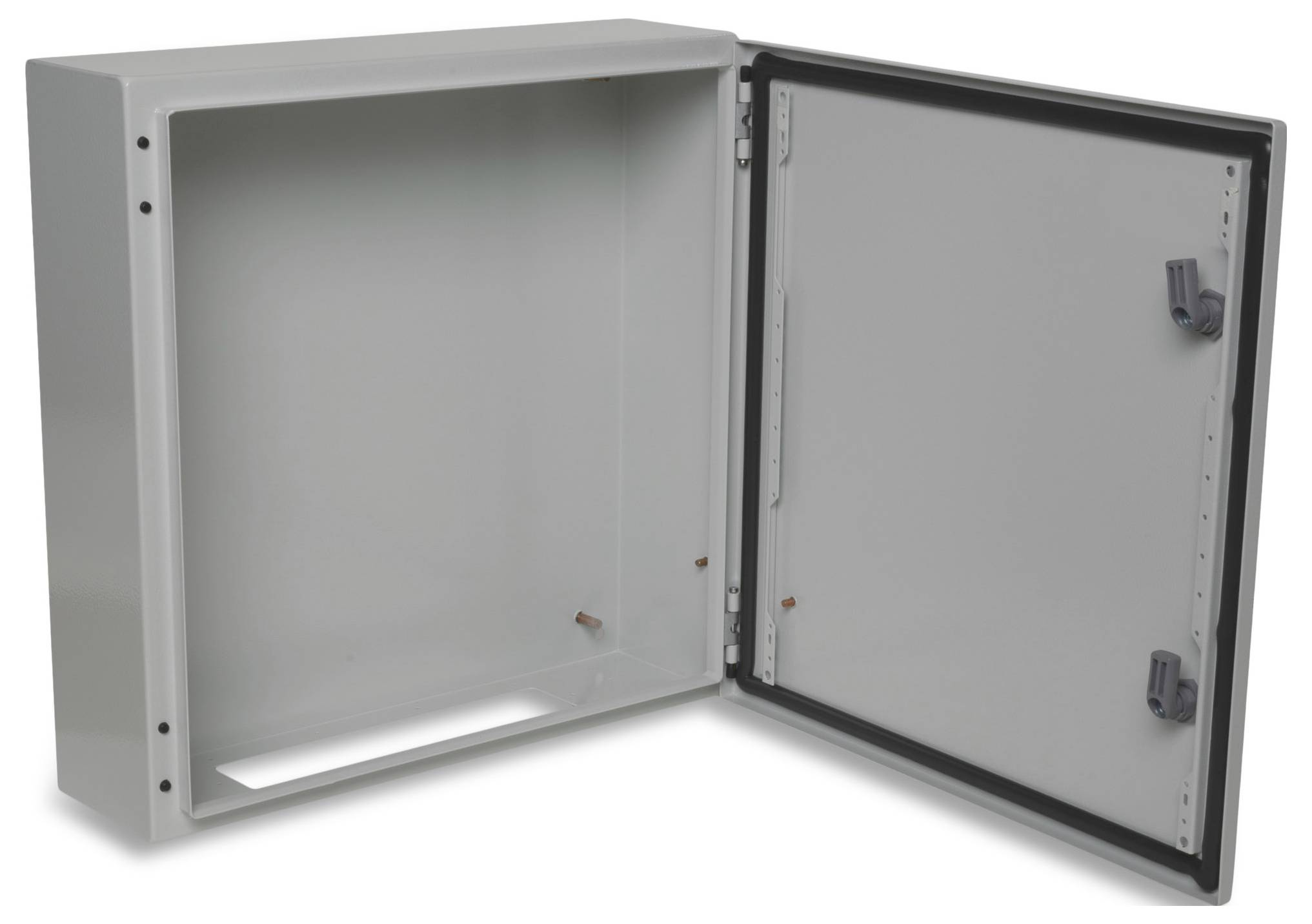

Metal electrical enclosure with an open door, revealing the interior with mounting brackets and hinges. Suitable for electrical components.

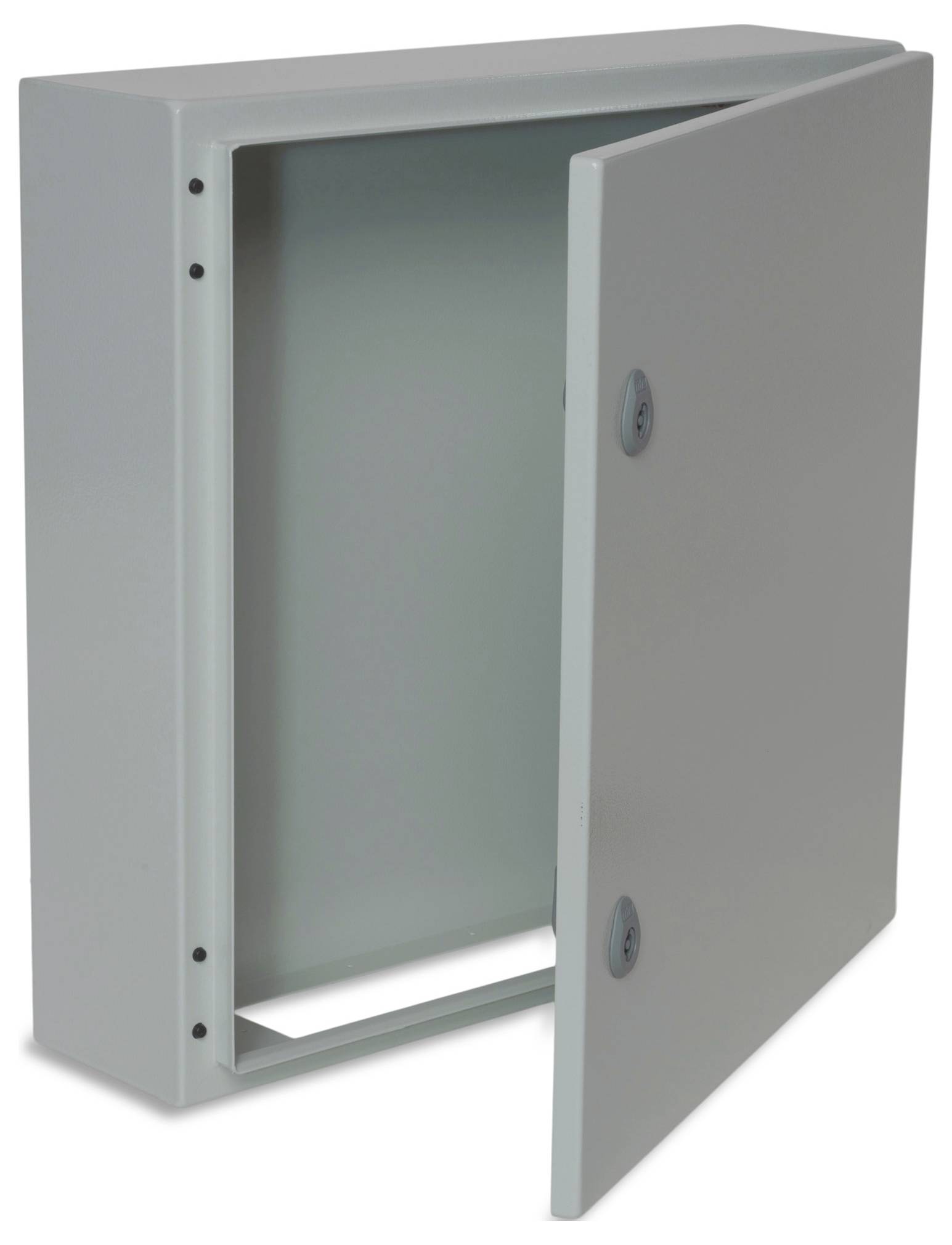

An open, empty metal cabinet with a hinge reveals its interior. The cabinet is grey and has a simple construction.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 454 x 454 x 129
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: Double sided ward

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 500 mm

Width: 500 mm

Height: 150 mm

Dimensions: 454 x 454 x 129 mm

Weight: 12.55 kg

Content: 1 pc(s)

Type: Treva grau 500500150

Dim: (L x W x H) 500 x 500 x 150 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB505015-T01

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404563 Boxexpert Treva grau 500500150 Wall-mount enclosure 500 x 500 x 150 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404563 Boxexpert Treva grau 500500150 Wall-mount enclosure 500 x 500 x 150 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series from BOXEXPERT combines high-quality workmanship with an attractive price performance ratio. This steel sheet housing has a robust UV-protected polyester coating and is therefore best suited for outdoor use. With four pre-punched holes and a smooth mounting plate, it enables easy installation. The flexible design offers versatile application possibilities.
