Name: Boxexpert Treva grau 500500200 Wall-mount enclosure 500 x 500 x 200 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404564

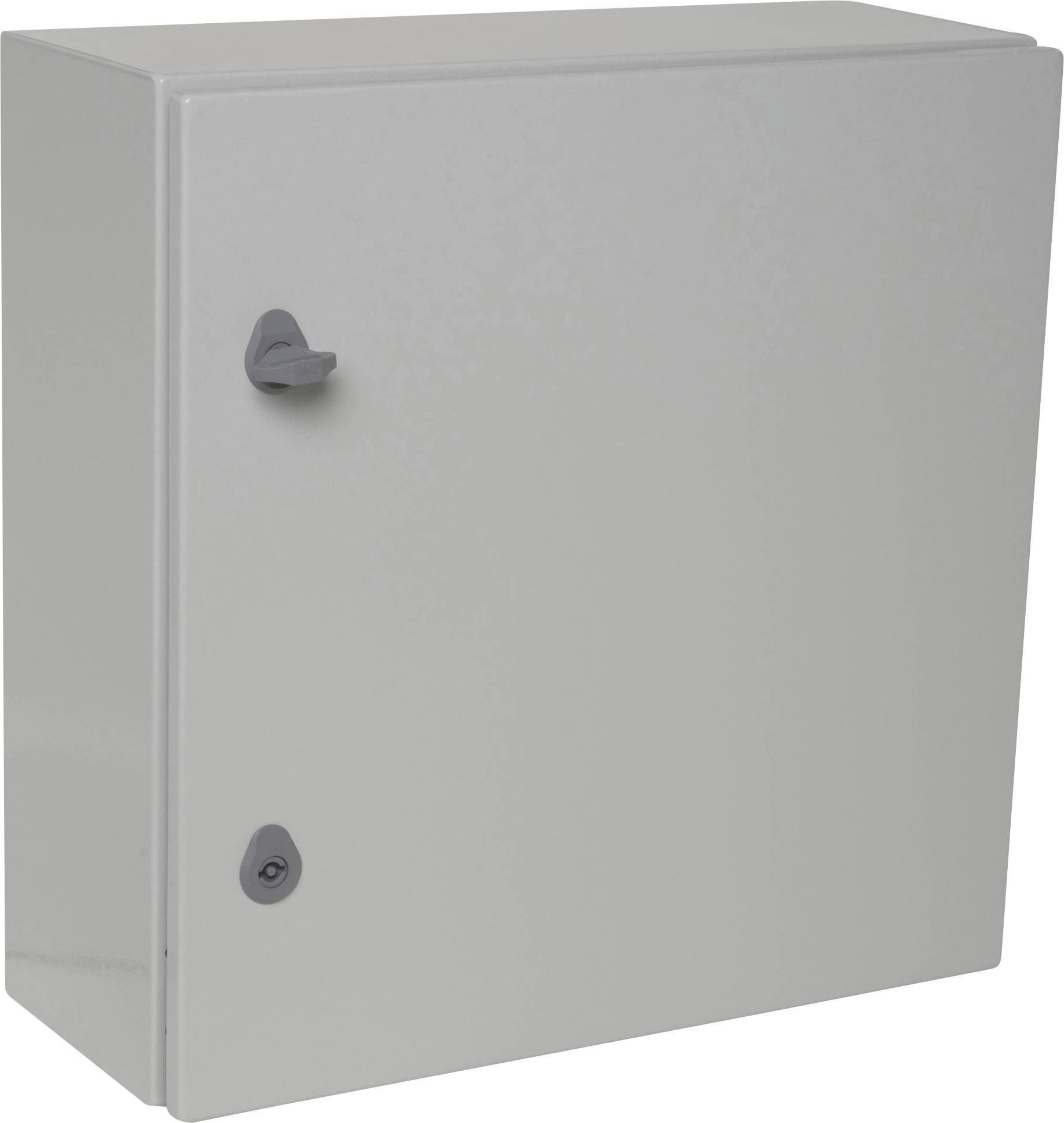

Metal control cabinet with lock, closed door. Suitable for storing electrical components.

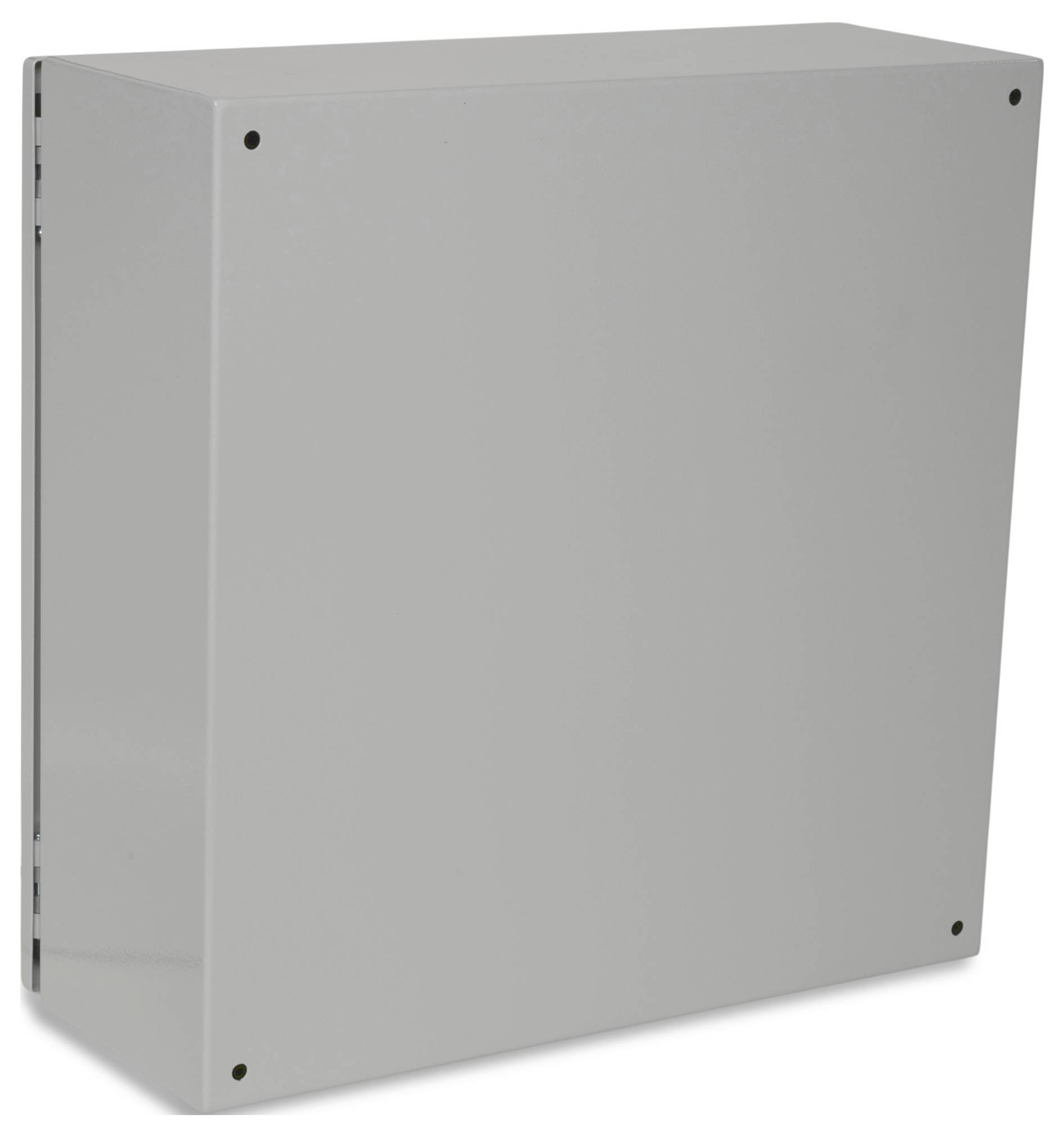

A grey, square metal enclosure with screw fasteners at the corners. It could be used for technical or industrial applications.

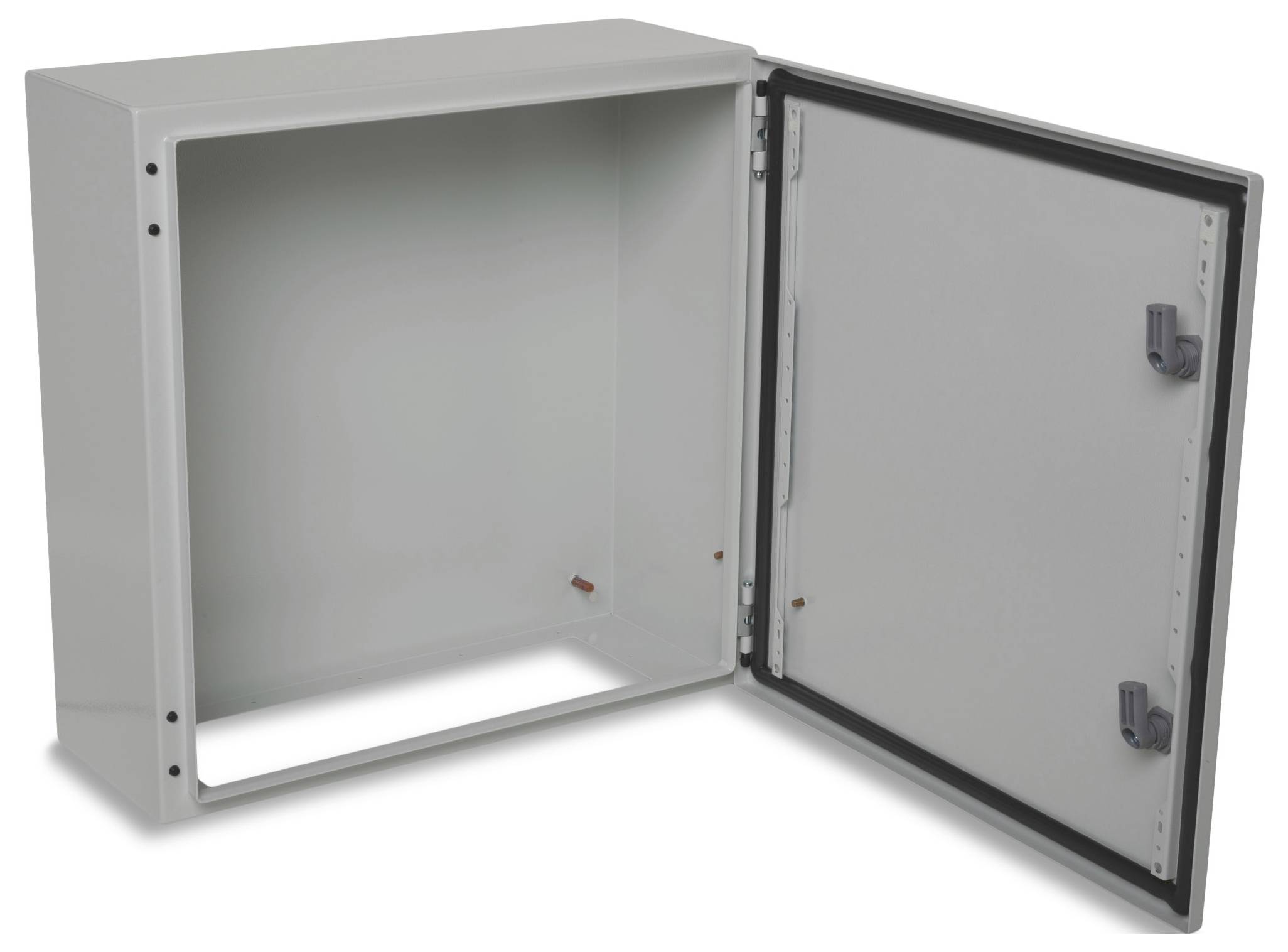

Metal electrical enclosure with an open door, revealing an empty interior with mounting holes. Suitable for electrical equipment.

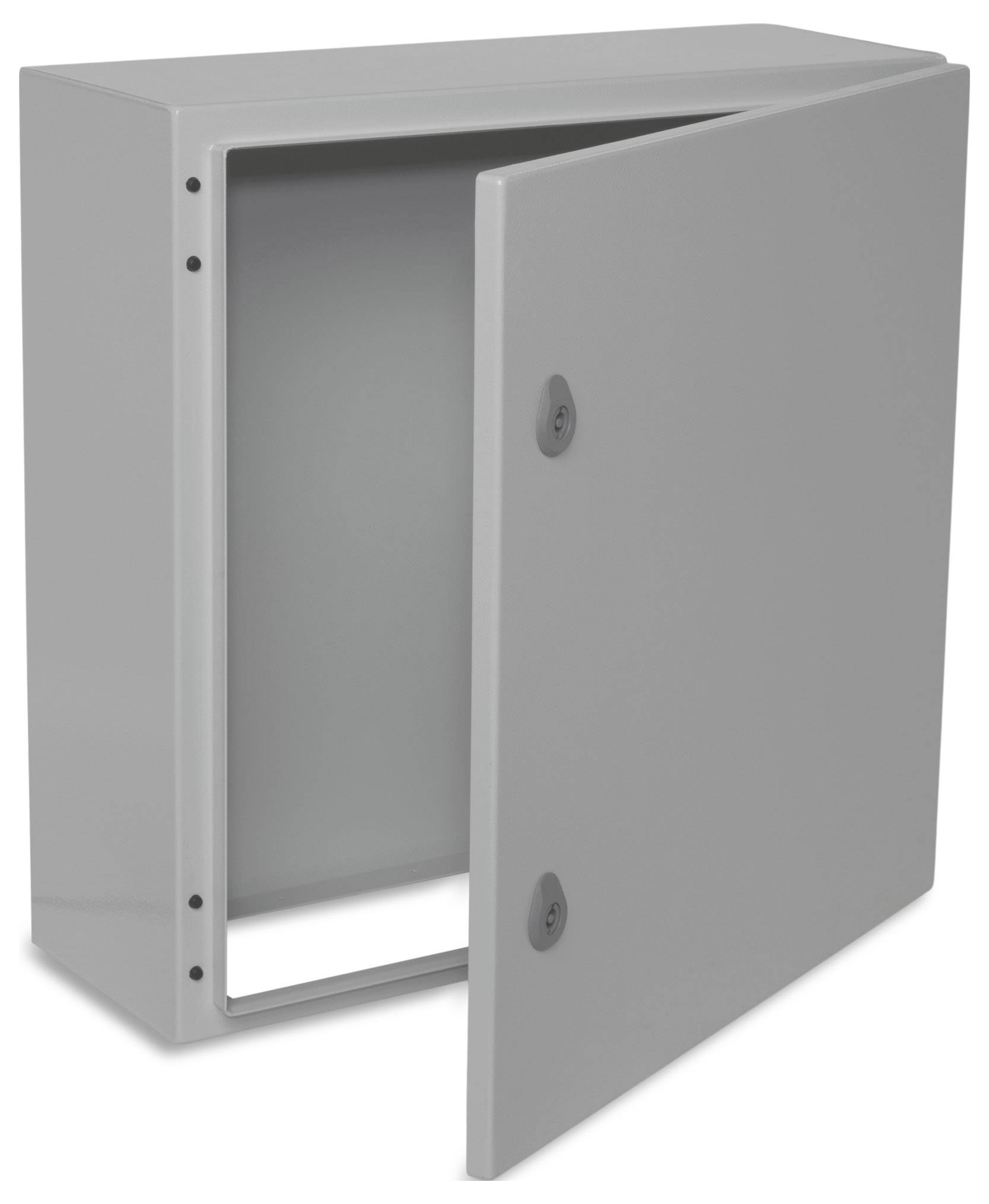

Grey metal enclosure with an open door, showing interior. Suitable for securing technical or electrical equipment.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 454 x 454 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: Double sided ward

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 500 mm

Width: 500 mm

Height: 200 mm

Weight: 13.9 kg

Content: 1 pc(s)

Type: Treva grau 500500200

Dim: (L x W x H) 500 x 500 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB505020-T01

Depth: 200 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404564 Boxexpert Treva grau 500500200 Wall-mount enclosure 500 x 500 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404564 Boxexpert Treva grau 500500200 Wall-mount enclosure 500 x 500 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The BOXEXPERT Treva series offers wall cabinet casing made of durable steel plate with UV-resistant polyester paint. They are Ideal suitable for outdoor use and have pre-punched holes for a quick wall mounting. The smooth mounting plate facilitates the fixing of components. Thanks to high flexibility the casing can be adapted to individual installation conditions.
