Name: Boxexpert Treva grau 600400200 Wall-mount enclosure 400 x 600 x 200 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404566

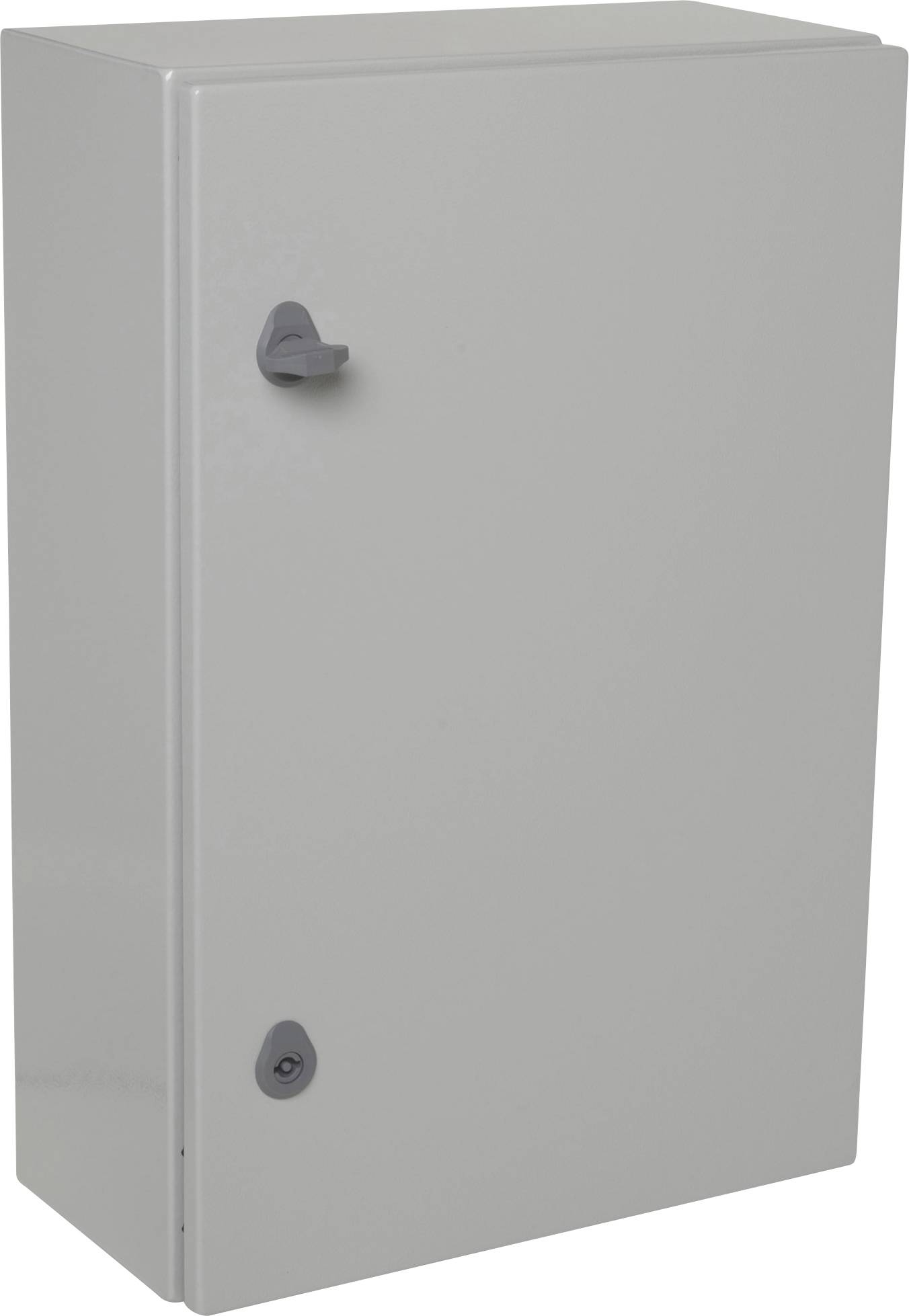

A grey, rectangular metal control cabinet with two rotary locks.

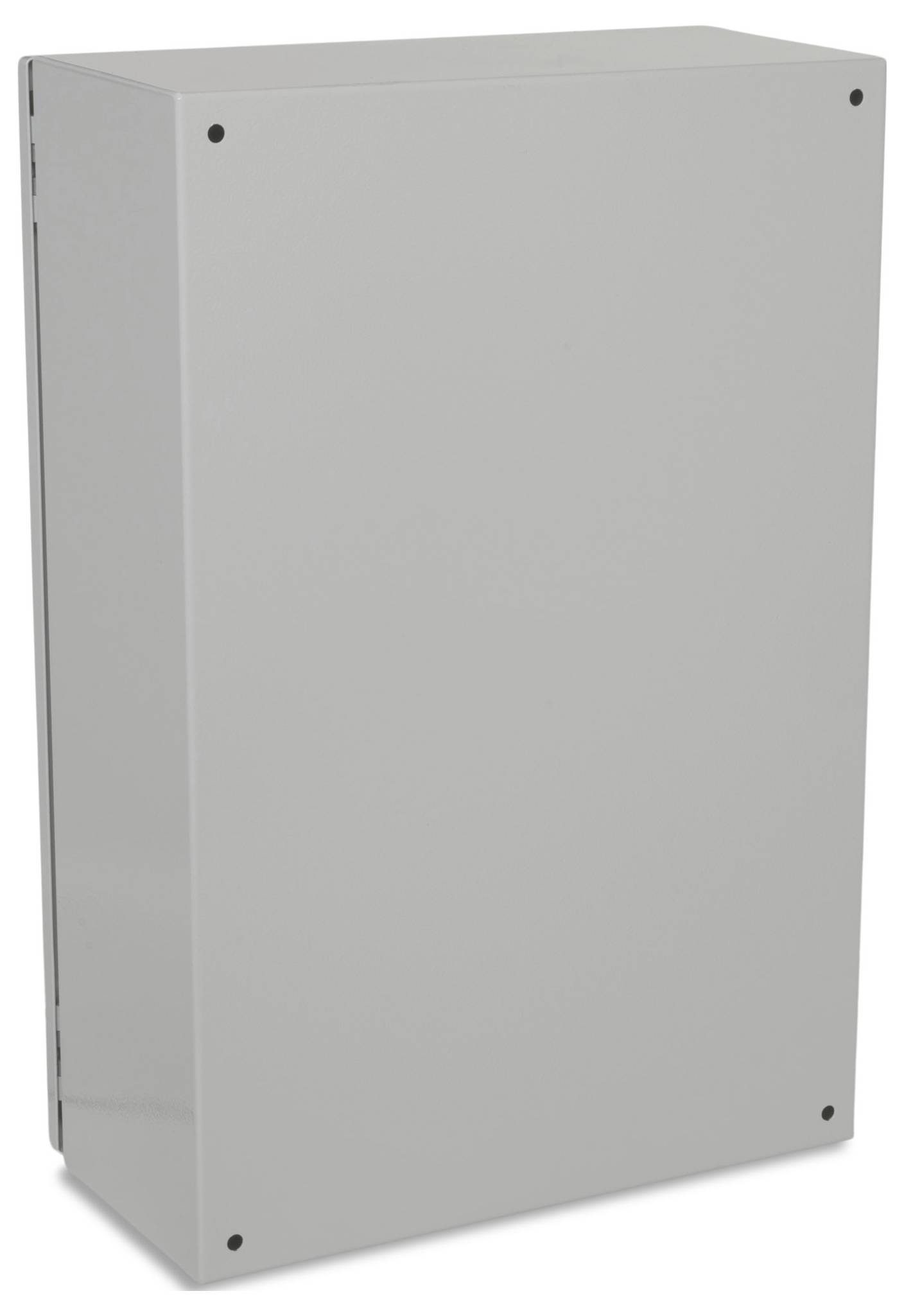

Grey metal enclosure with visible screws at the corners.

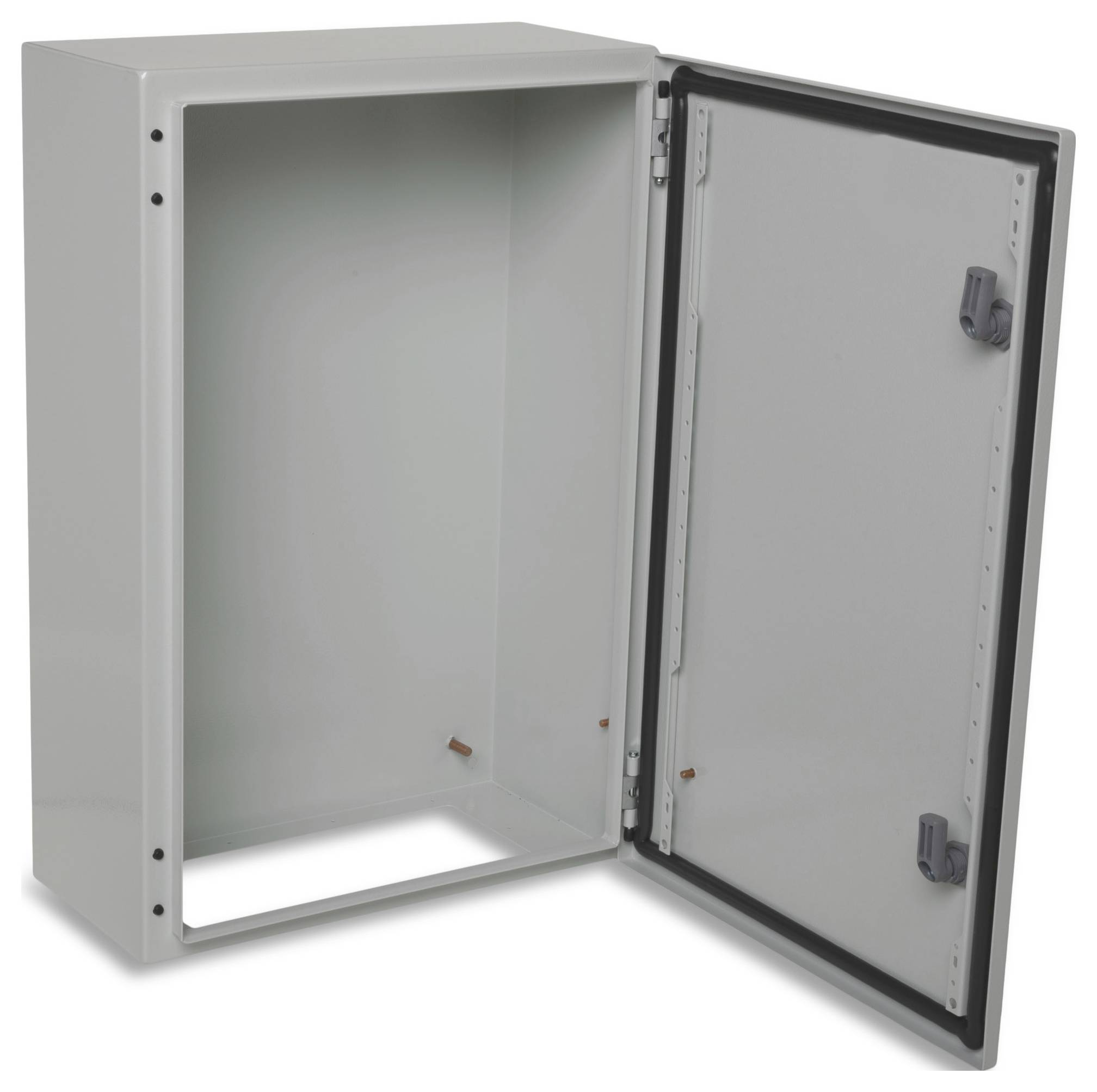

Metal enclosure with an open door, interior empty, suitable for mounting electrical or electronic devices.

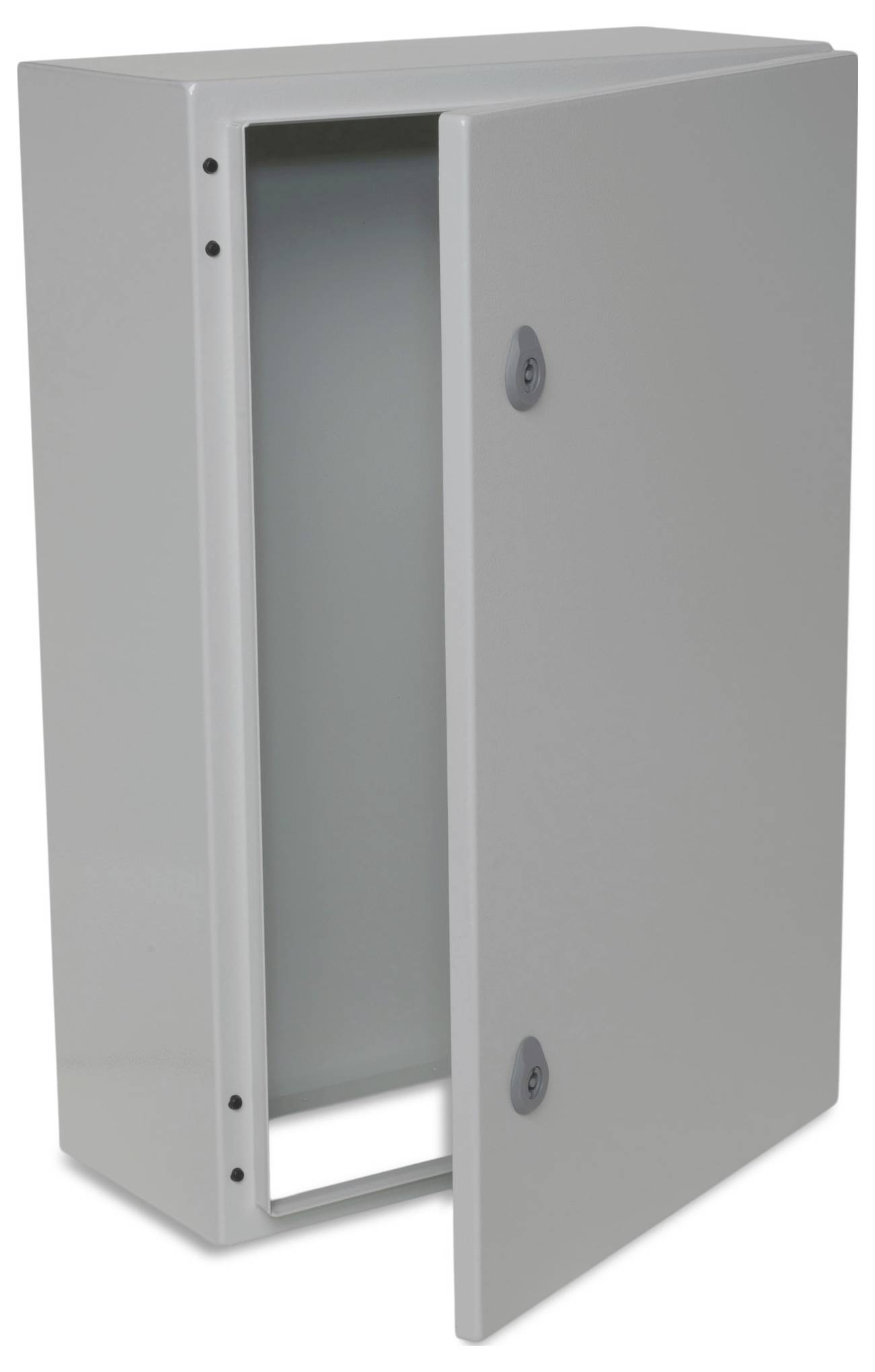

Grey metal cabinet with an open door, two hinges visible; suitable for storing or securing items.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

600 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 554 x 354 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: UV-resistant

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 400 mm

Width: 600 mm

Height: 200 mm

Dimensions: 400 x 600 x 200 mm

Weight: 13.37 kg

Content: 1 pc(s)

Type: Treva grau 600400200

Dim: (L x W x H) 400 x 600 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB604020-T01

Depth: 200 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404566 Boxexpert Treva grau 600400200 Wall-mount enclosure 400 x 600 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404566 Boxexpert Treva grau 600400200 Wall-mount enclosure 400 x 600 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series from BOXEXPERT combines robustness and economy. These steel sheet wall cabinets are suitable for outdoor use because of their UV-resistant polyester coating Ideal. Four pre-punched holes make the wall easier and a mounting plate provides a secure attachment of the component. The design allows an individual adaptation to installation specifications.

This text is machine translated.
