Name: Boxexpert Treva grau 600400250 Wall-mount enclosure 400 x 600 x 250 x 250 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404567

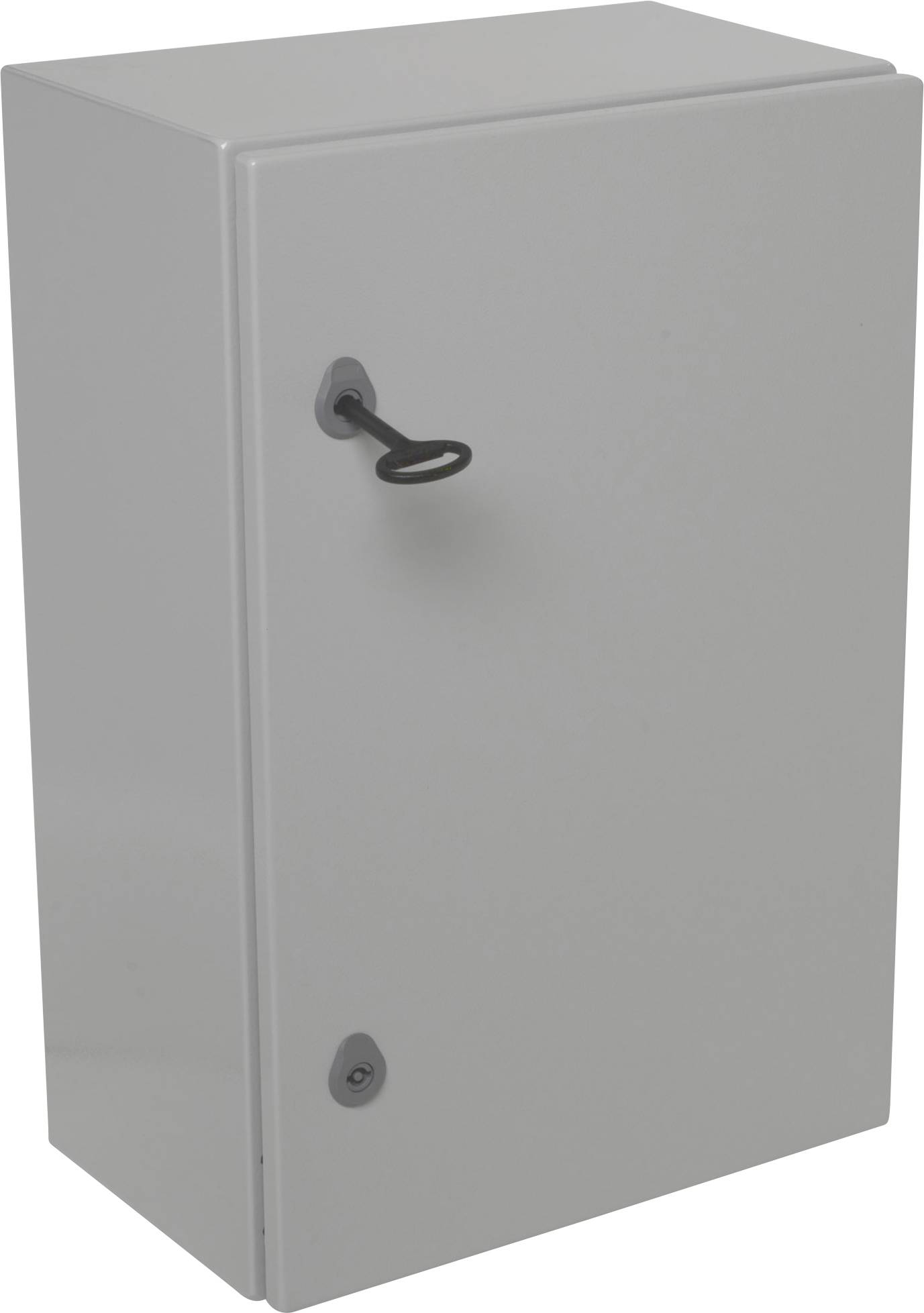

A grey cupboard with a locked door secured by a black metal handle.

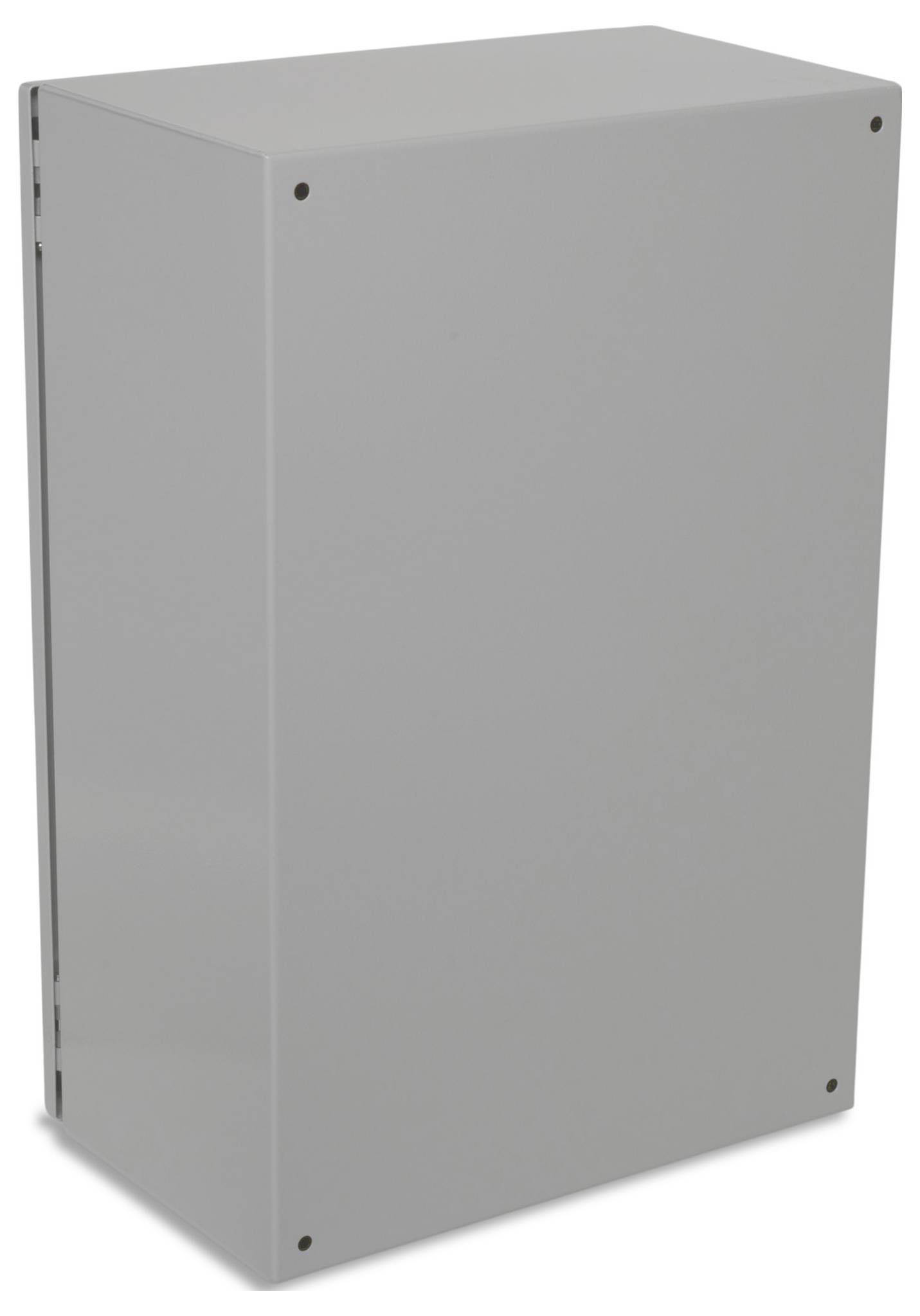

A simple, rectangular, grey metal cabinet with no visible handles or labels.

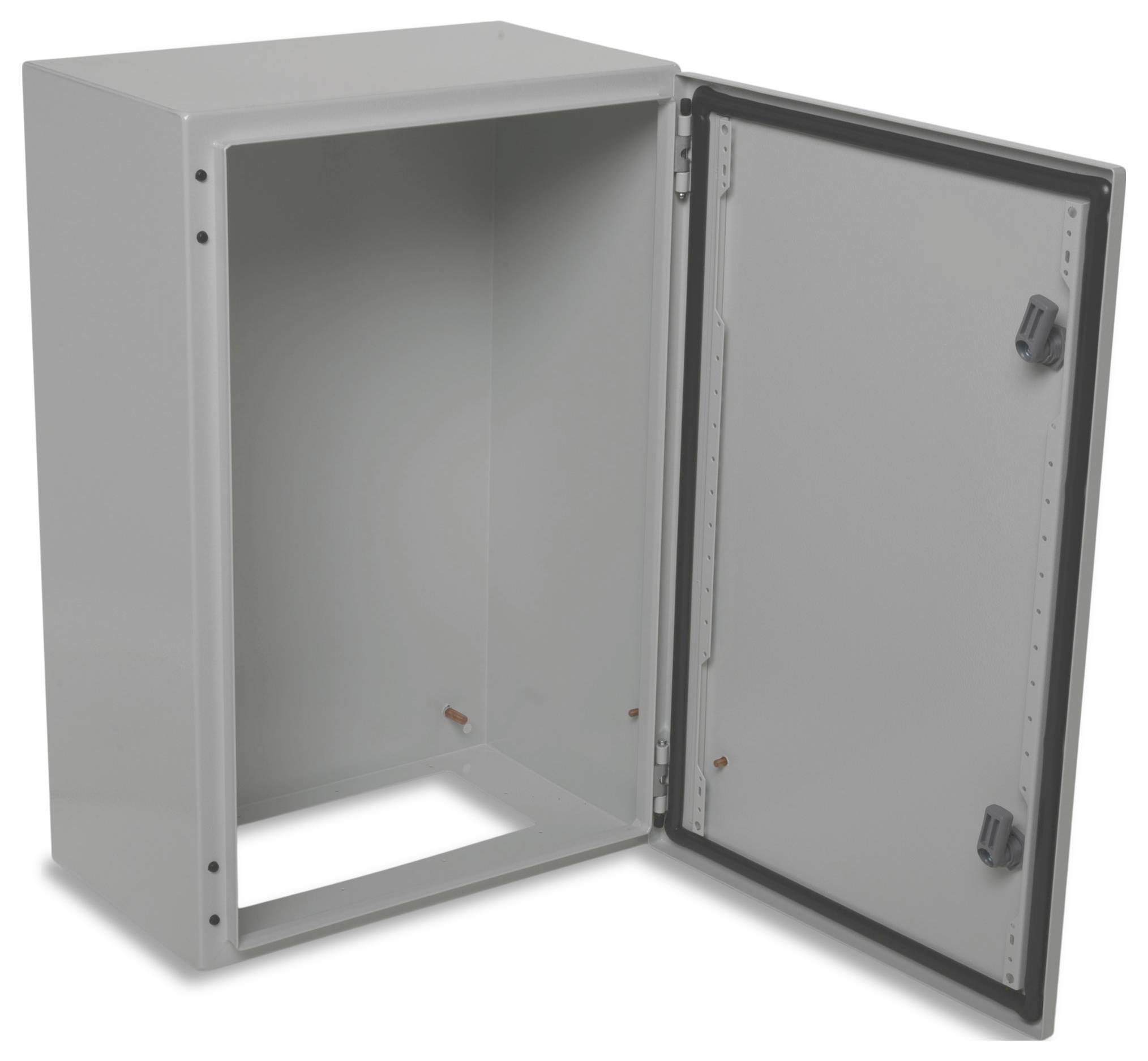

Grey, rectangular metal enclosure with an open door, revealing interior and hinges; suitable for protecting electrical components.

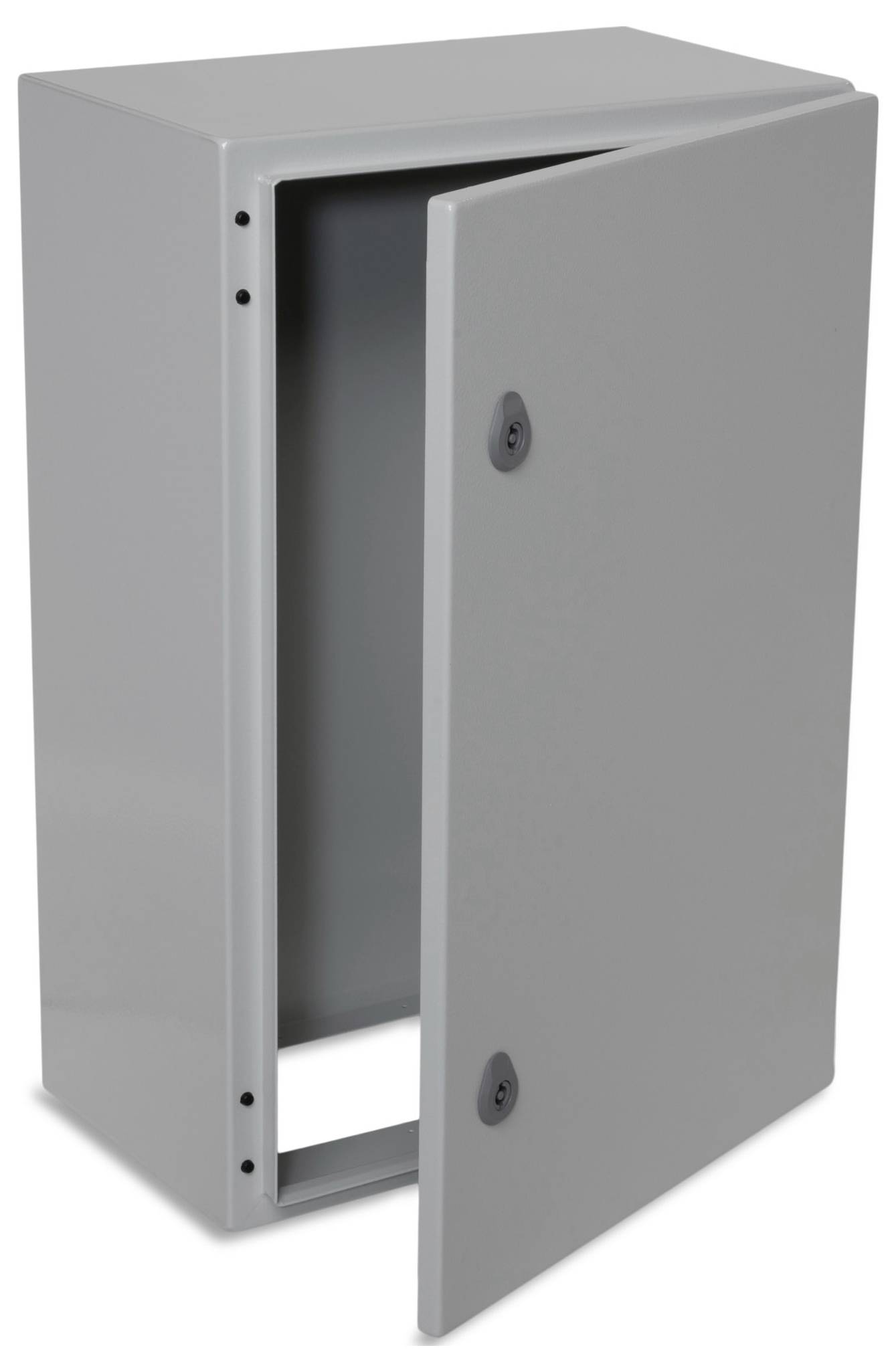

Grey metal cabinet with an open door, revealing its interior. Simple design, suitable for securely storing items.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

600 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 554 x 354 x 229
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: UV-resistant

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 400 mm

Width: 600 mm

Height: 250 mm

Weight: 14.5 kg

Content: 1 pc(s)

Type: Treva grau 600400250

Dim: (L x W x H) 400 x 600 x 250 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB604025-T01

Depth: 250 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404567 Boxexpert Treva grau 600400250 Wall-mount enclosure 400 x 600 x 250 x 250 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404567 Boxexpert Treva grau 600400250 Wall-mount enclosure 400 x 600 x 250 x 250 Steel plate Light grey 1 pc(s) Piece

Description

The BOXEXPERT Treva series is an ideal solution for all who are looking for a high-quality yet inexpensive steel sheet wall cabinet casing. Thanks to the UV resistant polyester coating, the housing is ideal for outdoor use. Pre-punched holes and a smooth mounting plate facilitate the installation. The sophisticated design allows for a flexible adaptation to installation requirements.

This text is machine translated.
