Name: Boxexpert Treva grau 600600200 Wall-mount enclosure 600 x 600 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404570

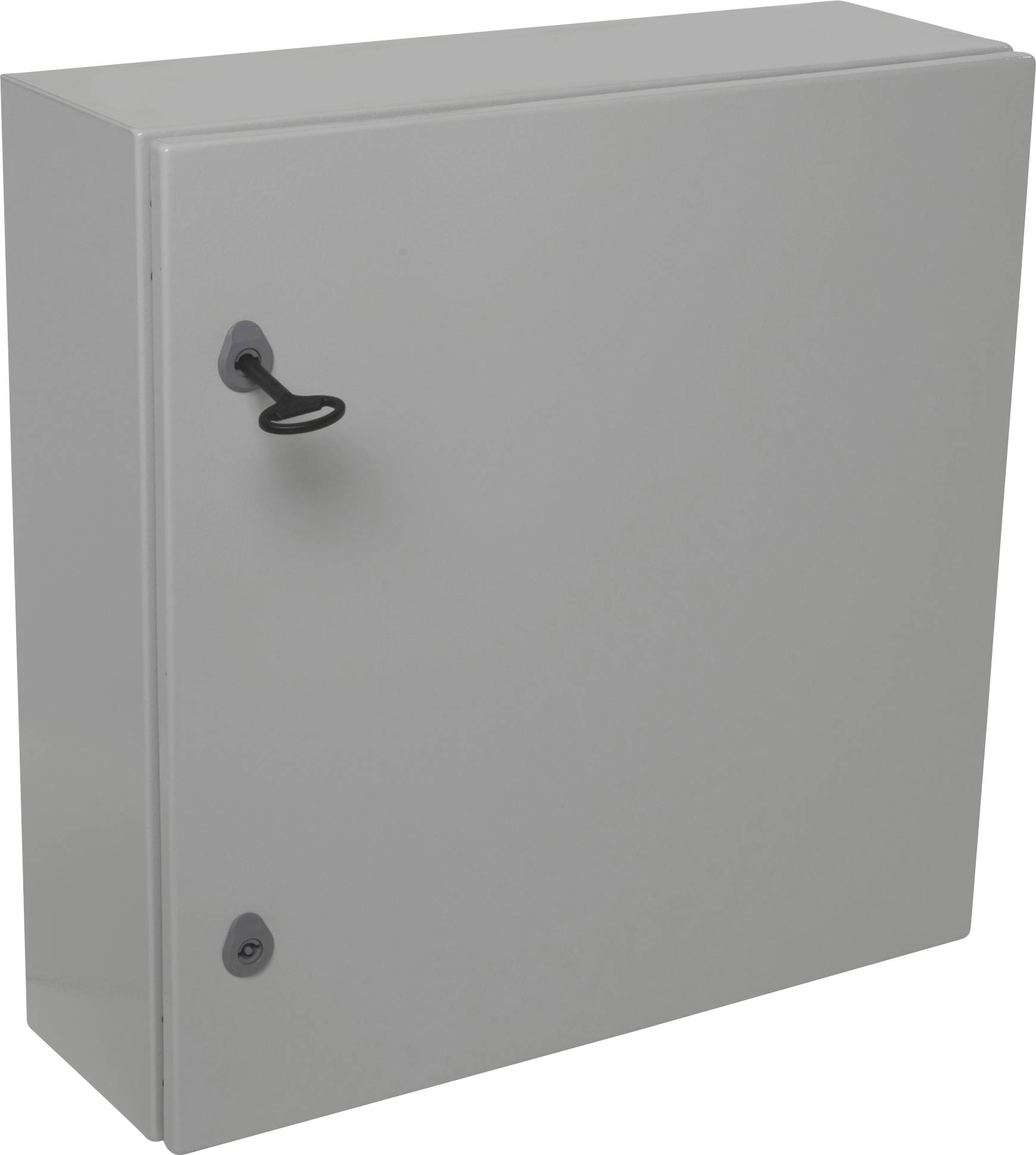

A locked grey metal cabinet with a key in the lock. The cabinet has a plain, rectangular shape.

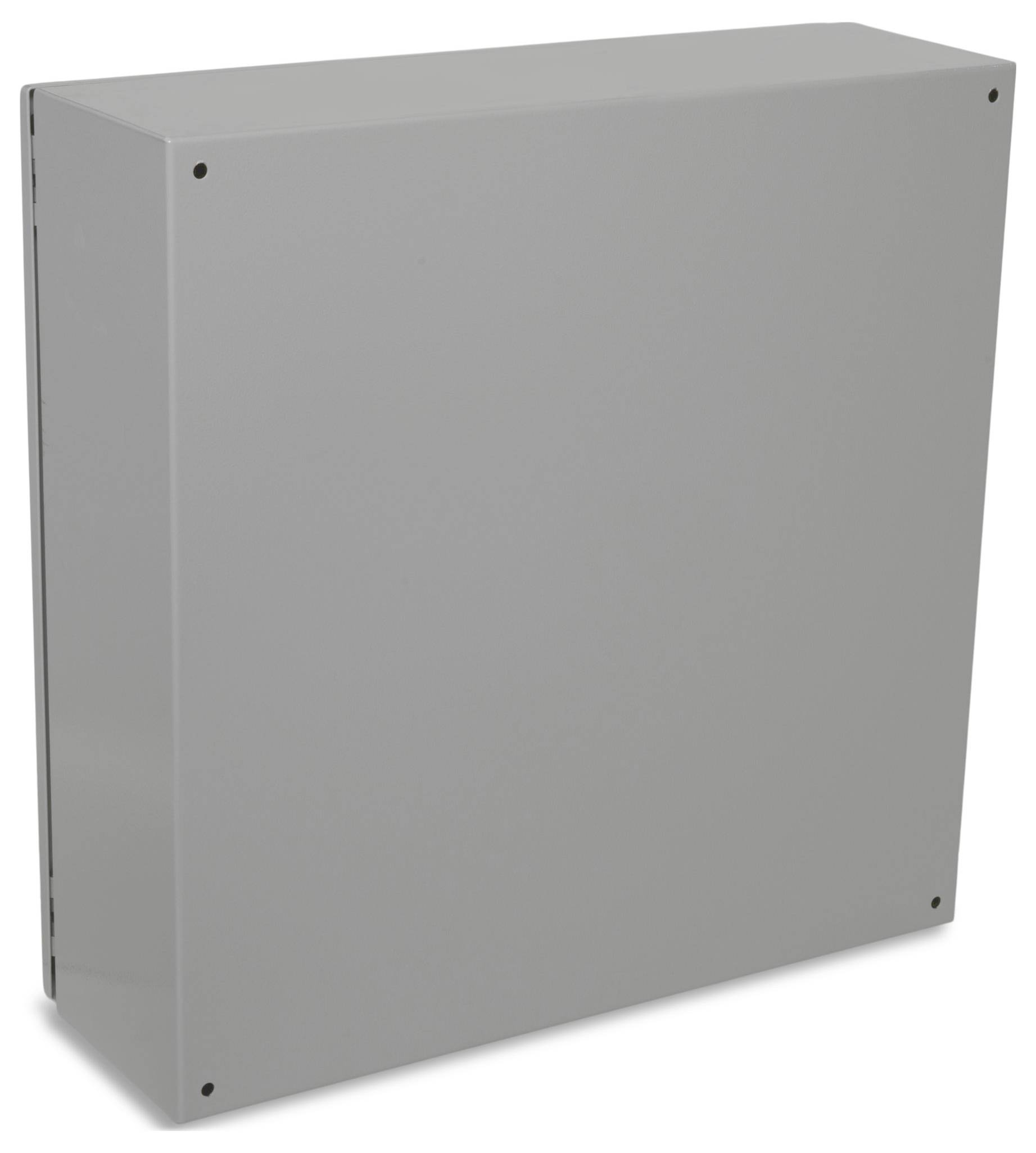

A rectangular grey metal box, possibly a device or enclosure, against a white background.

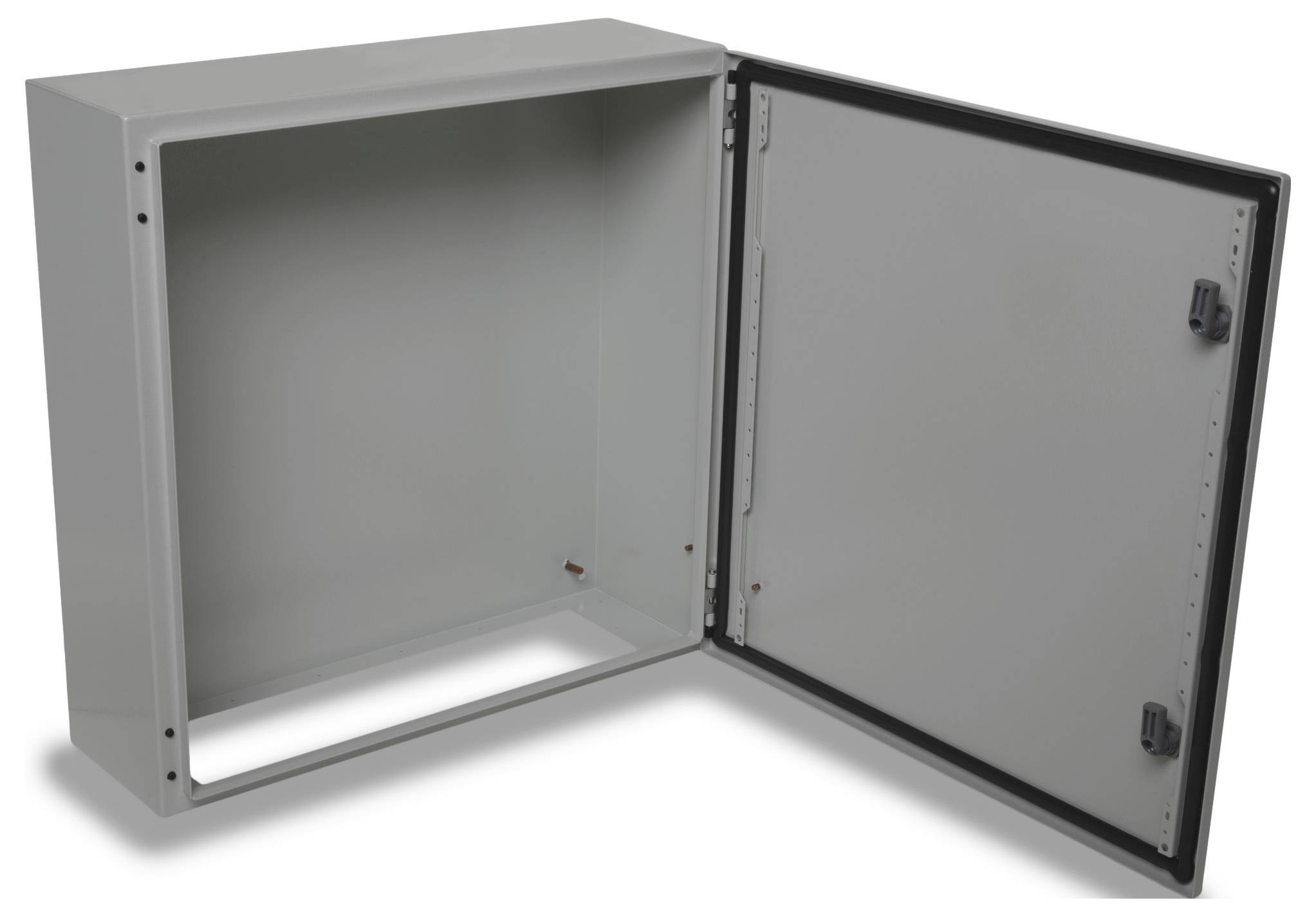

Grey, open metal enclosure with hinged lid; reveals interior and sealing. Suitable for electrical accessories or wiring.

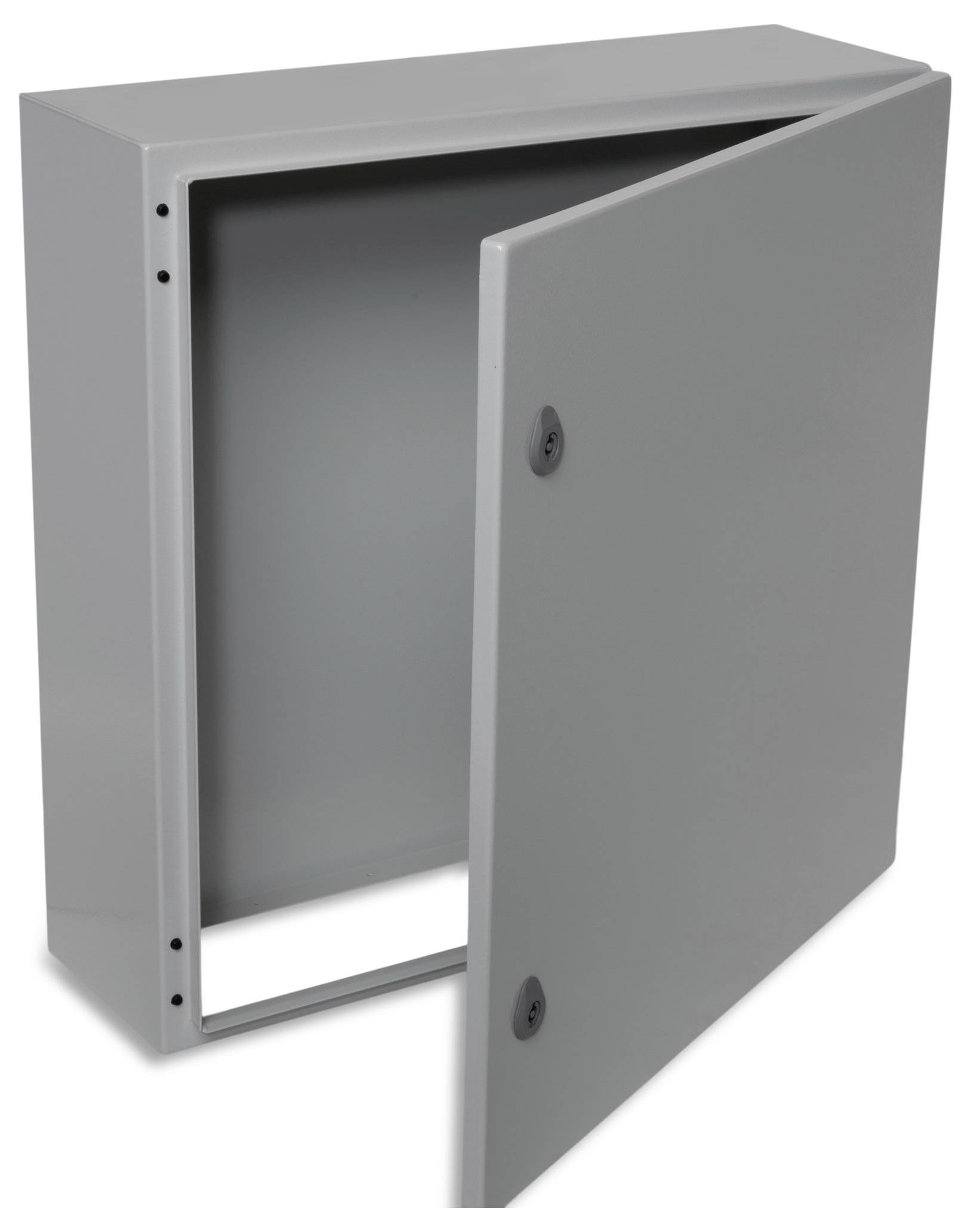

Grey, rectangular metal enclosure with an open door, showing an empty interior; suitable for housing electronic components.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

600 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 554 x 554 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: UV-resistant

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 600 mm

Width: 600 mm

Height: 200 mm

Weight: 21.4 kg

Content: 1 pc(s)

Type: Treva grau 600600200

Dim: (L x W x H) 600 x 600 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB606020-T01

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404570 Boxexpert Treva grau 600600200 Wall-mount enclosure 600 x 600 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404570 Boxexpert Treva grau 600600200 Wall-mount enclosure 600 x 600 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The Treva series presents BOXEXPERT robust and cost-effective steel cabinet casing. The UV resistant polyester coating makes it Ideal suitable for outdoor use. Pre-punched holes make the installation easier, and a smooth mounting plate offers a flexible component mounting option. The flexible design enables individual adjustments.

This text is machine translated.
