Brennenstuhl 1197302822 Cable reel 25 m Black T23 plug

Illustration of a silver cable reel with a 25 m cable, red handle, three blue socket outlets, and a rotating mechanism mounted on a metal stand.

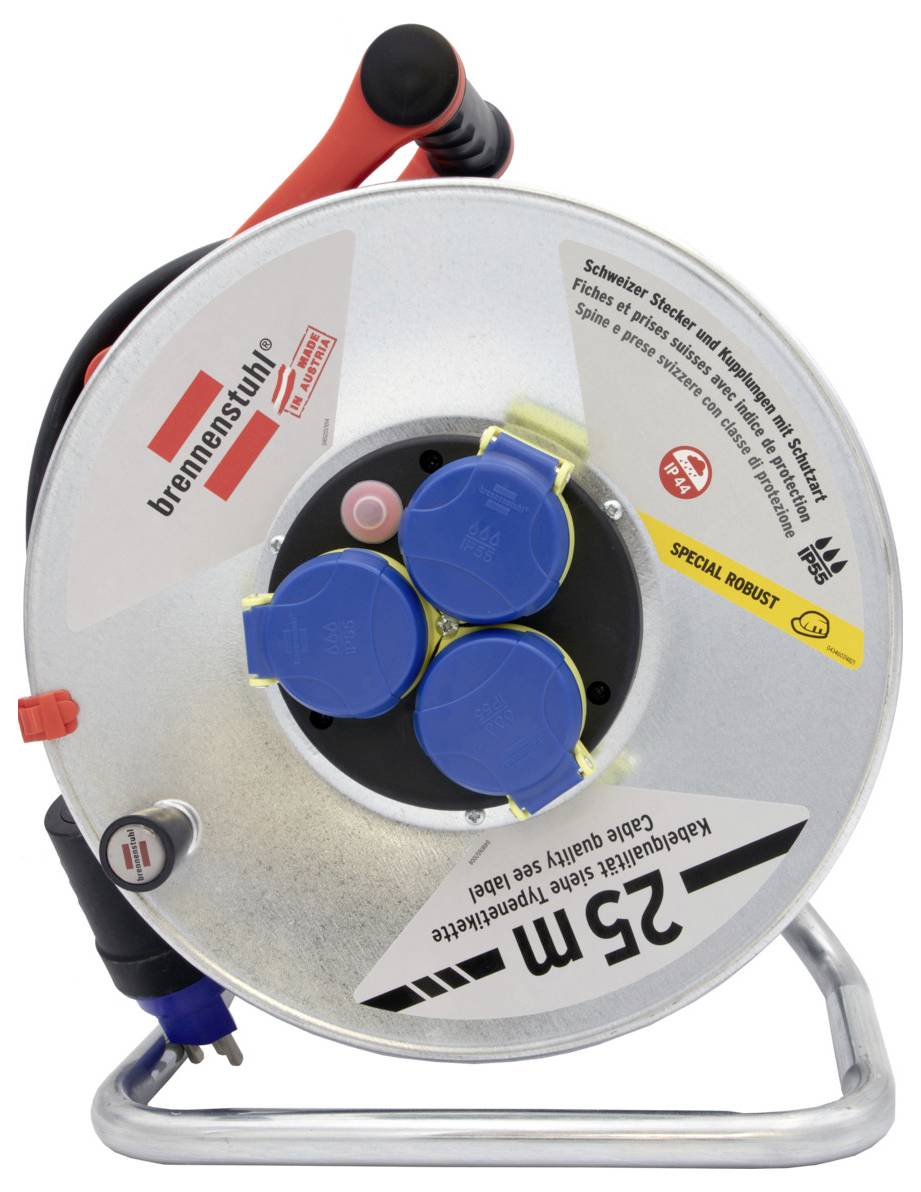

'Cable reel with three blue plug sockets, red carrying handle, 25m cable, and 'brennenstuhl' printed label.'

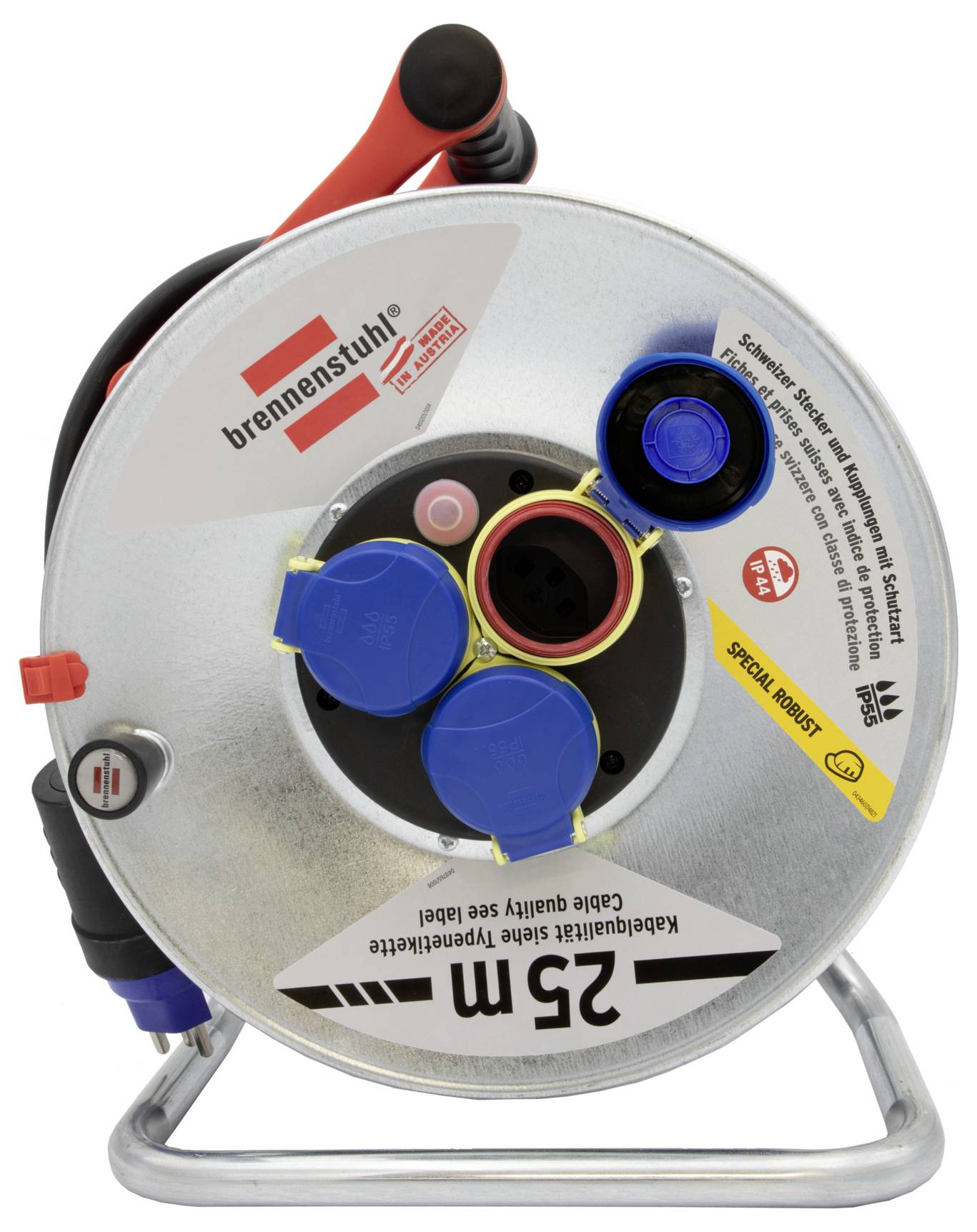

Metal cable reel with 25 metres of cable, three blue and one red plug, surrounded by safety instructions and brand logo.
A cable reel with three blue sockets and a red handle, labelled 'brennenstuhl' and with a length of 25 metres.

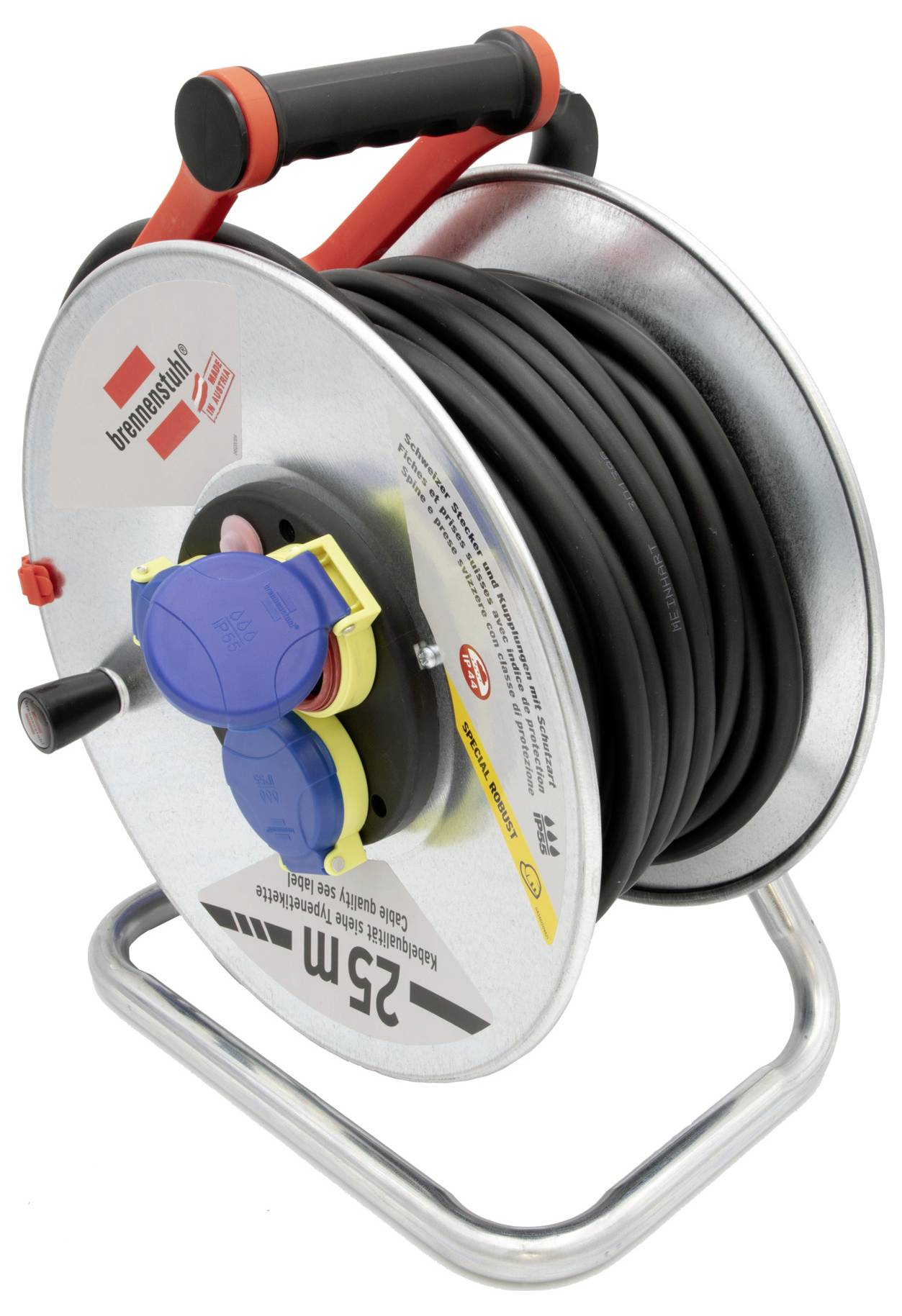

A silver cable reel with a black cable and three blue plug sockets. The reel is marked with '25 M' and has a red handle.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Cable drum Garant SK 290, 3x T23 socket, T23 plug, cable 25m RN07-F 3G2.5, black

  • 'Made in Austria' logo with a red and white stripe on the left and black text on the right.
  • Red, circular logo with a yellow safety helmet in the centre. 'SPECIAL' is written at the top and 'ROBUST' at the bottom in white letters.
  • Red symbol of a rain cloud pictogram with falling raindrops in a circle.
  • Red, round symbol with a power plug icon and the inscription 'CH/T23 IP55', indicating a specific socket type.

Technical specifications

  • Max. Load capacity 16 A
  • Dim. (LxWxH) 37 cm x 28 cm x 19 cm
  • Socket system: Type J T23 (CH)
  • Plug system: Type J T23 (CH)
Product type

Cable reel

Cable length

25 m

Type A

T23 plug

Connector version

straight

Type B

T23 socket (3-pin, 16 A)

16A PG plug

Outlets

3

Cable colour

Black

Cable standard

H07RN-F 3G 2,5 mm²

Used at

Outdoors

Material

Steel plate

Cable features

weatherproof

Factory colour

Black

Steel

Nominal input voltage

230 V

Load capacity (wound/unwound)

16 A

Reel diameter

290 mm

Weight

6.5 kg

Documents & Downloads

Datasheet

Datasheet 3375533 Brennenstuhl 1197302822 Cable reel 25 m Black T23 plug

User & Safety Instructions

User & Safety Instructions 3375533 Brennenstuhl 1197302822 Cable reel 25 m Black T23 plug

Description

* Extra stable steel tube frame with new exclusive strength.
* Innovative carrying handle "cablepilot" for perfect cable routing. Pendulum on both sides and allows comfortable carrying and hanging.
* Drum body made of steel sheet, galvanized with rust protection.
* Overheating protection, indicator light in case of overheating and overload.
* CH plug system IP55
* Plug type 23, 230V/16A (IP55).
* 3 earthing contact sockets T23 230V/16A, splash proof, with self-closing lids (IP55).

This text is machine translated.

Scope of delivery

  • Cable drum Garant SK 290 25m RN07-F 3G2.5 white *CH*

System requirements

  • Suitable power connection

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
