Brennenstuhl 1319110010 Cable reel 40 m Black CEE plug (5-pin, 16 A)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

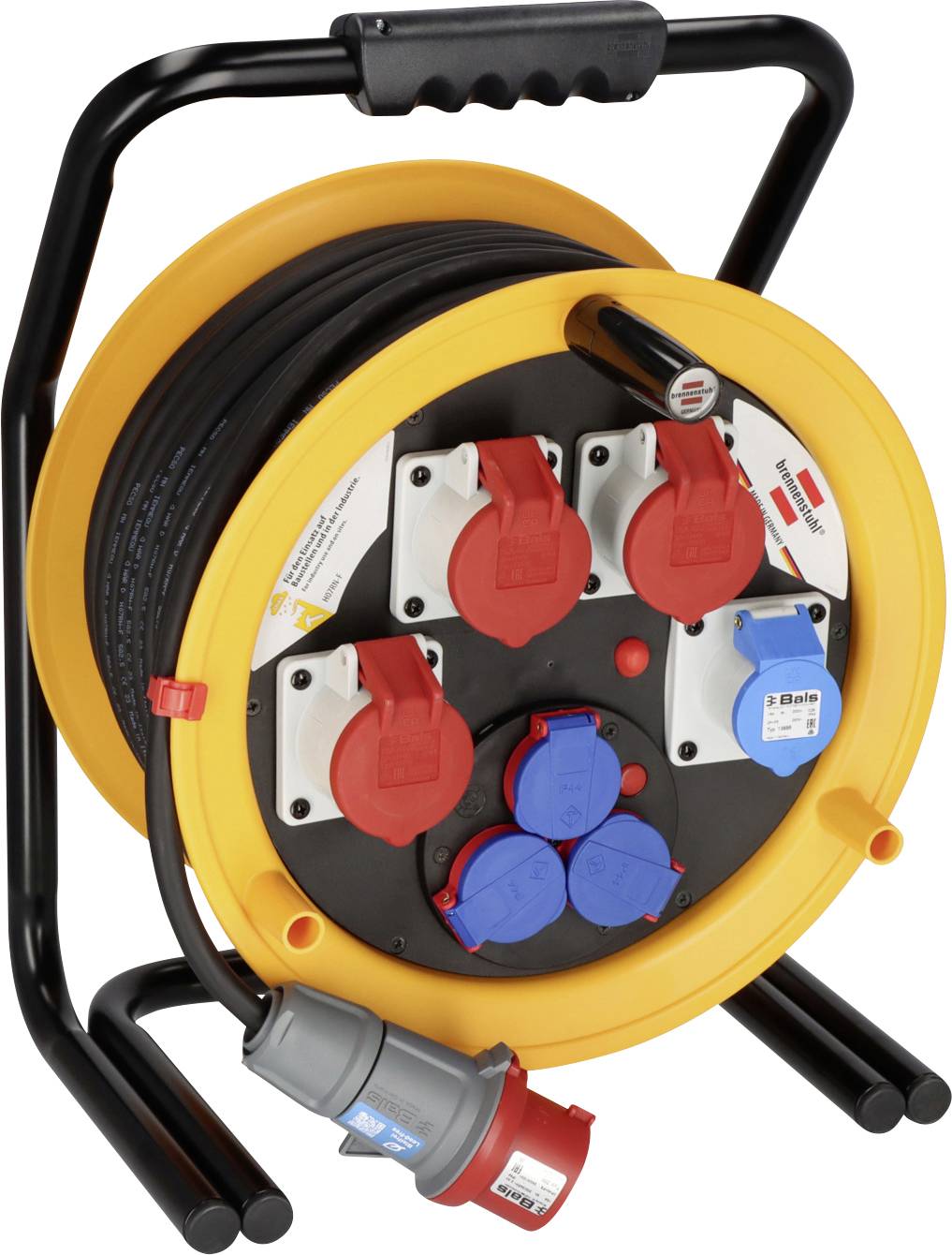

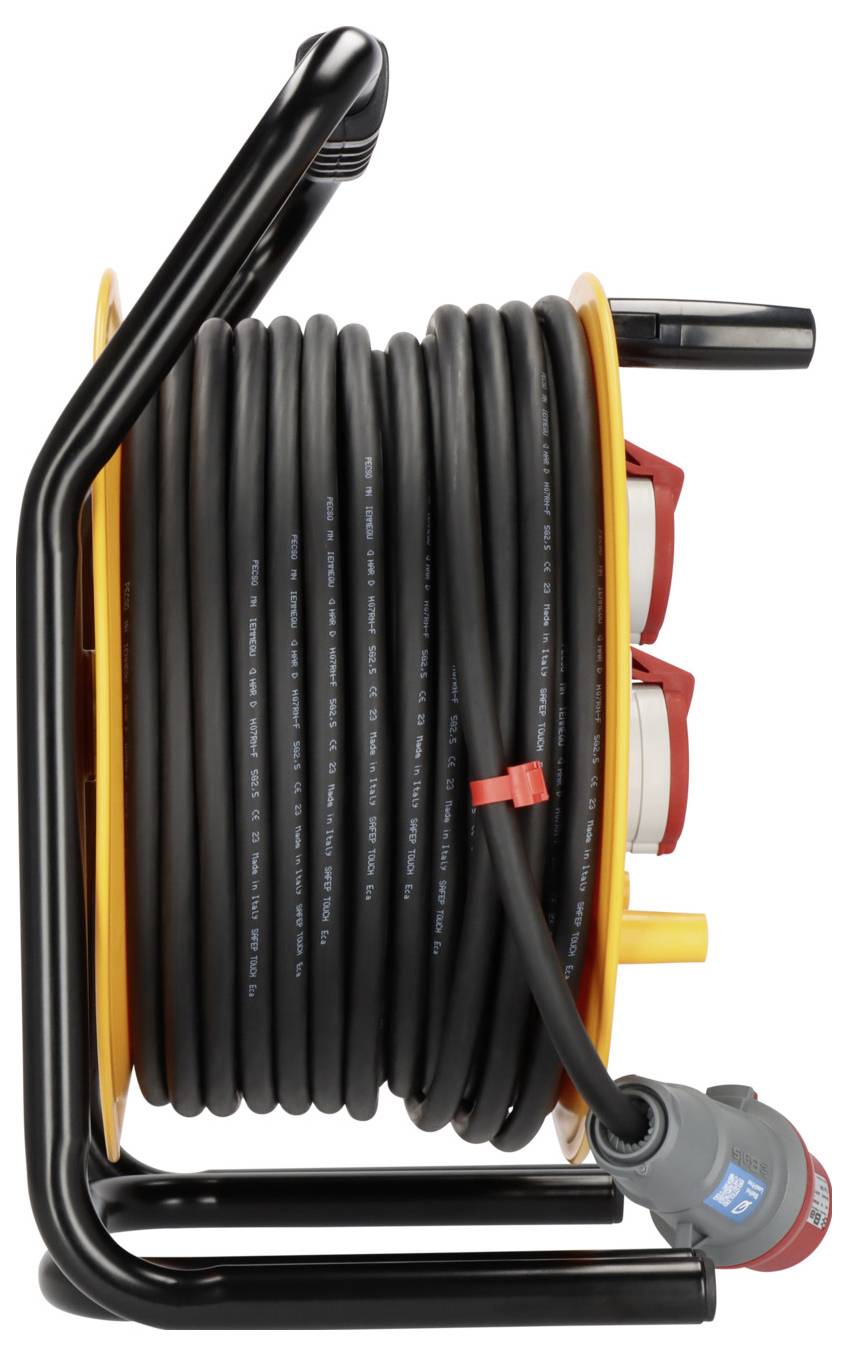

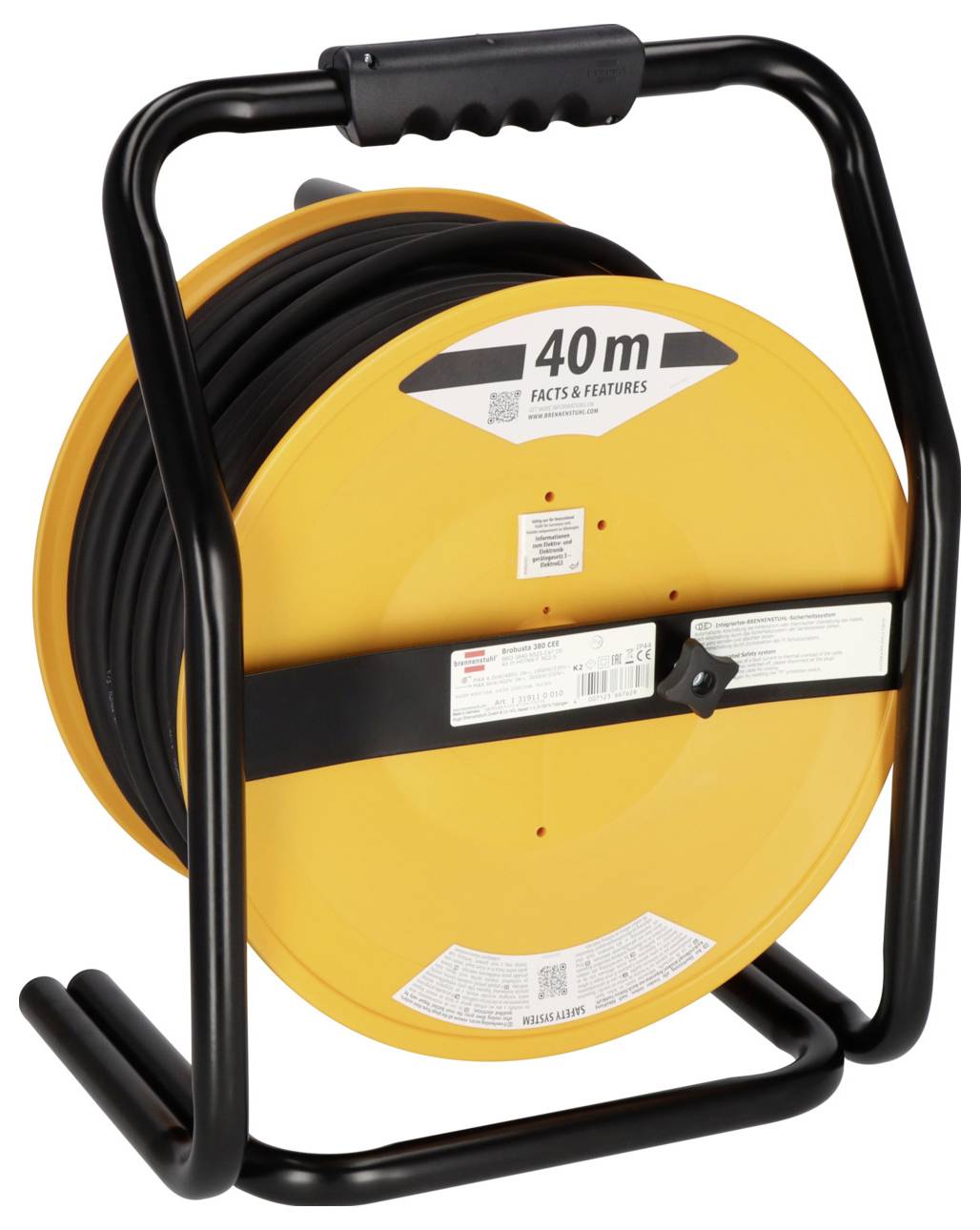

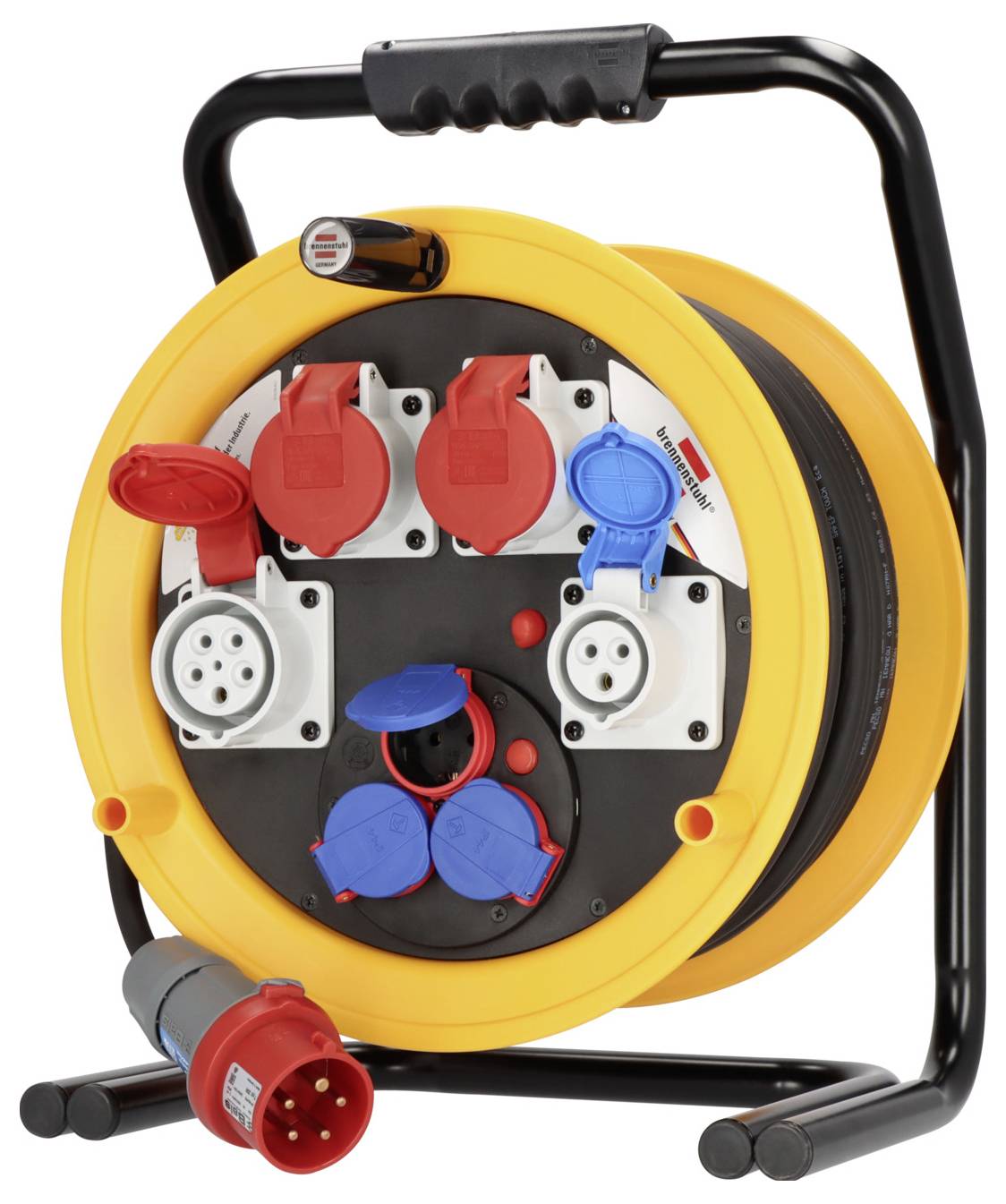

Brennenstuhl professional Brobusta CEE 4 IP44 commercial-/construction site cable reel
- Cable drum on an especially stable carrying frame with 40 m RN-cable (H07RN-F 5G2.5) Ideal is suitable for use on construction sites and for continuous use outdoors, IP 44
- ;Cable reel with CEE plug (400 V/16 A), 3 CEE sockets (400 V/16 A), 1 CEE socket (230 V/16 A) and 3 splash proof safety sockets (230V);Cable reel with RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
- ;Cable drum for construction site with fold-away handle and 3-pole safety cut-off and overheating protection; construction site cable drum for the construction site use according to DGUV 203-006 (ex BGI 608) and constant outdoor application
Technical specifications
- Product type
Cable reel
- Cable length
40 m
- Type A
CEE plug (5-pin, 16 A)
- Inputs
1
- Connector version
straight
- Type B
CEE socket (5-pin, 16 A)
CEE socket (3-pin, 16 A)
PG socket
- Outlets
7
- Cable colour
Black
- Cable standard
H07RN-F 5G 2,5 mm²
- Used at
Outdoors
- Material
Plastic
- Factory colour
Yellow
Black
- Nominal input voltage
400 V
- Nominal current (details)
16 A
- Reel diameter
38 cm
- Weight
18.0000 kg
IP44
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2303764 Brennenstuhl 1319110010 Cable reel 40 m Black CEE plug (5-pin, 16 A)
User & Safety Instructions
User & Safety Instructions 2303764 Brennenstuhl 1319110010 Cable reel 40 m Black CEE plug (5-pin, 16 A)
Description
The Brobusta commercial/construction site cable reel with 40m cable length by Brennenstuhl convinces through its quality and safety in all areas. The cable drum is suitable for Ideal for the application on construction sites and for continuous use in the open. It also convinces by the following features:
* RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
* Category 2 equipment (K2 DGUV 203-005): Use for rough operation with high mechanical, physical and chemical influences
* CEE PLUG 400 V/16 A
* 3 CEE SOCKETS 400 V/16 A
* 1 CEE SOCKET 230 V/16 A
* 3 splash-proof earthing contact sockets 230 V
* Cable length: 40m
* CABLE NAME: H07RN-F 5G2.5
* Cable color: Black
* Drum diameter: 380 mm
* Protection class (IP): IP44
This text is machine translated.
* RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
* Category 2 equipment (K2 DGUV 203-005): Use for rough operation with high mechanical, physical and chemical influences
* CEE PLUG 400 V/16 A
* 3 CEE SOCKETS 400 V/16 A
* 1 CEE SOCKET 230 V/16 A
* 3 splash-proof earthing contact sockets 230 V
* Cable length: 40m
* CABLE NAME: H07RN-F 5G2.5
* Cable color: Black
* Drum diameter: 380 mm
* Protection class (IP): IP44
This text is machine translated.
Features
- Cable drum on an especially stable carrying frame with 40 m RN-cable (H07RN-F 5G2.5) Ideal is suitable for use on construction sites and for continuous use outdoors, IP 44
- Cable drum with CEE plug (400 V/16 A), 3 CEE sockets (400 V/16 A), 1 CEE socket (230 V/16 A) and 3 splash proof safety sockets (230V)
- Cable drum with RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
- Cable drum for construction site with fold-up turning handle and 3-pole safety cut-off and overheating protection
- Delivery scope: 1x Brobusta CEE 4 IP44 construction site cable reel with 40m cable length - in the best quality from Brennenstuhl®
Scope of delivery
- Brobusta CEE 4 FI IP44 Commercial/construction site cable drum 40m H07RN-F 5G2.5
- User manual.
