Brennenstuhl 1319200010 Cable reel 30 m Black CEE plug (5-pin, 32 A)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

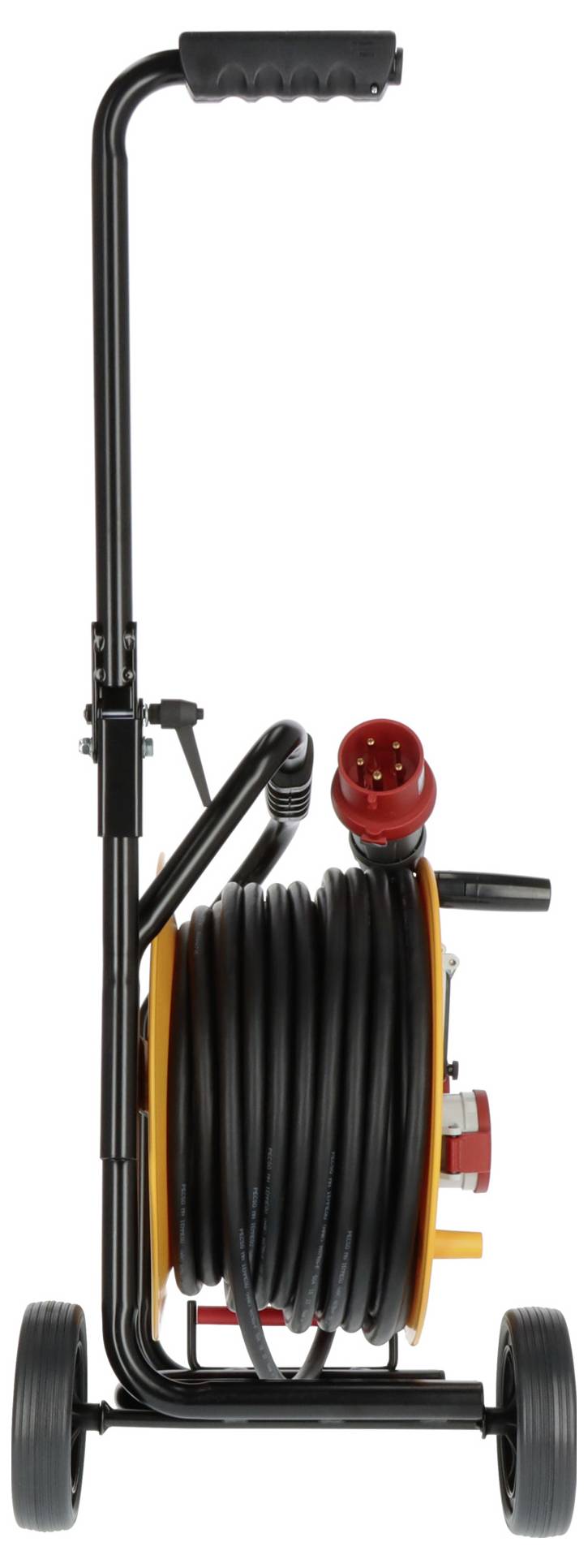

Brennenstuhl professional Brobusta CEE 2 FI IP44 cable reel with wagon
- Commercial/construction site cable drum with wagon
- CEE plug 400 V/32 A 5-pin
- 1 CEE-socket 400 V/32 A 5-pin
- 1 CEE-socket 400 V/16 A 5-pin
- 3 splash-protected earthing contact sockets 230 V
Technical specifications
- Product type
Cable reel
- Cable length
30 m
- Type A
CEE plug (5-pin, 32 A)
- Inputs
1
- Connector version
straight
- Type B
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 16 A)
PG socket
- Outlets
5
- Cable colour
Black
- Cable standard
H07RN-F 5G 4 mm²
- Used at
Outdoors
- Material
Steel
Rubber
- Factory colour
Yellow
Black
- Nominal input voltage
400 V
- Nominal current (details)
32 A
- Reel diameter
38 cm
- Weight
24.25 kg
- Protection
With 4-pin safety cut-off and overheating protection · RCD 30 mA · 1 safety device 400 V/16 A · 1 safety device 230 V/16 A.
IP44
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2303765 Brennenstuhl 1319200010 Cable reel 30 m Black CEE plug (5-pin, 32 A)
User & Safety Instructions
User & Safety Instructions 2303765 Brennenstuhl 1319200010 Cable reel 30 m Black CEE plug (5-pin, 32 A)
Description
The Brobusta cable reel with 30m cable length by Brennenstuhl convinces by its quality and safety in all areas. The cable drum is suitable for Ideal for continuous use in the open. It also convinces by the following features:
* RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
* CEE plug 400 V/32 A 5-pin
* 1 CEE socket 400 V/32 A 5-pin
* 1 CEE socket 400 V/16 A 5-pin
* 3 splash-proof earthing contact sockets 230 V
* RCD 30 mA
* 1 Automatic safety device 400 V/16 A.
* 1 Automatic safety device 230 V/16 A.
* Cable length: 30m
* CABLE DESIGNATION: H07RN-F 5G4.0
*Cable color: Black
* Drum diameter: 380 mm
* Protection class (IP): IP44
This text is machine translated.
* RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
* CEE plug 400 V/32 A 5-pin
* 1 CEE socket 400 V/32 A 5-pin
* 1 CEE socket 400 V/16 A 5-pin
* 3 splash-proof earthing contact sockets 230 V
* RCD 30 mA
* 1 Automatic safety device 400 V/16 A.
* 1 Automatic safety device 230 V/16 A.
* Cable length: 30m
* CABLE DESIGNATION: H07RN-F 5G4.0
*Cable color: Black
* Drum diameter: 380 mm
* Protection class (IP): IP44
This text is machine translated.
Features

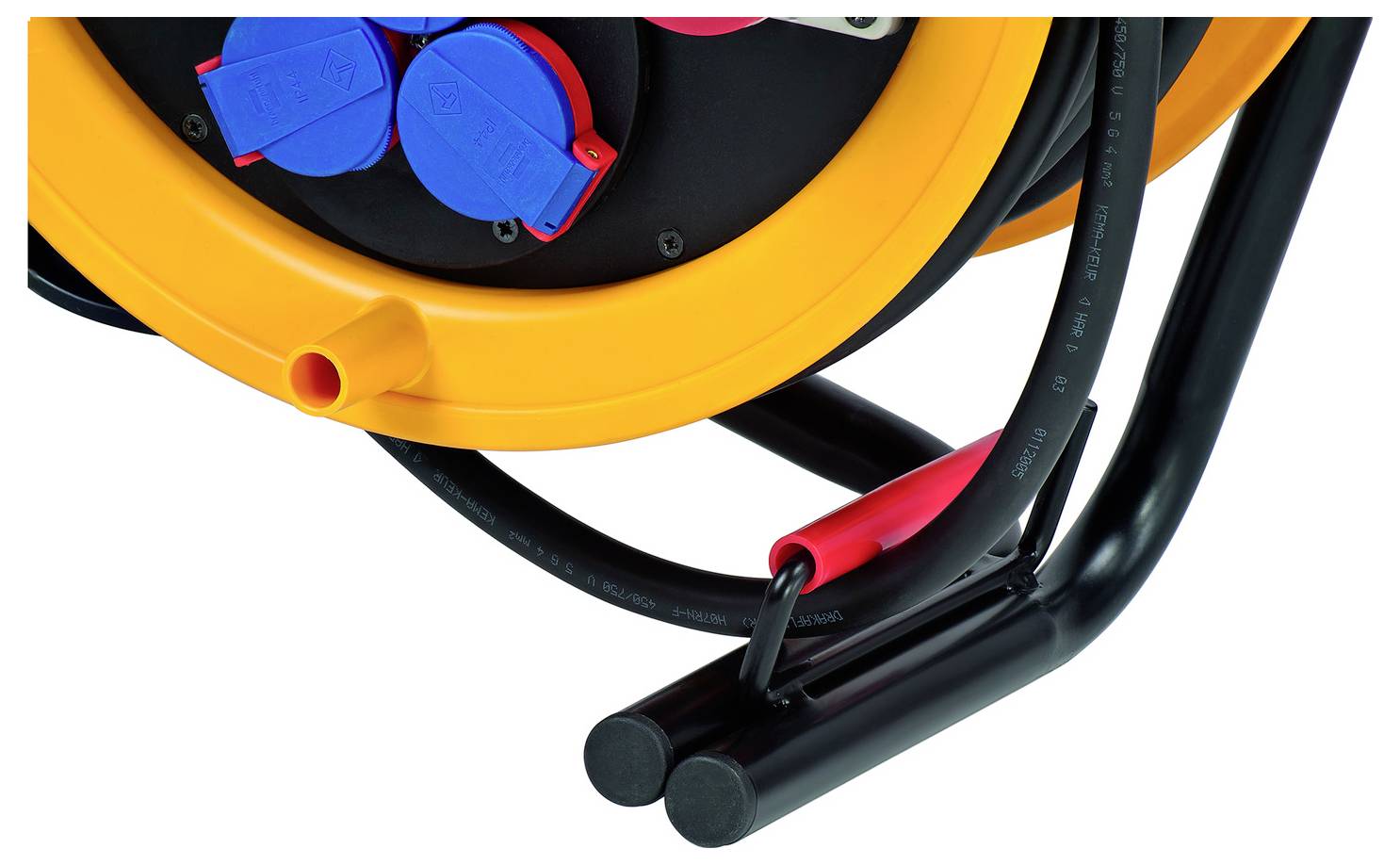

- Mobile cable reel on particularly sturdy steel pipe frame with 30m RN cable (H07RN-F 5G4.0) Ideal is suitable for continuous use outdoors, IP 44

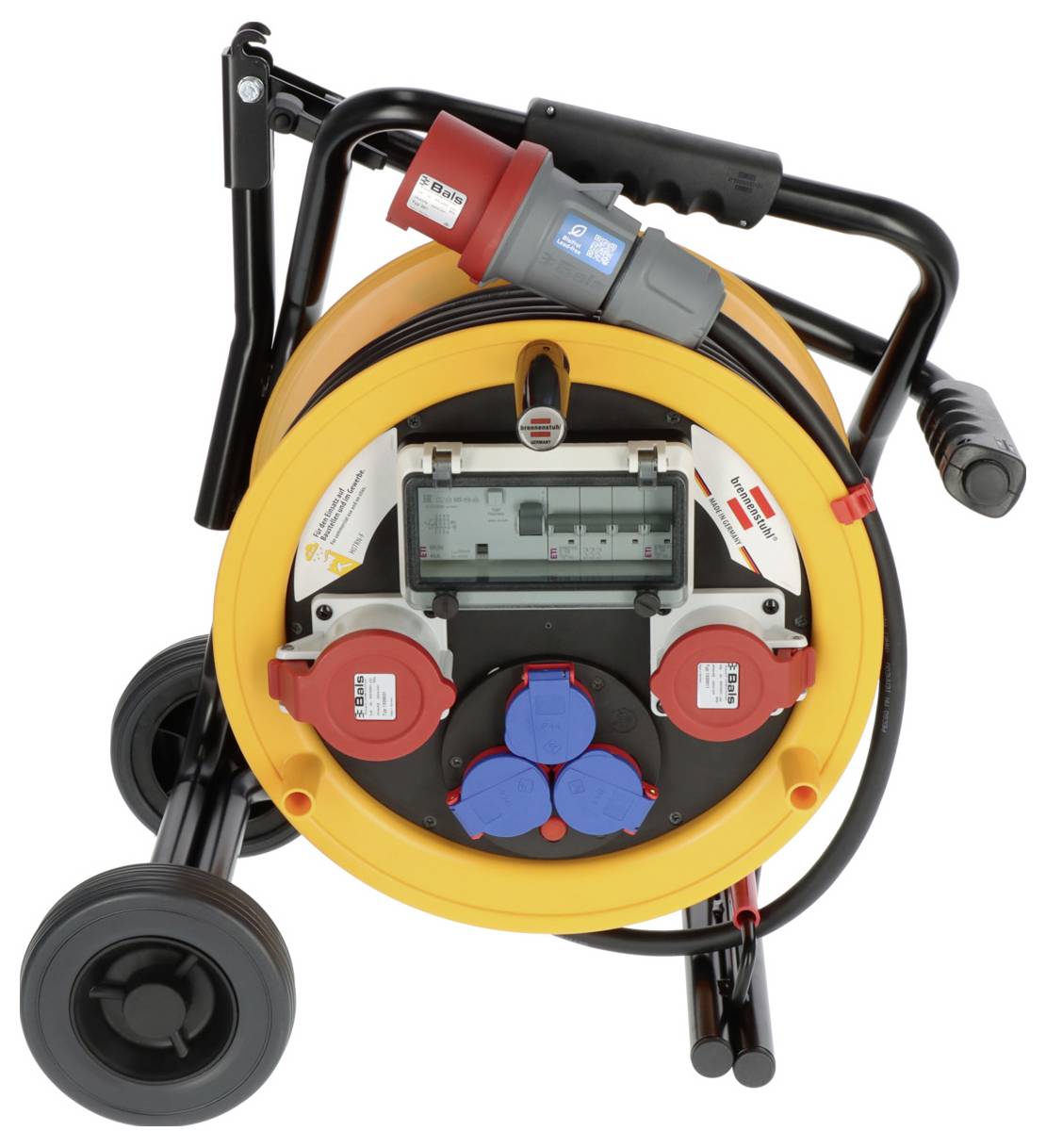

- Cable drum with CEE plug (400V/32A 5-pin), 2 CEE sockets (400V, 32A 5-pin / 400V, 16A 5-pin) and 3 splash-proof safety sockets (230V)
- Cable drum with RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
- Cable drum with 4-pole safety cut-off and overheating protection - additionally with FI-protection switch 30 mA (1 safety circuit breaker 400V/16A, 1 safety breaker 230V/16A)

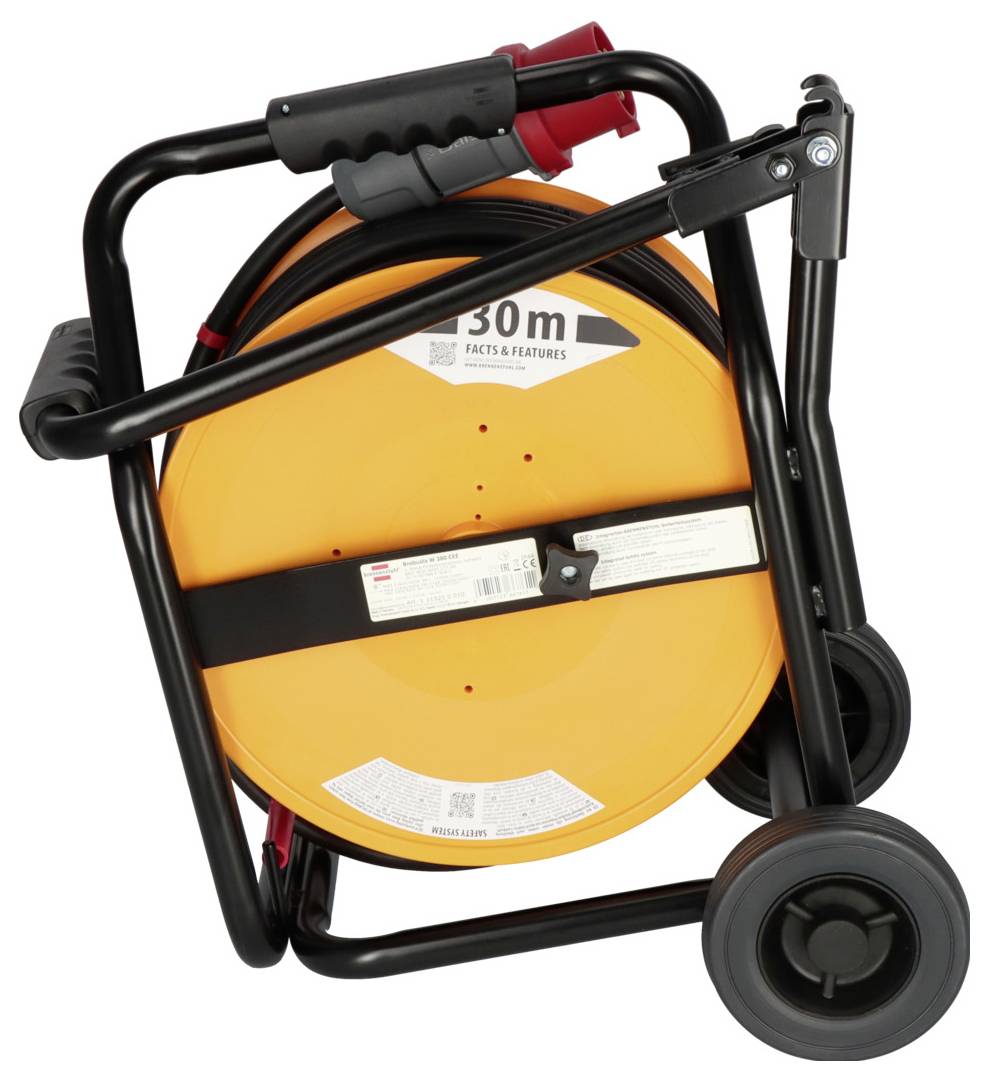

- Brobusta CEE 2 FI IP44 cable drum with 30m cable length with folding turning handle for comfortable rolling up
Scope of delivery
- Brobusta W 380 commercial/construction site cable drum with wagon
- User manual.
