Name: Brennenstuhl 1319250 Cable reel 25 m Black CEE plug (5-pin, 32 A)
Brand: Brennenstuhl
SKU: 2749856

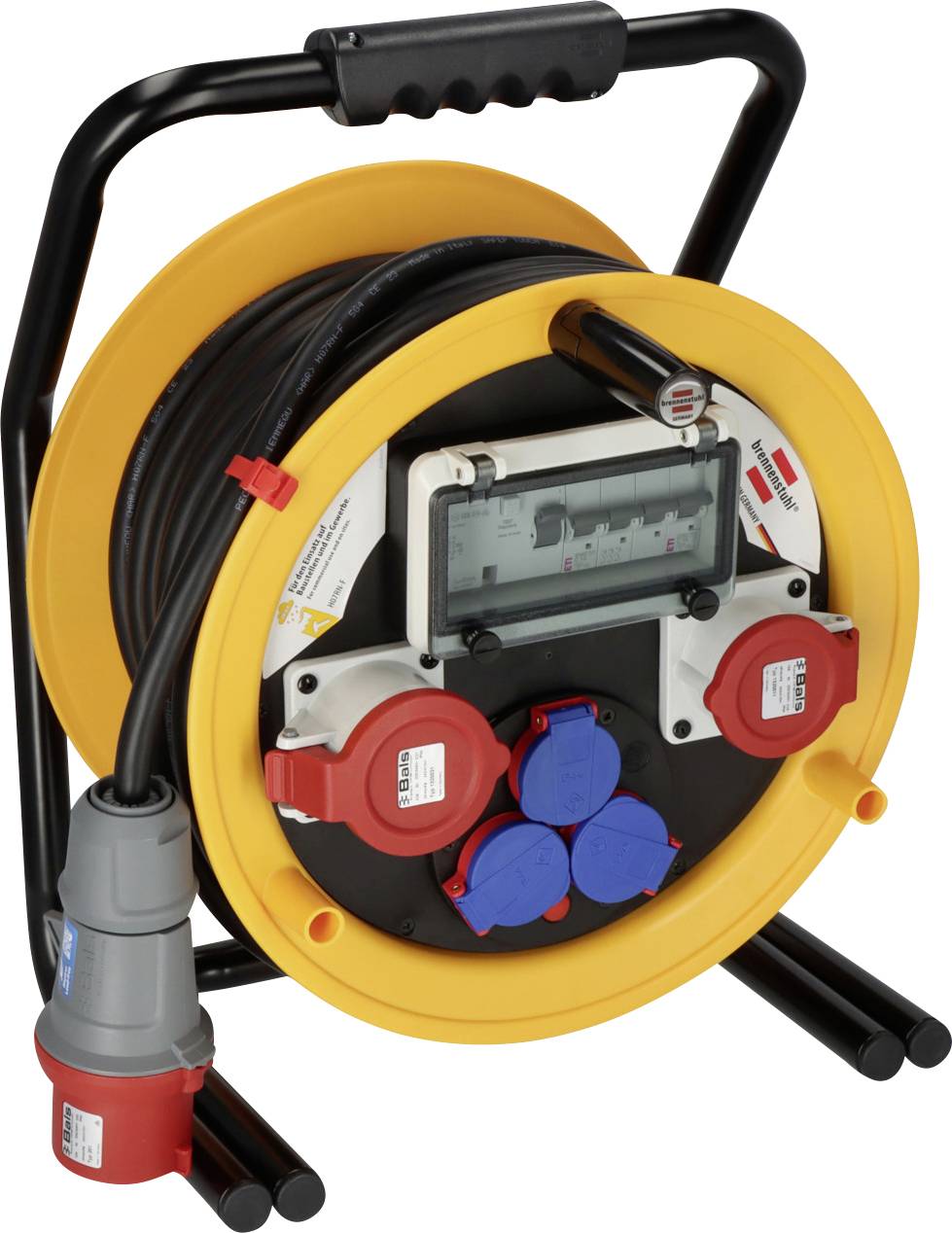

Portable cable reel with yellow drum and black handle, fitted with multiple red and blue electrical sockets and a gray/red plug on a white background.

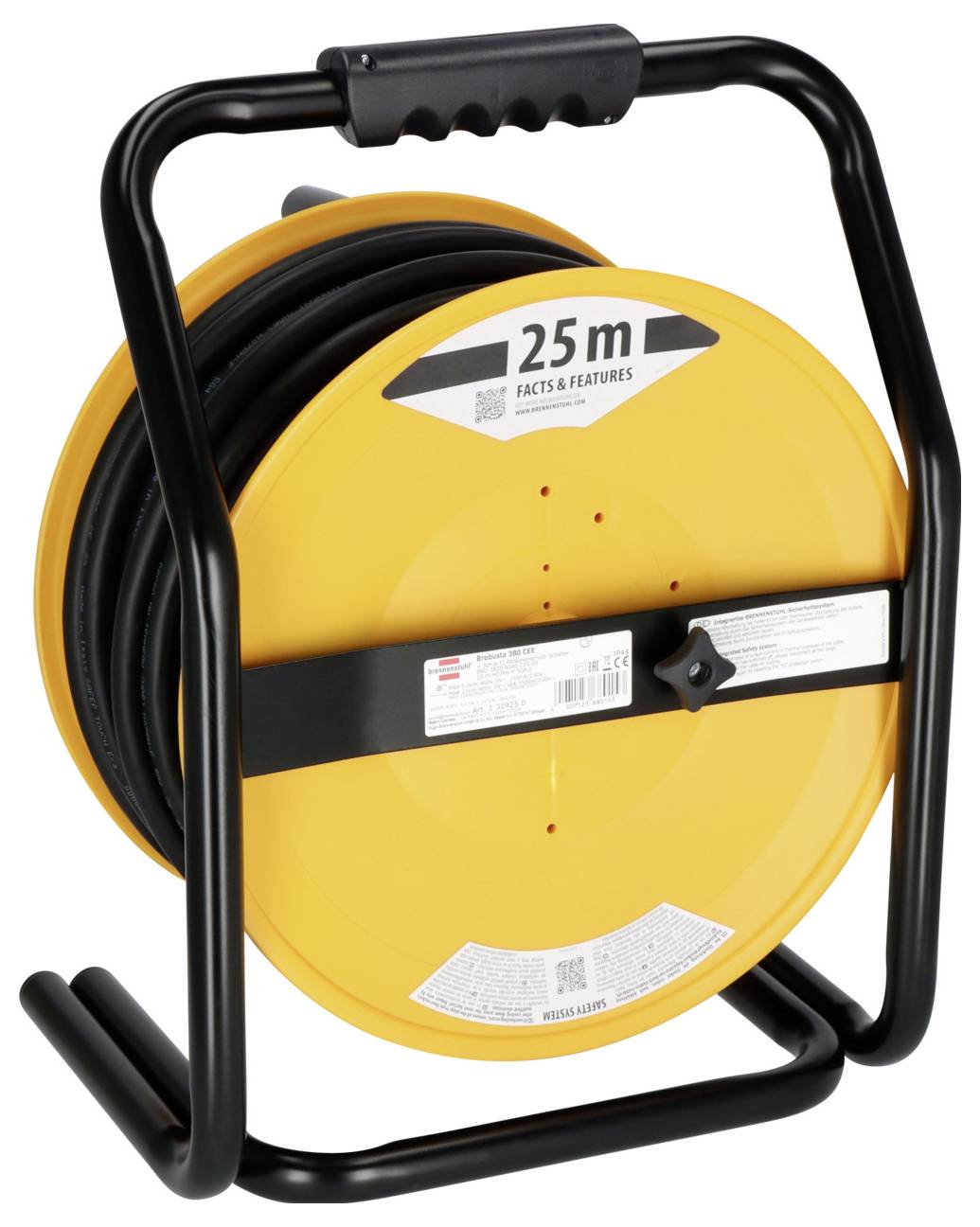

25 m hose reel on a black metal frame, with a yellow circular reel and coiled black hose.

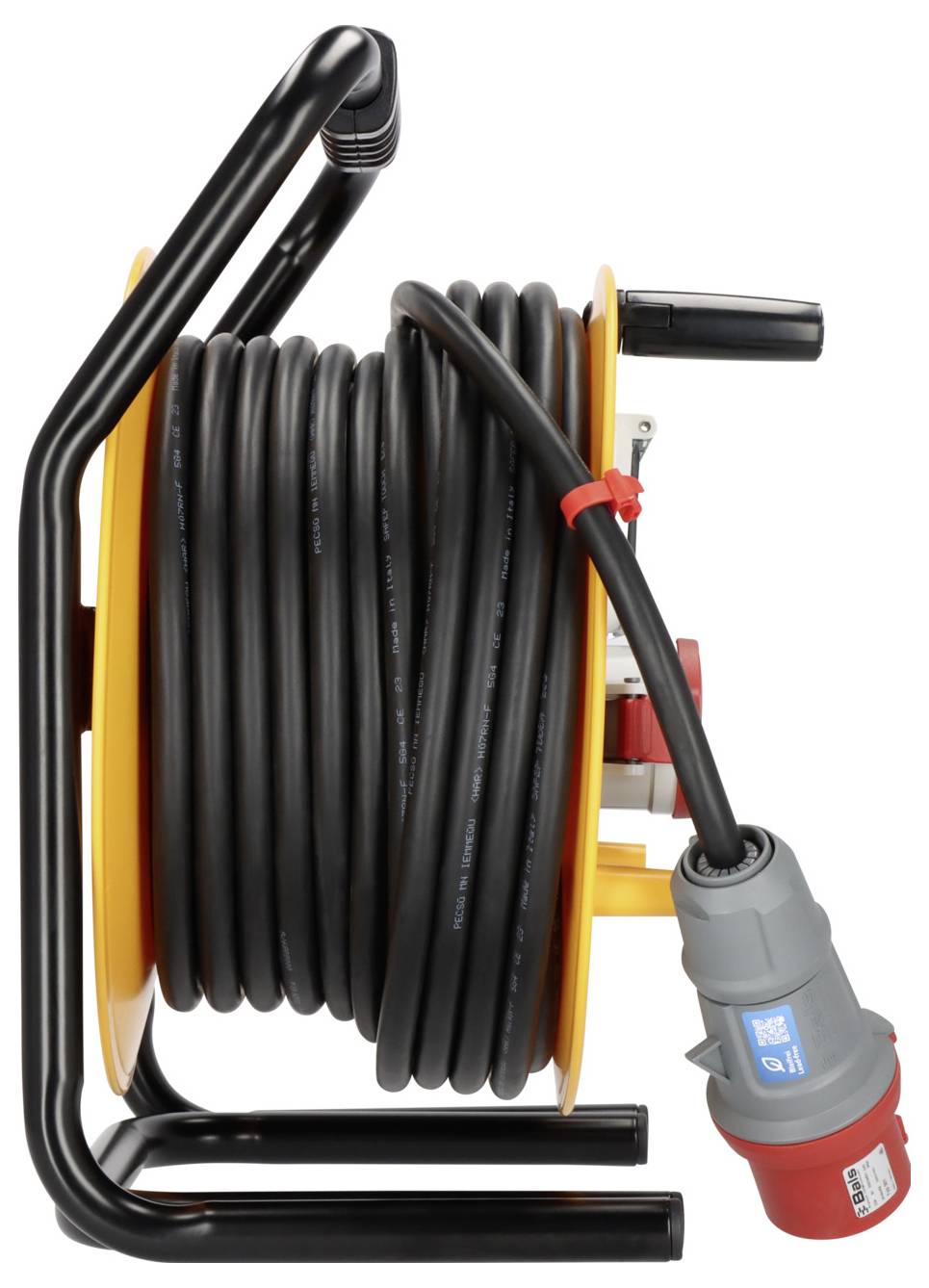

Portable cable reel with coiled black power cord and industrial plug attached on a yellow and black frame.

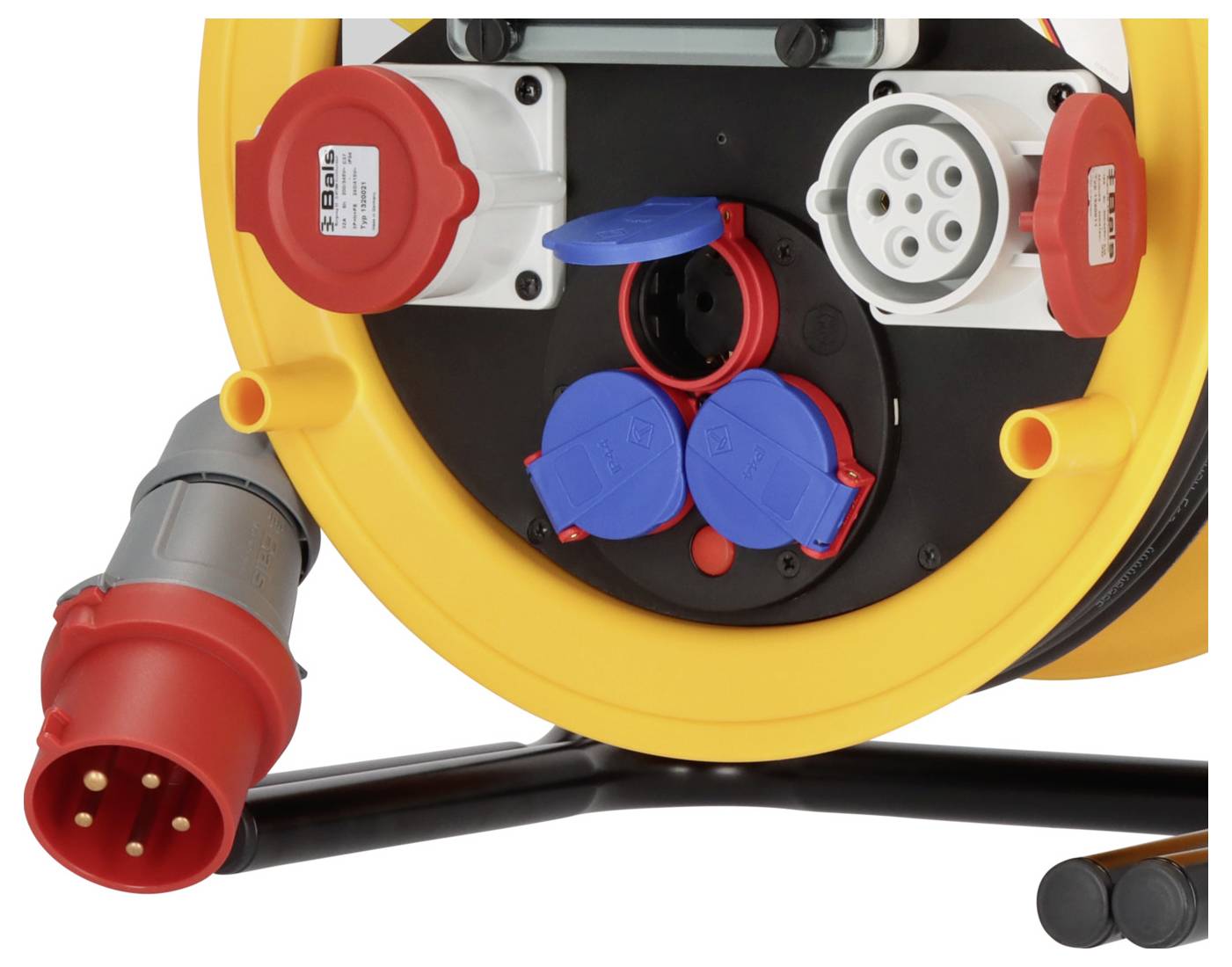

Close-up of an industrial electrical connector panel with red, blue and gray plug sockets on a yellow device.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brennenstuhl professional Brobusta 380 CEE 2 FI IP44 cable reel

CEE plug, 400 V/32 A 5-pin1 CEE socket 400 V/32 A 5-pin1 CEE socket 400 V/16 A 5-pin3 splashproof earthing contact socket-outlets 230 V

Technical specifications

Plug system: CEE 32 A 3P+N+PE (5p) 400 V

Product type: Cable reel

Cable length: 25 m

Type A: CEE plug (5-pin, 32 A)

Connector version: straight

Type B: CEE socket (5-pin, 32 A)
CEE socket (5-pin, 16 A)
PG socket

Outlets: 5

Cable colour: Black

Cable standard: H07RN-F 5G 4 mm²

Used at: Indoors
Outdoors

Material: Plastic

Factory colour: Black

Reel diameter: 38 cm

Weight: 16.7 kg

Protection: RCD 30 mA1 Safety-automatic 400 V/16 A1 Safety-automatic 230 V/16 A

: IP44

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2749856 Brennenstuhl 1319250 Cable reel 25 m Black CEE plug (5-pin, 32 A)

User & Safety Instructions

User & Safety Instructions 2749856 Brennenstuhl 1319250 Cable reel 25 m Black CEE plug (5-pin, 32 A)

Description

The Brobusta 380 CEE cable drum with 25m cable length by Brennenstuhl impresses through its quality and safety in all areas. The cable drum is suitable for Ideal for continuous use in the open. It also convinces by the following features:

* RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
* CEE plug 400 V/32 A 5-pin
* 1 CEE socket 400 V/32 A 5-pin
* 1 CEE socket 400 V/16 A 5-pin
* 3 splash-proof earthing contact sockets 230 V
* RCD 30 mA
* 1 Automatic safety device 400 V/16 A.
* 1 Automatic safety device 230 V/16 A.
* Cable length: 25m
* CABLE DESIGNATION: H07RN-F 5G4.0
* Cable color: Black
* Drum diameter: 380 mm
* Protection class (IP): IP44

This text is machine translated.

Features

Cable drum on an especially stable steel pipe frame with 25m RN cable (H07RN-F 5G4.0) Ideal is suitable for continuous use outdoors, IP44
Cable drum with CEE plug (400V/32A 5-pin), 2 CEE sockets (400V, 32A 5-pin / 400V, 16A 5-pin) and 3 splash-proof safety sockets (230V)
Cable drum with RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
Cable drum with 4-pole safety cut-off and overheating protection - additionally with FI-protection switch 30 mA (1 safety circuit breaker 400V/16A, 1 safety breaker 230V/16A)
Brobusta CEE 2 FI IP44 cable drum with 25m cable length with hinged turning handle for comfortable rolling up

Description

Features

Cable drum on an especially stable steel pipe frame with 25m RN cable (H07RN-F 5G4.0) Ideal is suitable for continuous use outdoors, IP44
Cable drum with CEE plug (400V/32A 5-pin), 2 CEE sockets (400V, 32A 5-pin / 400V, 16A 5-pin) and 3 splash-proof safety sockets (230V)
Cable drum with RN cable is approved for difficult construction conditions according to VDE 0100 Part 704
Cable drum with 4-pole safety cut-off and overheating protection - additionally with FI-protection switch 30 mA (1 safety circuit breaker 400V/16A, 1 safety breaker 230V/16A)
Brobusta CEE 2 FI IP44 cable drum with 25m cable length with hinged turning handle for comfortable rolling up
