Broadcom ASMT-M030 LED optics Water clear Transparent 30 ° No. of LEDs (max.): 1 For LEDs: Broadcom®-LED Type ASMT-Mxxx
EAN:
Part number:
Item no:
Product type
LED optics
Radiation angle
30 °
Type (LEDs)
Water clear
Factory colour
Transparent
Type
ASMT-M030
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 3.44
-15 %
€ 2.93
plus VAT.
Collimator lens for Avago-ASMT-Mxxx-LEDs
Technical specifications
- Factory colour
Transparent
- Product type
LED optics
- Radiation angle
30°
- Type (LEDs)
Water clear
- Type
ASMT-M030
- For LEDs
Broadcom®-LED Type ASMT-Mxxx

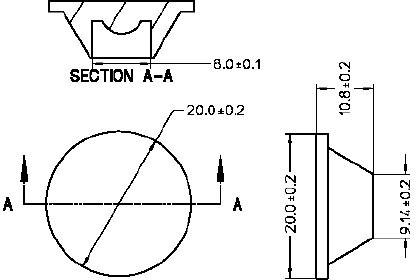

- Dim
(Ø x H) 20 mm x 10.8 mm
Doesn't apply
- No. of LEDs (max.)
1
- Material
Acrylic
- Height
10.8 mm
- (Ø)
20 mm
- Material (details)
Acrylic
Documents & Downloads
Datasheet
Datasheet 177038 Broadcom ASMT-M030 LED optics Water clear Transparent 30 ° No. of LEDs (max.): 1 For LEDs: Broadcom®-LED Type ASMT-Mxxx
User & Safety Instructions
User & Safety Instructions 177038 Broadcom ASMT-M030 LED optics Water clear Transparent 30 ° No. of LEDs (max.): 1 For LEDs: Broadcom®-LED Type ASMT-Mxxx
Description
The design as well as the acrylic material of the collimator lens makes possible an affectivity of big 85%. Suitable for all power LEDs of ASMT-Mxxx type from Avago.
Hints
Delivery without LED (please order separately).
