Brumberg 01-71018 01-71018 Low-voltage recessed light

Chrome recessed ceiling spotlight with a tilted adjustable lamp head and reflective inner housing

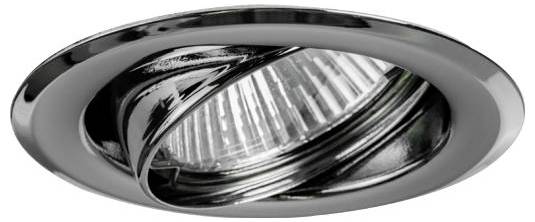

A recessed ceiling light with a chrome finish and adjustable directional feature, suitable for modern interiors.

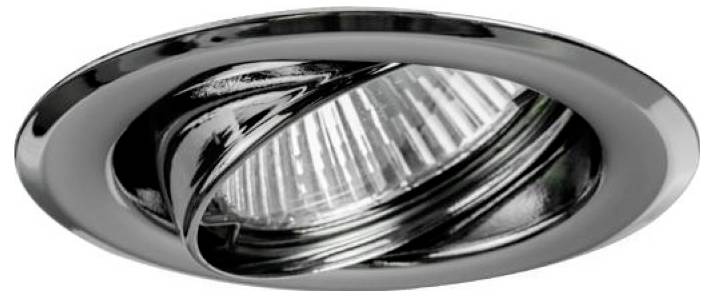

Chrome recessed adjustable spotlight with angled reflector and ridged bulb housing.

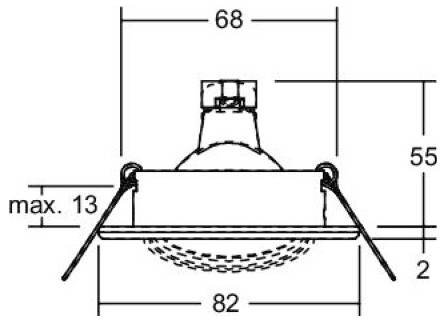

Technical diagram of a recessed light fixture with dimensions labeled 68, 55, 82, max. 13, and 2, showing the fixture’s size and mounting profile.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Protection class (IP) IP20
  • Protection class III
  • Nominal voltage: 12 V
  • Voltage type AC/DC
  • LED bulb, replaceable
  • Operating device: Electronic transformer
  • Energy efficiency class of light source according to EU directive 2019/2015: Not required
  • Light color: White
  • Adjustable color temperature: No.
  • Luminous flux can be set: No
  • Adjustable radiation angle: No.
  • Compatible with Apple HomeKit: No.
  • Compatible with Google Assistant: No.
  • Compatible with Amazon Alexa: No.
  • IFTTT support available: No.
  • Suitable for mounting on a panel: No.
  • Suitable for panel mounting: Yes
  • Suitable for wall mounting: No.
  • Suitable for suspended engine mounting: No.
  • Suitable for ceiling mounting: No.
  • Suitable for traverse installation: No.
  • Suitable for cable system: No.
  • Adjustable: Pivoting
  • With motion detector: No.
  • With light sensor: No.
  • With bulb: No.
  • Suitable for the number of bulbs: 1
  • Housing color: Chrome
  • Surface brushed: No.
  • With operating device: No.
  • Removable operating device: Yes
  • Dimmer 0-10 V: No
  • Dimmer 1-10 V: No
  • Dimming DALI-2: No.
  • DALI dimming: No.
  • Dimmer DMX: No
  • Dimmer DSI: No.
  • Dimmer potentiometer (built-in): No.
  • Dimming LineSwitch: No.
  • Dimmer manufacturer-specific: No.
  • Mains voltage modulation dimming: No.
  • Dimming Phase section: No.
  • Dimming leading edge: No.
  • Dimming programmable: No.
  • Dim. RF: No.
  • Dimming Sine Wave Reduction: No.
  • Dimming Touch and Dim: No.
  • Zigbee dimming: No.
  • Dimming with push-button: No.
  • Without dimmer function: No.
  • Light distribution: Symmetric
  • Light emission: Direct
  • Suitable for lamp output 13 W
  • Max. System power 13 W
  • Installation height/depth 55 mm
  • Installation diameter 68 mm
  • Covering of the lamp with thermal insulation material is possible: No.
  • Operation via Bluetooth: No.
  • Outer diameter: 82 mm
  • Cover material: Other
  • Suitable for rail mounting: No.
  • Version: GX5.3
Product type

Low-voltage recessed light

n.rel.

Documents & Downloads

Datasheet

Datasheet 3546042 Brumberg 01-71018 01-71018 Low-voltage recessed light

User & Safety Instructions

User & Safety Instructions 3546042 Brumberg 01-71018 01-71018 Low-voltage recessed light

Description

Panel-mounted emitter, GX5.3, chrome, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: GX5.3, Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Iron, protection class on the room side: According to DIN EN 60529, protection class: (EN 61140) III, voltage: 12V, power: 13 W, number of bulbs / sockets: 1 pieces, adjustability: Variable, without operating device, type of dimming: Dependent on the operating device.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
