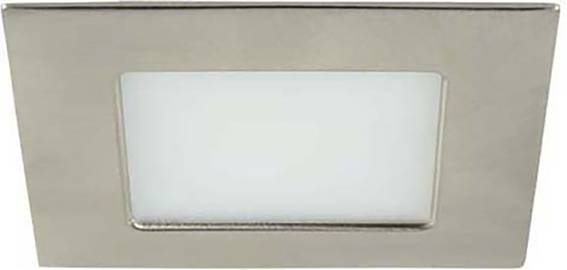

Brumberg 12128153 12128153 LED recessed light LED (monochrome) w/o 5 W Nickel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg lamps LED recessed lamp 12V DC 3000K, nickel 128153
- Power= 5 W Total luminous flux= 375 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 375 lm
- Operating device: Voltage-controlled LED operating device
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
5 W
5 W
375 lm
- Total luminous flux
375 lm
3000 K
- Colour
White
- Type
Square
- Radiation angle
80°
- Recess diameter
68 mm
- Recess depth
14 mm
IP44
- Protection class
III
- Factory colour
Nickel
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 75 x 75 x 3 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
75 mm
- Height
3 mm
- Length
75 mm
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 2293319 Brumberg 12128153 12128153 LED recessed light LED (monochrome) w/o 5 W Nickel
User & Safety Instructions
User & Safety Instructions 2293319 Brumberg 12128153 12128153 LED recessed light LED (monochrome) w/o 5 W Nickel
Description
LED recessed down light IP44, nickel, square. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Type of mounting: Mounting, Mounting location: Ceiling mounting, Material: Die-cast aluminum / plastic, Protection type: According to DIN EN 60529: IP44*, Protection class: (EN 61140) III, Voltage: 12V, Power: 5W, Number of bulbs / sockets: 1.0 pcs, Light current: 375lm, Color temperature: 3000K, Light color: White, Angle of radiation: 60°, Adjustable: Not adjustable, without operating device, Light
