Brumberg 12130023 12130023 LED recessed light LED (monochrome) w/o 8 W Chrome
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

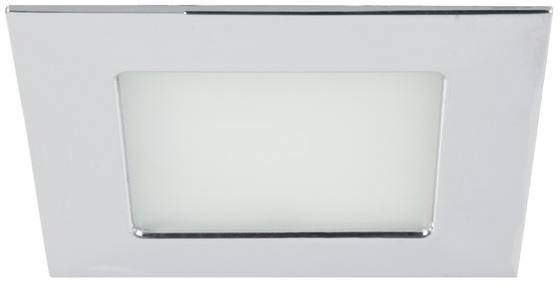

Brumberg Luminaires LED recessed light 12V DC 3000K, chrome 12130023
- Power= 8 W Total luminous flux= 525 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1:525 lm
- Operating device: Voltage-controlled LED operating device
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
8 W
8 W
525 lm
- Total luminous flux
525 lm
3000 K
- Colour
White
- Type
Square
- Radiation angle
80°
- Recess diameter
79 mm
- Recess depth
14 mm
IP44
- Protection class
III
- Factory colour
Chrome
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 85 x 85 x 3 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
85 mm
- Height
3 mm
- Length
85 mm
Documents & Downloads
Datasheet
Datasheet 2294949 Brumberg 12130023 12130023 LED recessed light LED (monochrome) w/o 8 W Chrome
User & Safety Instructions
User & Safety Instructions 2294949 Brumberg 12130023 12130023 LED recessed light LED (monochrome) w/o 8 W Chrome
Description
LED recessed down light IP44, chrome, square. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Type of mounting: Panel mounting, Mounting location: Ceiling mounting, Material: Die-cast aluminum / plastic, Protection type: According to DIN EN 60529: IP44*, Protection class: (EN 61140) III, Voltage: 12V, Power: 7.5W, Number of bulbs / sockets: 1.0 pcs, Light current: 525lm, Color temperature: 3000K, Light color: White, Radiation angle: 60°, Adjustable: Not adjustable, without operating device,
This text is machine translated.
This text is machine translated.
