Brumberg 12164153 12164153 LED recessed light LED (monochrome) w/o 3 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED Downlight 12V DC 3000K 12164153
- Power= 3 W Total luminous flux= 180 lm Colour temperature= 3000 K White
Technical specifications
- Operating device: Voltage-controlled LED operating device
- With bulb: Yes
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- Operating voltage
12 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
3 W
3 W
180 lm
- Total luminous flux
180 lm
3000 K
- Colour
White
- Type
Circular
- Radiation angle
120°
- Recess diameter
56 mm
- Recess depth
4 mm
- Outside Ø
75 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
6 mm
- Depth
3.5 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291961 Brumberg 12164153 12164153 LED recessed light LED (monochrome) w/o 3 W White
User & Safety Instructions
User & Safety Instructions 2291961 Brumberg 12164153 12164153 LED recessed light LED (monochrome) w/o 3 W White
Description

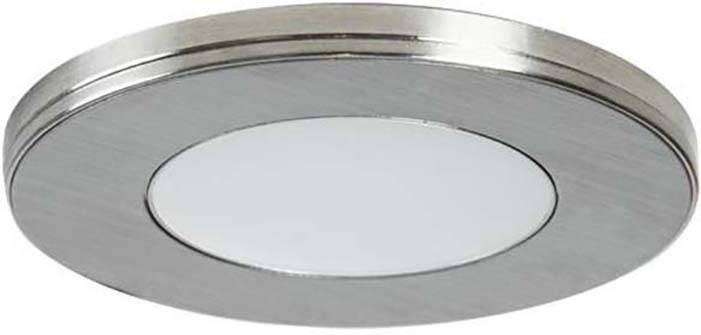

LED installation / installation downlight, round. Designed in a compact design for quick mounting without tools for ceiling installation. This lamp is to be used both as a built-in (hole cut-out: 56 mm, installation depth: 3.5 mm, installation height: 2.2 mm) and as an attached lamp (total height: 5.9 mm) through the included attachment housing. Outer edge nickel matt, magnetically attached shade in color according to the article table. Socket: None, Type of mounting: Mounting, Mounting location: Ceiling mounting, Material: Aluminum / steel / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) III, Voltage: 12V, Power: 2.6W, Number of bulbs / sockets: 1.0 pcs, Light current: 180lm, Color temperature: 3000K, Light color: White, Radiation angle: 120°, Adjustable: Not adjustable, without operating device, Light output:
