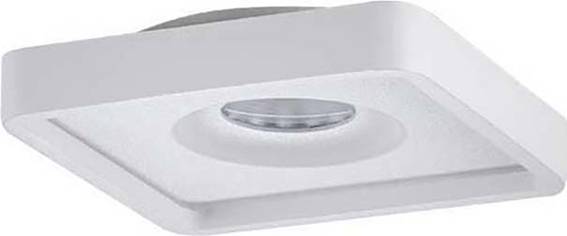

Brumberg 12227173 12227173 LED recessed light LED (monochrome) Built-in LED 11 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg luminaries LED recessed lamp 3000K white 12227173
- Power= 11 W Total luminous flux= 960 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 830 lm
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: Yes
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 90-100
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct/indirect
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent plastic
- Product type
LED recessed light
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
10 W
11 W
960 lm
- Total luminous flux
960 lm
3000 K
- Colour
White
- Type
Square
- Protection screen
Clear
- Radiation angle
40°
- Light features
Dimmable
- Recess diameter
68 mm
- Recess depth
36 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 100 x 100 x 23 mm
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
100 mm
- Height
23 mm
- Length
100 mm
Documents & Downloads
Datasheet
Datasheet 2294384 Brumberg 12227173 12227173 LED recessed light LED (monochrome) Built-in LED 11 W White
User & Safety Instructions
User & Safety Instructions 2294384 Brumberg 12227173 12227173 LED recessed light LED (monochrome) Built-in LED 11 W White
Description
LED installation downlight QUBIC with indirect component, white. Designed in a compact design for quick mounting without tools for ceiling installation. LED ceiling recessed downlight with indirect light component. Luminous flux directly 830 lm, luminous flux indirectly 130 lm. Socket: Plug&Play, mounting type: Installation, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 350 mA, power: 11W, number of bulbs / sockets: 1.0 pcs, luminous flux: 960lm, color temperature: 3000K, light color: White, angle of radiation: 40°, adjustability: Not adjustable, without operating device, type of dimming: Other
This text is machine translated.
This text is machine translated.
