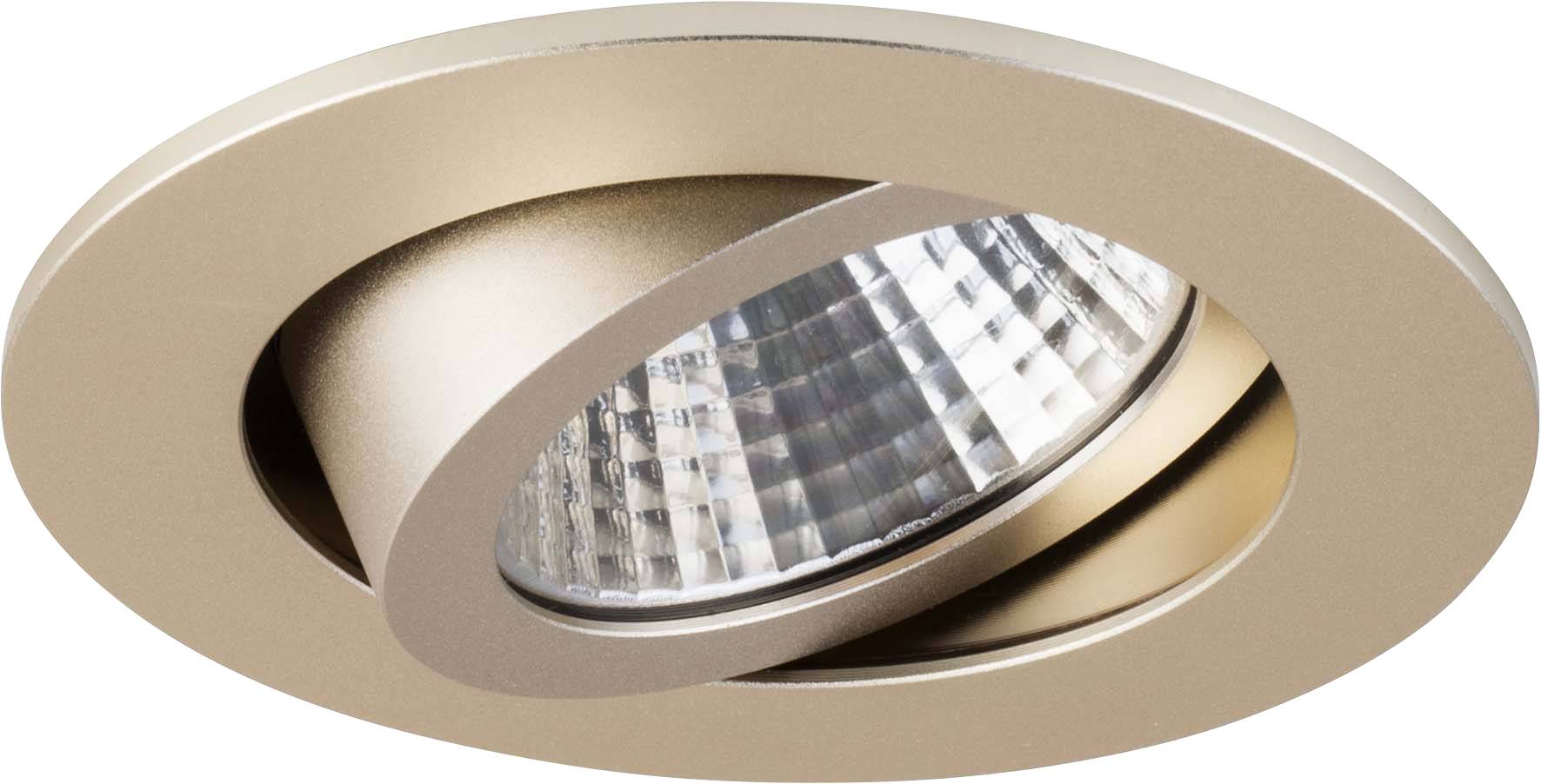

Brumberg 12261633 12261633 LED recessed light LED (monochrome) 7 W Champagne
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg lights LED-mounted emitter 2700K 350mA champagne tag. 12261633
- Power= 7 W Total luminous flux= 740 lm Colour temperature= 2700 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 710 lm
- Operating device: LED operating device current-controlled
- Screen workstation suitable according to EN 12464-1: no.
- Colour temperature: 2700 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent plastic
- Product type
LED recessed light
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
7 W
710 lm
- Total luminous flux
740 lm
2700 K
- Colour
White
- Type
Circular
- Protection screen
Clear
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
38 mm
- Outside Ø
82 mm
IP20
- Protection class
III
- Factory colour
Champagne
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature range
2700 K
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2293355 Brumberg 12261633 12261633 LED recessed light LED (monochrome) 7 W Champagne
User & Safety Instructions
User & Safety Instructions 2293355 Brumberg 12261633 12261633 LED recessed light LED (monochrome) 7 W Champagne
Description
LED Recessed Lighting, champagne, Round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 350 mA, power: 7W, number of bulbs / sockets: 1.0 pcs, luminous flux: 740lm, color temperature: 2700K, light color: White, angle of radiation: 38°, adjustability: Swivel, without operating device,
