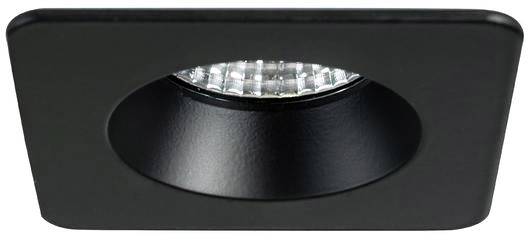

Brumberg 12267083 12267083 LED recessed light LED (monochrome) Bulb cannot be changed 6 W Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg LAMP LED-BUILD-IN LAMP 350mA 2700K sw 12267083
- Power= 6 W Total luminous flux= 540 lm Colour temperature= 2700 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 540 lm
- Operating device: LED operating device current-controlled
- Screen workstation suitable according to EN 12464-1: Yes
- With bulb: Yes
- Colour temperature: 2700 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent glass
- Product type
LED recessed light
- No. of bulbs
1
Bulb cannot be changed
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
540 lm
- Total luminous flux
540 lm
2700 K
- Colour
White
- Type
Square
- Protection screen
Clear
- Radiation angle
40°
- Recess diameter
68 mm
- Recess depth
58 mm
IP54
- Protection class
III
- Factory colour
Black
- Material
Aluminium
n.rel.
- Dim
(L x W) 82 mm x 82 mm
No
- Light bulb included
Yes
- Colour temperature range
2700 K
- Width
82 mm
- Length
82 mm
Documents & Downloads
Datasheet
Datasheet 2293187 Brumberg 12267083 12267083 LED recessed light LED (monochrome) Bulb cannot be changed 6 W Black
User & Safety Instructions
User & Safety Instructions 2293187 Brumberg 12267083 12267083 LED recessed light LED (monochrome) Bulb cannot be changed 6 W Black
Description
LED-Downlight IP54, black, square. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / glass, protection class: According to DIN EN 60529: IP54*, protection class: (EN 61140) III, current: 350 mA, power: 6W, number of bulbs / sockets: 1.0 pcs, luminous flux: 540lm, color temperature: 2700K, light color: White, angle of radiation: 38°, adjustability: Not adjustable, without operating device,
This text is machine translated.
This text is machine translated.
