Brumberg 12295183 LED recessed light LED (monochrome) Black

Black square recessed ceiling light fixture with a tilted circular LED spotlight insert on a white background
Black square recessed ceiling spotlight with a tilted round lamp opening and reflective inner lens on a white background
Lighting beam diagram showing illumination E0(0°) [lx] decreasing with distance Ø (m): 1306.3 at 1.0 m to 52.3 at 5.0 m.
Polar luminous intensity diagram showing a narrow forward beam, with concentric angle markings from 30° to 90° and intensity labels 530, 1060, 1590, 2120 cd.

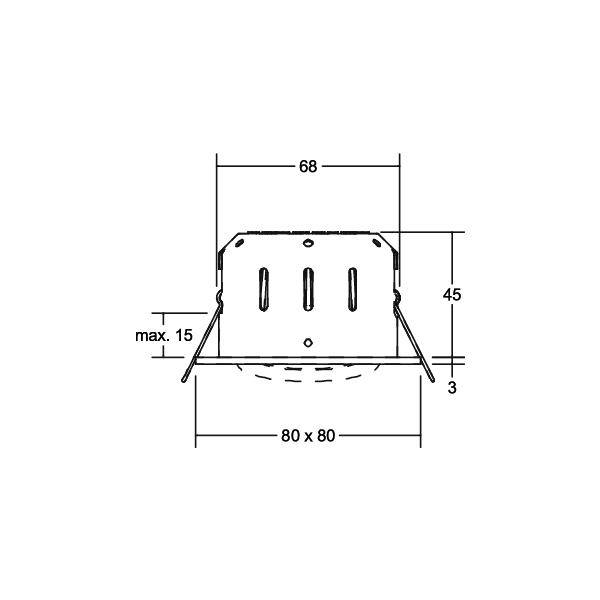

Dimensioned technical drawing of a square metal bracket, 68 wide and 45 high, fitting an 80 x 80 opening, with max. 15 side clearance.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Total luminous flux= 540 lm Colour temperature= 3000 K White

Technical specifications

Product type

LED recessed light

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

6 W

Total luminous flux

540 lm

3000 K

Colour

White

Protection screen

Clear

Radiation angle

40°

Light features

Recess mount option

Ceiling mount option

Swivelling

Direct light emission

Recess diameter

68 mm

Recess depth

45 mm

Protection class

III

Factory colour

Black

Material

Aluminium

Plastic

n.rel.

Dim

(L x W x H) 80 x 80 x 3 mm

No

Light bulb included

Yes

Colour temperature range

3000 K

Width

80 mm

Height

3 mm

Length

80 mm

Type

powder-coated

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3830607 Brumberg 12295183 LED recessed light LED (monochrome) Black

Datasheet 3830607 Brumberg 12295183 LED recessed light LED (monochrome) Black

User & Safety Instructions

User & Safety Instructions 3830607 Brumberg 12295183 LED recessed light LED (monochrome) Black

Description

LED panel-mounted emitter, black structure, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Plug & play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / steel / PMMA, protection class: Room-side: According to DIN EN 60529: IP20, protection class: (EN 61140) III, power: 3,000 W, number of lights / sockets: 36 piece, light current: 540 lm, color temperature: 6 K, light color: White, angle of radiation: 1°, approx. Adjustable: swivel, without operating device, dimming: dependent on the operating device, type of dimming: dependent on the operating device.

This text is machine translated.
