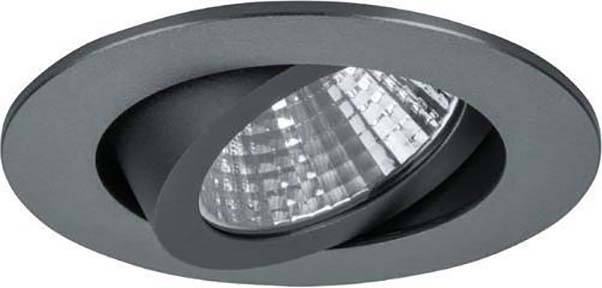

Brumberg 12361254 12361254 LED recessed light LED (monochrome) 7 W Aluminium
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN RADIATOR 350mA 4000K alu Matt 12361254
- Power= 7 W Total luminous flux= 770 lm Colour temperature= 4000 K White
Technical specifications
- Operating device: LED operating device current-controlled
- Colour temperature: 4000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent plastic
- Product type
LED recessed light
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
7 W
770 lm
- Total luminous flux
770 lm
4000 K
- Colour
White
- Type
Circular
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
32 mm
- Outside Ø
82 mm
IP20
- Protection class
III
- Factory colour
Aluminium
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature range
4000 K
Documents & Downloads
Datasheet
Datasheet 2294529 Brumberg 12361254 12361254 LED recessed light LED (monochrome) 7 W Aluminium
User & Safety Instructions
User & Safety Instructions 2294529 Brumberg 12361254 12361254 LED recessed light LED (monochrome) 7 W Aluminium
Description
LED installation spotlight, aluminum, round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 350 mA, power: 7W, number of bulbs / sockets: 1.0 pcs, luminous flux: 770lm, color temperature: 4000K, light color: White, angle of radiation: 38°, adjustability: Swivel, without operating device,
