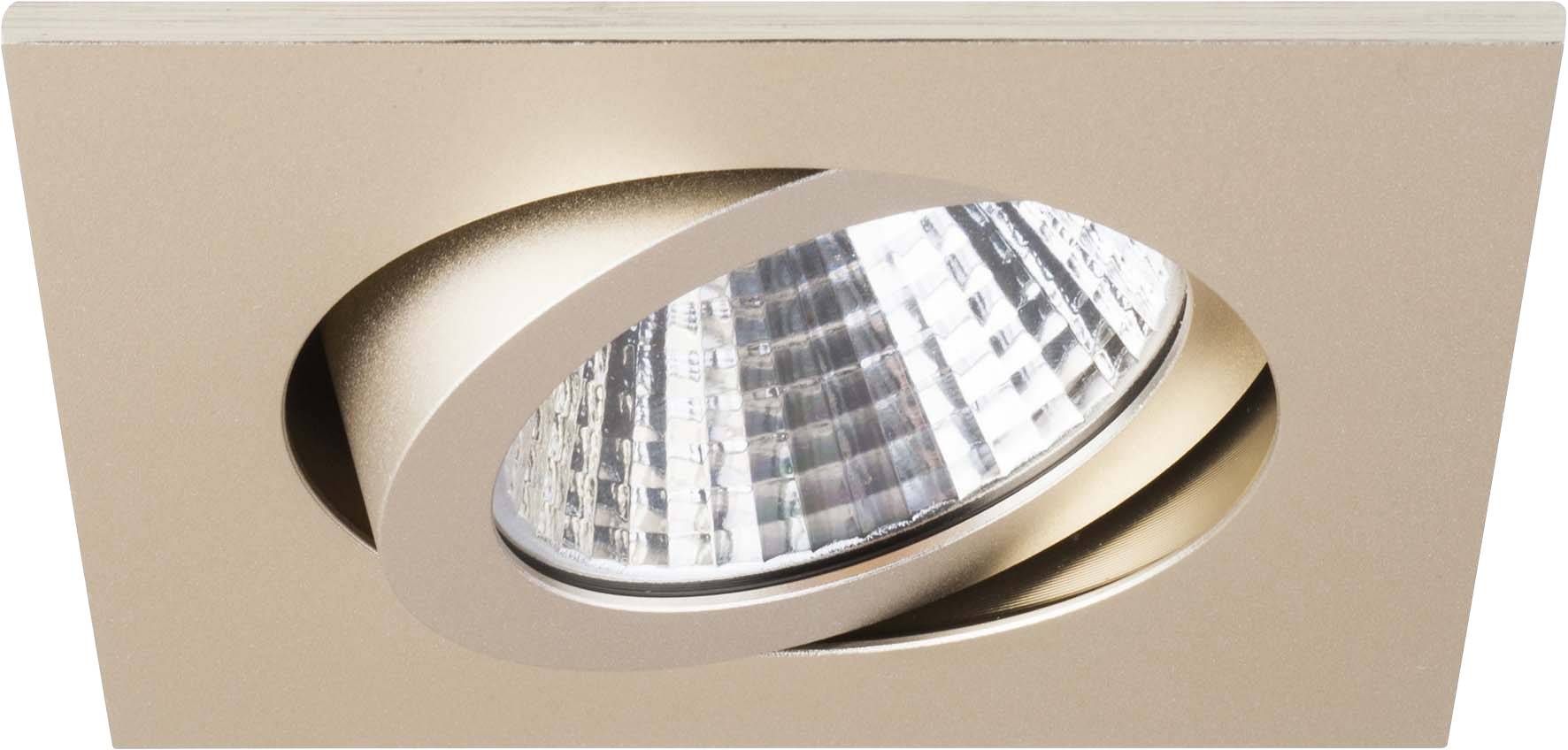

Brumberg 12362633 12362633 LED recessed light LED (monochrome) 7 W Champagne
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED Recessed Spotlights 350mA, cham. 12362633
- Power= 7 W Total luminous flux= 740 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 750 lm
- Operating device: LED operating device current-controlled
- Screen workstation suitable according to EN 12464-1: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent plastic
- Product type
LED recessed light
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
7 W
740 lm
- Total luminous flux
740 lm
3000 K
- Colour
White
- Type
Square
- Protection screen
Clear
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
36 mm
IP20
- Protection class
III
- Factory colour
Champagne
- Material
Aluminium
n.rel.
- Dim
(L x W) 82 mm x 82 mm
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
82 mm
- Length
82 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2298042 Brumberg 12362633 12362633 LED recessed light LED (monochrome) 7 W Champagne
User & Safety Instructions
User & Safety Instructions 2298042 Brumberg 12362633 12362633 LED recessed light LED (monochrome) 7 W Champagne
Description
LED Recessed Lighting, champagne, Square. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 350 mA, power: 7W, number of bulbs / sockets: 1.0 pcs, luminous flux: 740lm, color temperature: 3000K, light color: White, angle of radiation: 38°, adjustability: Swivel, without operating device,
This text is machine translated.
This text is machine translated.
