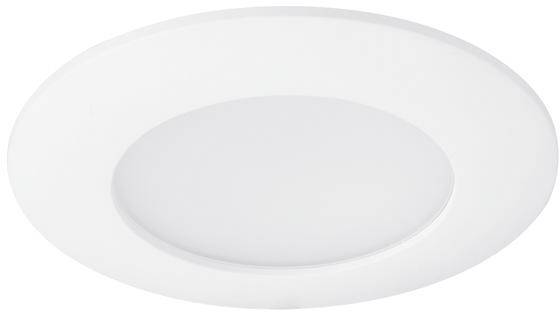

Brumberg 12366073 12366073 LED recessed light LED (monochrome) Built-in LED 10 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg lamps LED recessed lamp 350mA 3000K, IP54 12366073
- Power= 10 W Total luminous flux= 750 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 750 lm
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
10 W
10 W
750 lm
- Total luminous flux
750 lm
- Colour
White
- Type
Circular
- Radiation angle
90°
- Recess diameter
90 mm
- Recess depth
30 mm
- Outside Ø
109 mm
IP54
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Height
7 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2295152 Brumberg 12366073 12366073 LED recessed light LED (monochrome) Built-in LED 10 W White
User & Safety Instructions
User & Safety Instructions 2295152 Brumberg 12366073 12366073 LED recessed light LED (monochrome) Built-in LED 10 W White
Description
LED-Downlight IP54, white, round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP54*, protection class: (EN 61140) III, current: 350 mA, power: 10W, number of bulbs / sockets: 1.0 pcs, luminous flux: 750lm, color temperature: 3000K, light color: White, angle of radiation: 90°, adjustability: Not adjustable, without operating device,
