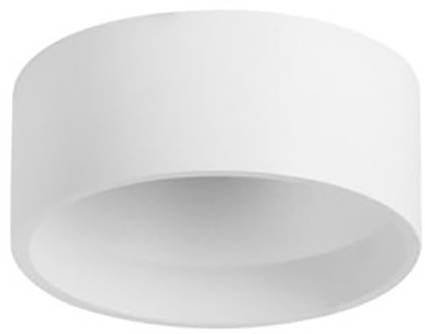

Brumberg 12391173 12391173 LED recessed light LED (monochrome) Bulb cannot be changed 9 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED Downlight 500mA 3000K 12391173
- Power= 9 W Total luminous flux= 730 lm Colour temperature= 3000 K White
Technical specifications
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent plastic
- Product type
LED recessed light
- No. of bulbs
1
Bulb cannot be changed
- Bulb type
LED (monochrome)
- Rating per bulb
9 W
9 W
730 lm
- Total luminous flux
730 lm
3000 K
- Colour
White
- Type
Circular
- Protection screen
Clear
- Radiation angle
37°
- Light features
Direct light emission
- Recess diameter
68 mm
- Recess depth
55 mm
IP20
- Protection class
III
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature range
3000 K
Documents & Downloads
Datasheet
Datasheet 2294167 Brumberg 12391173 12391173 LED recessed light LED (monochrome) Bulb cannot be changed 9 W
User & Safety Instructions
User & Safety Instructions 2294167 Brumberg 12391173 12391173 LED recessed light LED (monochrome) Bulb cannot be changed 9 W
Description
LED recessed light IMPLEMENT, round. Designed in a compact design for quick mounting without tools for ceiling installation. Mounting type: Installation, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 500 mA, power: 8.9W, number of bulbs / sockets: 1.0 pcs, luminous flux: 730lm, color temperature: 3000K, light color: White, angle of radiation: 37°, adjustability: Not adjustable, without operating device,
This text is machine translated.
This text is machine translated.
