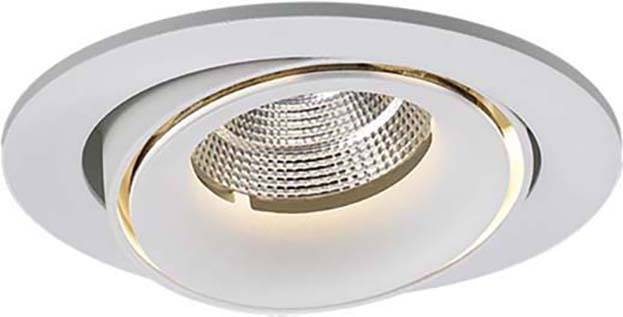

Brumberg 12417173 12417173 LED recessed light LED (monochrome) w/o 9 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg luminaries LED recessed luminaries 3000K white 12417173
- Power= 9 W Total luminous flux= 700 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 700 lm
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: Yes
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 90-100
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- LED nominal current at constant current 500 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent plastic
- Product type
LED recessed light
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
9 W
9 W
700 lm
- Total luminous flux
700 lm
3000 K
- Colour
White
- Type
Circular
- Protection screen
Clear
- Radiation angle
40°
- Light features
Pivoted
Swivelling
- Recess diameter
98 mm
- Recess depth
60 mm
- Outside Ø
105 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
Documents & Downloads
Datasheet
Datasheet 2294385 Brumberg 12417173 12417173 LED recessed light LED (monochrome) w/o 9 W White
User & Safety Instructions
User & Safety Instructions 2294385 Brumberg 12417173 12417173 LED recessed light LED (monochrome) w/o 9 W White
Description
LED recessed light CIRCLE, with circumferential light joint, white. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) III, Current: 500 mA, Power: 9.3W, Number of bulbs / sockets: 1.0 pcs, Light current: 700lm, Color temperature: 3000K, Light color: White, Radiation angle: 32°, Adjustable: Rotatable and swiveling, without operating device, Type of dimming: Other
