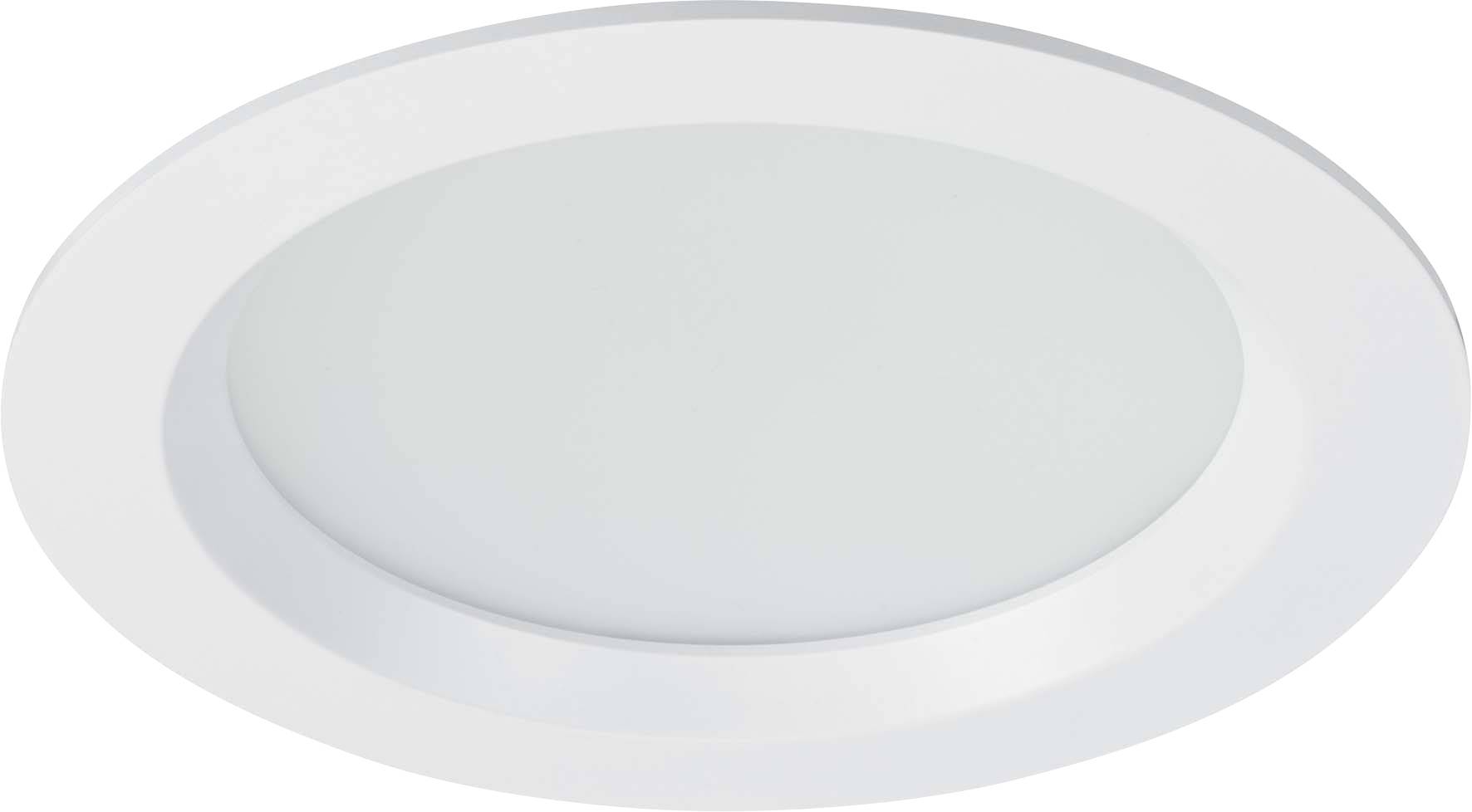

Brumberg 12425074 12425074 LED recessed light LED (monochrome) w/o 15 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg 24V DC TW white LED recessed light 12425074
- Power= 15 W Total luminous flux= 980 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 980 lm
- Operating device: Voltage-controlled LED operating device
- With bulb: Yes
- Color temperature 2700..6000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- Operating voltage
24 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
15 W
15 W
980 lm
- Total luminous flux
980 lm
- Colour
White
- Type
Circular
- Radiation angle
100°
- Light features
Recess mount option
- Recess diameter
155 mm
- Recess depth
52 mm
- Outside Ø
171 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
6000 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 6000 K
Documents & Downloads
Datasheet
Datasheet 2294516 Brumberg 12425074 12425074 LED recessed light LED (monochrome) w/o 15 W White
User & Safety Instructions
User & Safety Instructions 2294516 Brumberg 12425074 12425074 LED recessed light LED (monochrome) w/o 15 W White
Description
LED-Downlight TunableWhite, white, round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Type of mounting: Installation, Mounting location: Ceiling mounting, Material: Aluminum / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) III, Voltage: 24V, Power: 15W, Number of bulbs / sockets: 1.0 pcs, Light current: 980lm, Color temperature: 2700 to 6000K, Angle of radiation: 100°, Adjustable: Not adjustable, without operating device,
