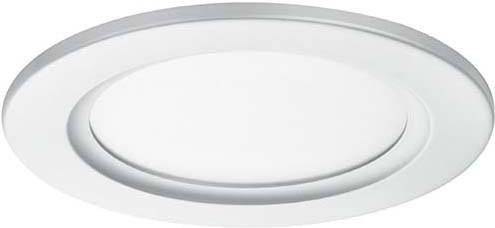

Brumberg 12435074 12435074 LED recessed panel LED (monochrome) w/o 12 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED panel-mounted 24VDC TW white 12435074
- Power= 12 W White
Technical specifications
- Operating device: Voltage-controlled LED operating device
- Dimming depends on the operating device: Yes
- With bulb: Yes
- Color temperature 2700..5700 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed panel
- Operating voltage
24 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
12 W
12 W
- Colour
White
- Type
Planar
- Radiation angle
80°
- Light features
Recess mount option
- Recess diameter
120 mm
- Recess depth
30 mm
- Outside Ø
140 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 5700 K
- Height
5 mm
Documents & Downloads
Datasheet
Datasheet 2292770 Brumberg 12435074 12435074 LED recessed panel LED (monochrome) w/o 12 W White
User & Safety Instructions
User & Safety Instructions 2292770 Brumberg 12435074 12435074 LED recessed panel LED (monochrome) w/o 12 W White
Description

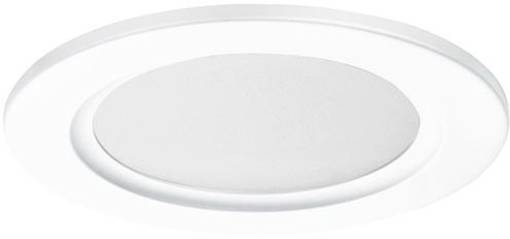

LED installation panel FLAT30 TunableWhite, white. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) III, Voltage: 24V, Power: 12W, Number of bulbs / sockets: 1.0 pcs, Color temperature: 2700 to 5700K, Angle of radiation: 120°, Adjustable: Not adjustable, without operating device, Type of dimming: Other,
This text is machine translated.
This text is machine translated.
