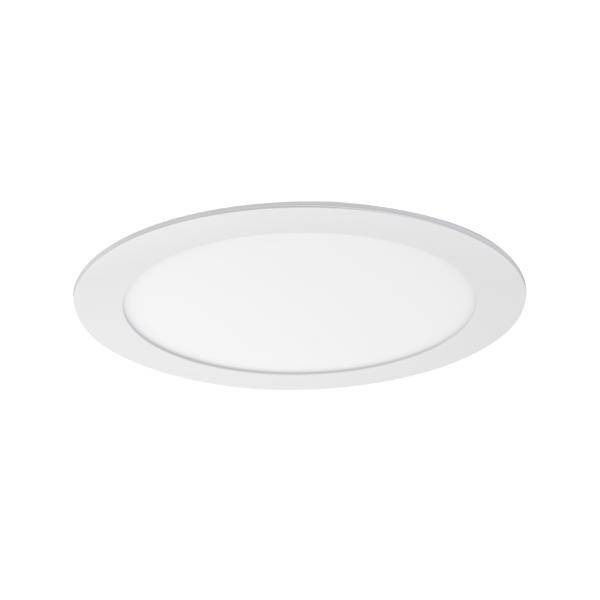

Brumberg 12453173 12453173 LED recessed light LED (monochrome) Built-in LED 19 W White
EAN:
Part number:
Item no:
Highlights & Details
Brumberg LED panel lamps 350 mA 2700/3300/4000K 12453173
- Power= 19 W Total luminous flux= 2000 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection: Other
- Housing color: White
- Surface brushed: No.
- Voltage type DC
- Rated LED current at constant current 350 mA
- Operating device: LED operating device current-controlled
- With operating device: No.
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Light emission: Direct
- Constant luminous flux regulation: No.
- Protection type (IP) IP44
- Protection class III
- Suitable for lamp output 18.5 W
- Max. System power 18.5 W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Luminous flux: 2000 lm
- Rated light current according to IEC 62722-2-1: 2000 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

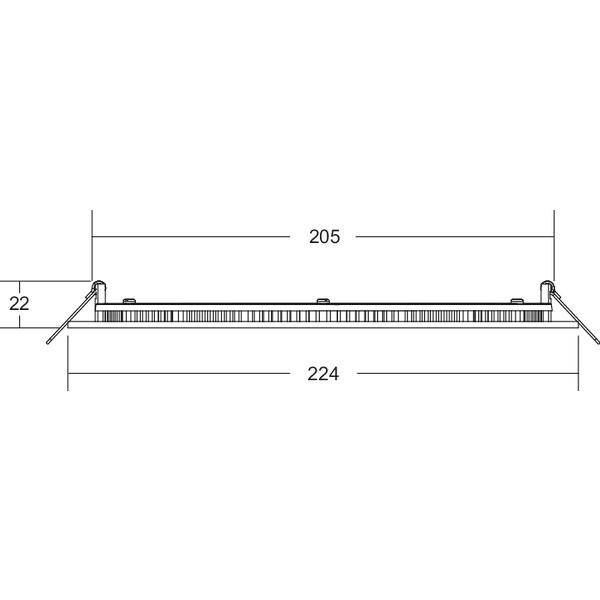

- Height/depth 3 mm
- Outer diameter: 224 mm
- Installation height/depth 22 mm
- Installation diameter 205 mm
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Light output 108.11 lm/W
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
19 W
19 W
2000 lm
- Total luminous flux
2000 lm
4000 K
- Colour
White
- Type
Circular
- Radiation angle
110°
- Recess diameter
205 mm
- Recess depth
22 mm
- Outside Ø
224 mm
IP44
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 224 mm x 3.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Height
3.00 mm
- Depth
3 mm
- (Ø)
224 mm
- Rated luminous flux
2000 lm
- Colour rendering index
80-89
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3139144 Brumberg 12453173 12453173 LED recessed light LED (monochrome) Built-in LED 19 W White
Description
LED-panel-mounted panel, IP44, structure-white, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Plug & play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / PMMA, protection class on room side: According to DIN EN 60529: IP44, protection class: (EN 61140) III, power: 18.5 W, number of bulbs / sockets: 110 piece, light current: 2,000 lm, color temperature: 4,000 K, angle of radiation: 1°, adjustable: Not, without operating device, type of dimming: depending on the operating device.
