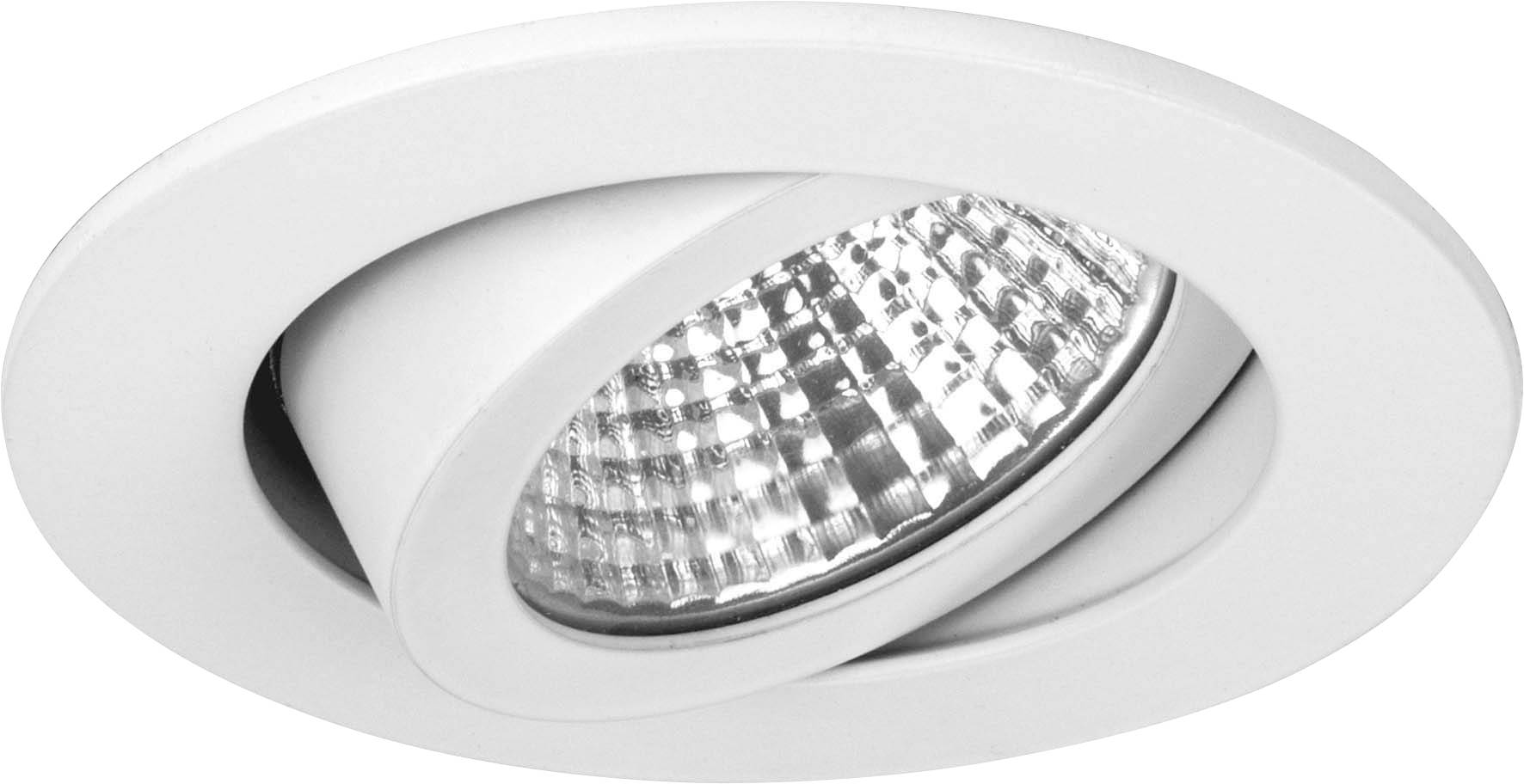

Brumberg 12461253 12461253 LED recessed light LED (monochrome) 6 W Aluminium
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED recessed spotlights 350mA d2w aluminum 12461253
- Power= 6 W Total luminous flux= 460 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 507 lm
- Operating device: LED operating device current-controlled
- Screen workstation suitable according to EN 12464-1: no.
- Color temperature 2800..2000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent plastic
- Product type
LED recessed light
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
507 lm
- Total luminous flux
460 lm
- Colour
White
- Type
Circular
- Protection screen
Clear
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
38 mm
- Outside Ø
82 mm
IP20
- Protection class
III
- Factory colour
Aluminium
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature (max.)
2800 K
- Colour temperature (min.)
2000 K
- Colour temperature range
2000 - 2800 K
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2298107 Brumberg 12461253 12461253 LED recessed light LED (monochrome) 6 W Aluminium
User & Safety Instructions
User & Safety Instructions 2298107 Brumberg 12461253 12461253 LED recessed light LED (monochrome) 6 W Aluminium
Description
LED mounted spotlight dim2warm, aluminum, round. Designed in a compact design for quick mounting without tools for ceiling installation. When the light is dimmed, the color temperature decreases. Socket: Plug&Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 350 mA, power: 6W, number of bulbs / sockets: 1.0 pcs, luminous flux: 460lm, color temperature: 3000 to 1800K, angle of radiation: 38°, adjustability: Swiveling, without operating device,
This text is machine translated.
This text is machine translated.
