Brumberg 12520074 12520074 LED recessed light LED (monochrome) Bulb cannot be changed 7 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED BUILD-IN RADIATOR 700mA 4000K white 12520074
- Power= 7 W Total luminous flux= 660 lm Colour temperature= 4000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 670 lm
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: Yes
- Colour temperature: 4000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- LED current rating at constant current 700 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Cover material: Transparent glass
- Product type
LED recessed light
- No. of bulbs
1
Bulb cannot be changed
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
7 W
670 lm
- Total luminous flux
660 lm
4000 K
- Colour
White
- Protection screen
Clear
- Radiation angle
40°
- Light features
Dimmable
- Recess diameter
83 mm
- Recess depth
62 mm
- Outside Ø
92 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
4000 K
Documents & Downloads
Datasheet
Datasheet 2294980 Brumberg 12520074 12520074 LED recessed light LED (monochrome) Bulb cannot be changed 7 W White
User & Safety Instructions
User & Safety Instructions 2294980 Brumberg 12520074 12520074 LED recessed light LED (monochrome) Bulb cannot be changed 7 W White
Description

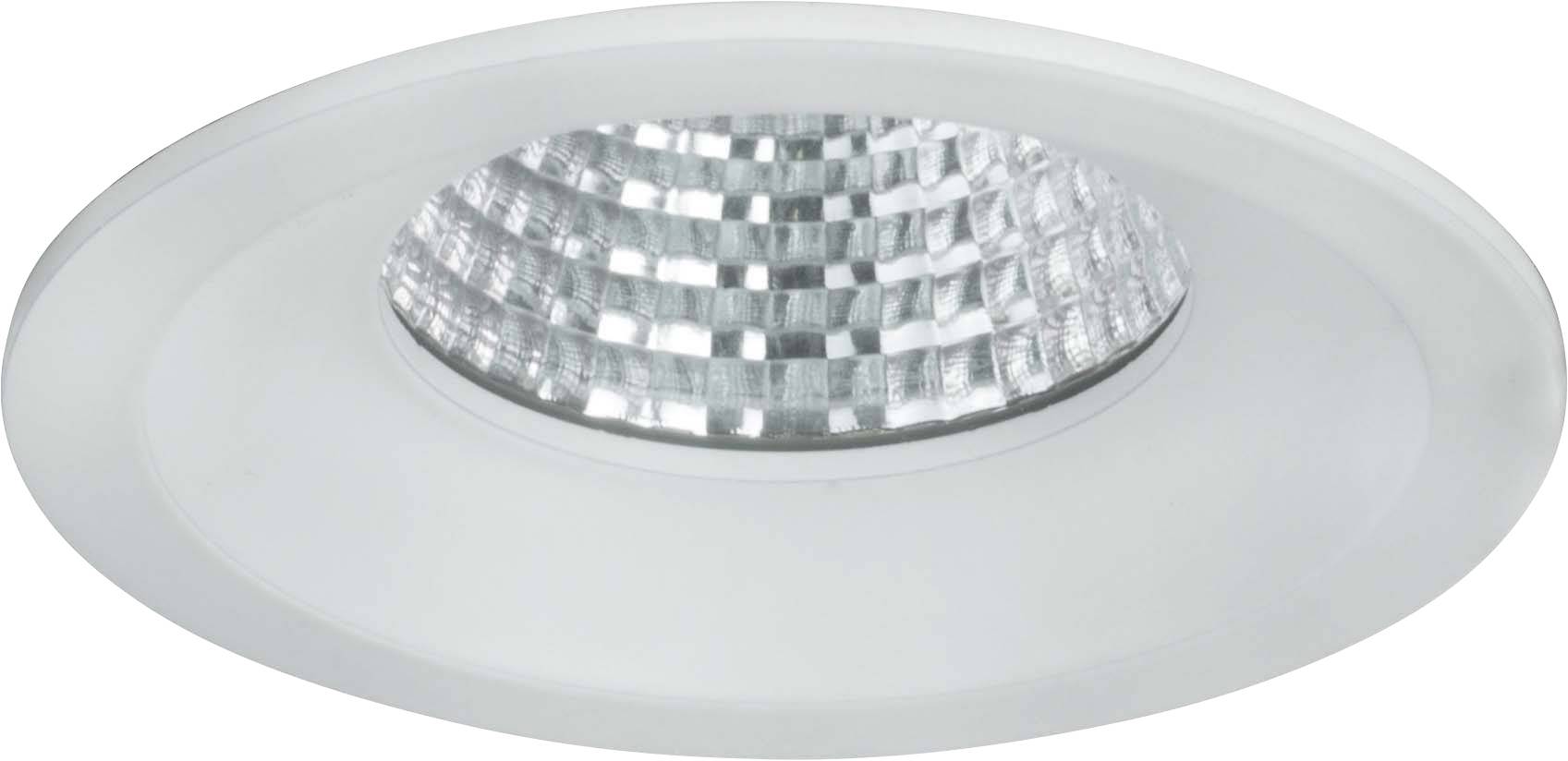

LED Downlight BOWL, white. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play 700mA, mounting type: Installation, mounting location: Ceiling mounting, material: Aluminum / glass, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 700 mA, power: 7W, number of bulbs / sockets: 1.0 pcs, luminous flux: 660lm, color temperature: 4000K, angle of radiation: 30°, adjustability: Not adjustable, without operating device, type of dimming: Other,
This text is machine translated.
This text is machine translated.
