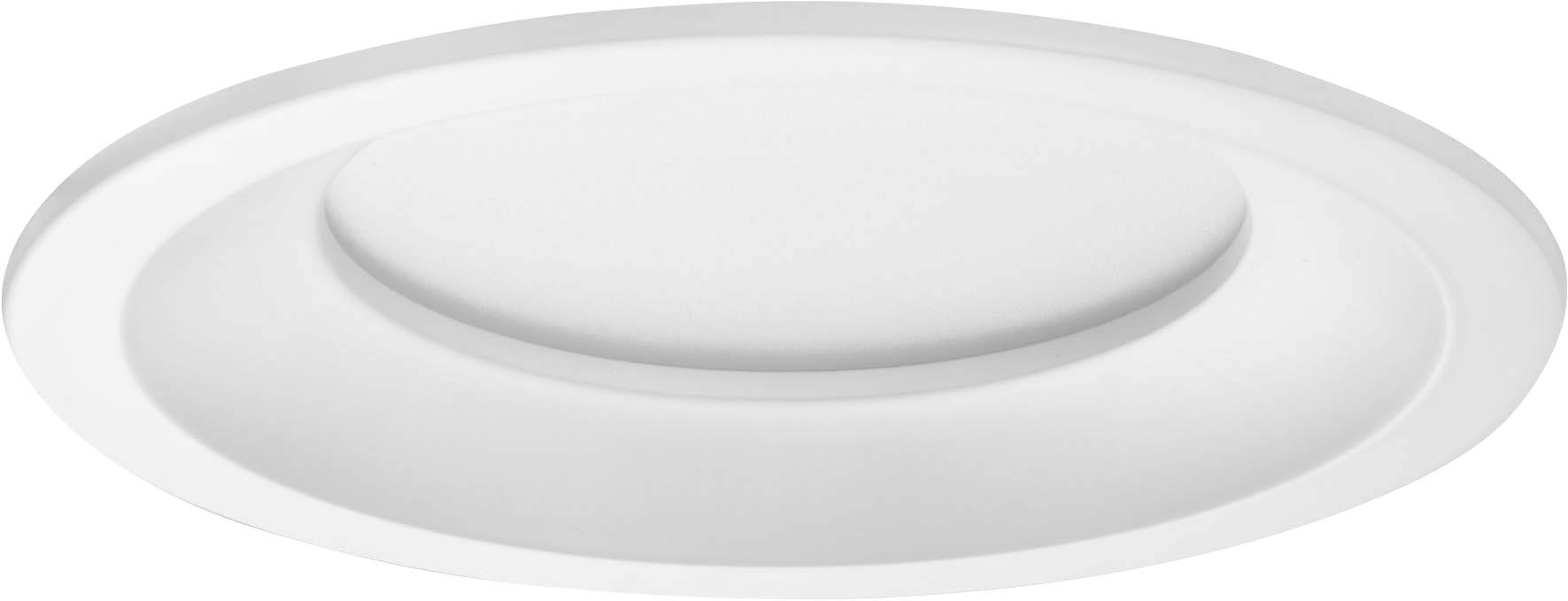

Brumberg 12528073 12528073 LED recessed light LED (monochrome) w/o 20 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN RADIATOR 500mA 3000K white 12528073
- Power= 20 W Total luminous flux= 1640 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 1660 lm
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for clamp mounting: no.
- LED nominal current at constant current 500 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
20 W
20 W
1660 lm
- Total luminous flux
1640 lm
3000 K
- Colour
White
- Radiation angle
80°
- Light features
Dimmable
- Recess diameter
155 mm
- Recess depth
66 mm
- Outside Ø
175 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
Documents & Downloads
Datasheet
Datasheet 2291668 Brumberg 12528073 12528073 LED recessed light LED (monochrome) w/o 20 W White
User & Safety Instructions
User & Safety Instructions 2291668 Brumberg 12528073 12528073 LED recessed light LED (monochrome) w/o 20 W White
Description
LED Downlight BOWL, white. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) III, Current: 500 mA, Power: 20W, Number of bulbs / sockets: 1.0 pcs, Light current: 1.640 lm, Color temperature: 3000K, Light color: White, Radiation angle: 100°, Adjustable: Not adjustable, without operating device, Dimming type:
This text is machine translated.
This text is machine translated.
