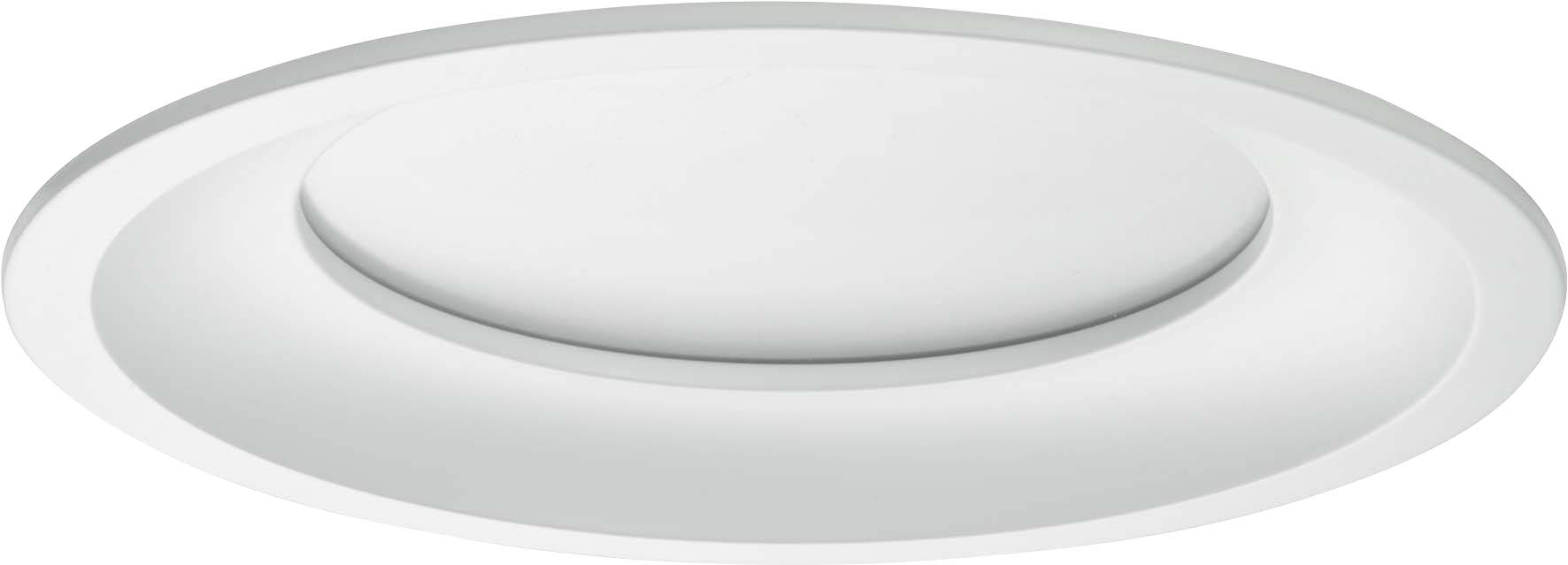

Brumberg 12529073 12529073 LED recessed light LED (monochrome) Built-in LED 30 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN RADIATOR 700mA 3000K white 12529073
- Power= 30 W Total luminous flux= 2510 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 2310 lm
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- LED current rating at constant current 700 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
30 W
30 W
2310 lm
- Total luminous flux
2510 lm
3000 K
- Colour
White
- Type
Circular
- Radiation angle
80°
- Light features
Dimmable
- Recess diameter
210 mm
- Recess depth
70 mm
- Outside Ø
230 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
Documents & Downloads
Datasheet
Datasheet 2292193 Brumberg 12529073 12529073 LED recessed light LED (monochrome) Built-in LED 30 W White
User & Safety Instructions
User & Safety Instructions 2292193 Brumberg 12529073 12529073 LED recessed light LED (monochrome) Built-in LED 30 W White
Description
LED Downlight BOWL, white. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 700 mA, power: 30W, number of bulbs / sockets: 1.0 pcs, luminous flux: 2.510lm, color temperature: 3000K, light color: White, radiation angle: 100°, adjustability: Not adjustable, without operating device, other type:
This text is machine translated.
This text is machine translated.
