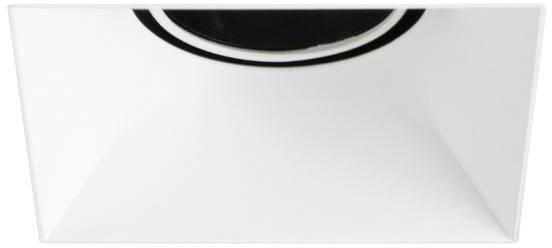

Brumberg 12643073 12643073 LED recessed light LED (monochrome) w/o 9 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED recessed light 1900-3000K white 12643073
- Power= 9 W Total luminous flux= 920 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 920 lm
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: Yes
- Color temperature 1900..3000 K.
- Color rendering index CRI: 90-100
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for clamp mounting: no.
- LED nominal current at constant current 500 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Product type
LED recessed light
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
9 W
9 W
920 lm
- Total luminous flux
920 lm
- Colour
White
- Radiation angle
40°
- Light features
Pivoted
Swivelling
- Recess depth
106 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W) 68 mm x 68 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
1800 K
- Colour temperature range
1800 - 3000 K
- Width
68 mm
- Length
68 mm
Documents & Downloads
Datasheet
Datasheet 2291359 Brumberg 12643073 12643073 LED recessed light LED (monochrome) w/o 9 W White
User & Safety Instructions
User & Safety Instructions 2291359 Brumberg 12643073 12643073 LED recessed light LED (monochrome) w/o 9 W White
Description
LED system installation spotlight COUPLED, recessed, dim2warm, white. Designed in a compact design for quick mounting without tools for ceiling installation. When the light is dimmed, the color temperature decreases. Mounting only plus surface or mounting frame 82040170, 82041170, 82042170 or 82043170 possible, socket: Without, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 500 mA, power: 9.4W, number of / sockets: 1.0 pcs, light current: 920lm 3000 to 1800K, radiation angle: 34°, adjustability: Rotatable and swiveling, without operating device, type of dimming: Other,
This text is machine translated.
This text is machine translated.
