Brumberg 12650173DW LED recessed light LED (monochrome) w/o White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total luminous flux= 390 lm Colour temperature= 3000 K White
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V AC
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
- Total luminous flux
390 lm
3000 K
- Colour
White
- Radiation angle
40°
- Light features
Recess mount option
Ceiling mount option
Incl. ballast
Dimmable
Direct light emission
Selectable luminous flux

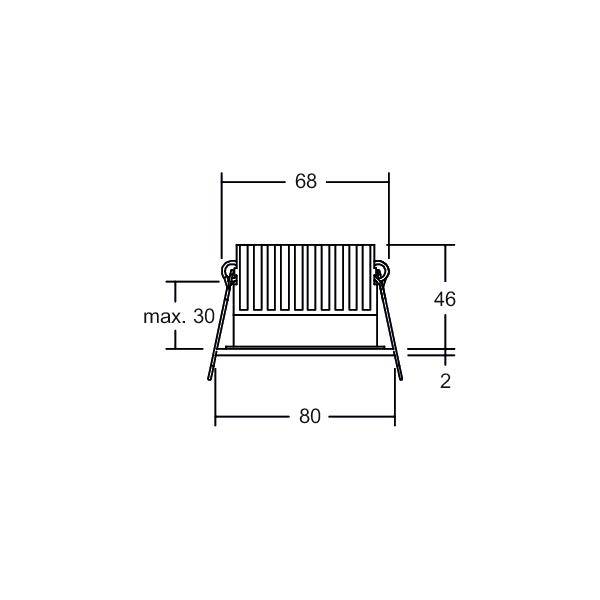

- Recess diameter
68 mm
- Recess depth
46 mm
- Outside Ø
80 mm
- Protection class
II
- Factory colour
White
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
2 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3832048 Brumberg 12650173DW LED recessed light LED (monochrome) w/o White
User & Safety Instructions
User & Safety Instructions 3832048 Brumberg 12650173DW LED recessed light LED (monochrome) w/o White
Description
LED recessed downlight, integrated converter (DOB), phase section dimmable, dimmable, Dim2warm, with connection box, white structure, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: LED, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, protection class: At room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, power: 3,000 W, number of lights / sockets: 38 piece, light current: 390 lm, color temperature: 6 K, light color: White, angle of radiation: 1°, Adjustable: not adjustable, with operating device: yes, dimmable: yes, type of dimming: phase section.
This text is machine translated.
This text is machine translated.
