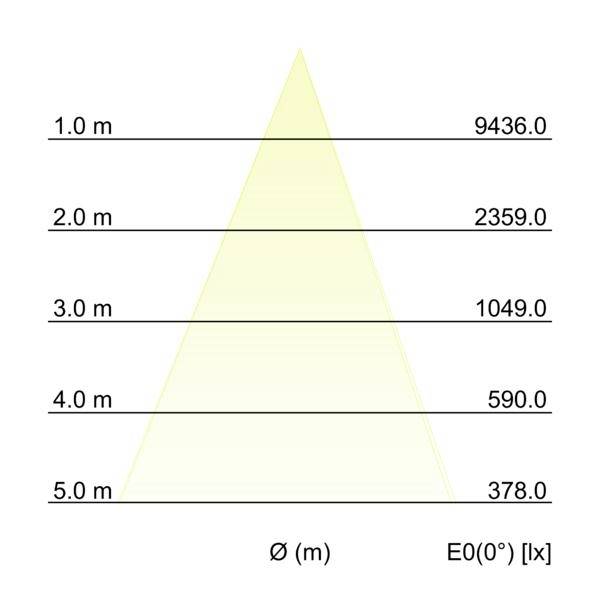

![Beam spread chart showing illuminance decreases with distance: Ø (m) from 1.0 to 5.0 m, E0(0°) [lx] from 9436 to 378, over a triangular light cone.<br>](https://asset.conrad.com/media10/isa/160267/c1/-/en/003830663PI02T1789393794/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/5
Brumberg 12769073 LED recessed light LED (monochrome) w/o 50 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 50 W Total luminous flux= 4270 lm White
Technical specifications
- Product type
LED recessed light
- Operating voltage
220 V
240 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
50 W
50 W
- Total luminous flux
4270 lm
- Colour
White
- Protection screen
Textured
- Radiation angle
80°
- Light features
Recess mount option
Ceiling mount option
Incl. ballast
Dimmable
Direct light emission
Selectable luminous flux

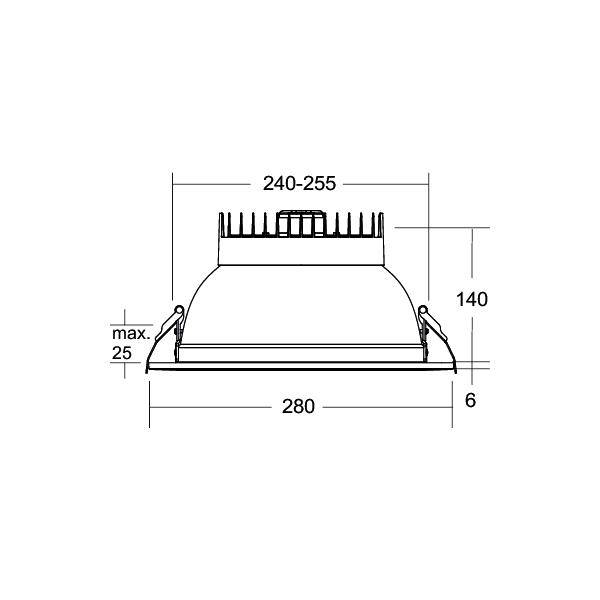

- Recess diameter
255 mm
- Recess depth
140 mm
- Outside Ø
280 mm
- Protection class
II
- Factory colour
White
- Material
Aluminium
Plastic
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 5700 K
- Height
7 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3830663 Brumberg 12769073 LED recessed light LED (monochrome) w/o 50 W White
Datasheet 3830663 Brumberg 12769073 LED recessed light LED (monochrome) w/o 50 W White
User & Safety Instructions
User & Safety Instructions 3830663 Brumberg 12769073 LED recessed light LED (monochrome) w/o 50 W White
Description
LED INSTALLATIONLIGHT, 5CCT, UGR<19, DALI dimmable, passage wiring possible, Reflector silver, faceted, white matt, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Without socket, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium/polycarbonate/steel, protection class: Space side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 1 V AC 50 Hz, power: 50 W, number of lights / sockets: 230 piece, light current: From 3,450 lm to 4,270 lm, color temperature: from 2,700 K to 5,700 K, light color: white, angle of radiation: 60°, adjustable: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.
