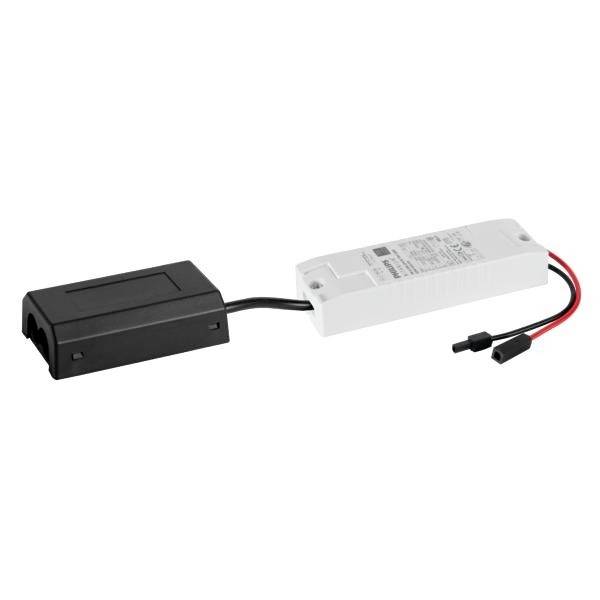

Brumberg 17684010 LED transformer Constant current 7 W 350 mA 8 - 20 V dimmable, DALI 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
17684010
- Constant current
- 8 - 20 V
- 350 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Operating current
350 mA
- Dim
(L x W x H) 130 x 42 x 22 mm
- Output voltage (max.)
20 V
- Output voltage (min.)
8 V
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
dimmable
DALI
IP20
- Connection
Clamp
- Max. power
7 W
- Power (min.)
2.8 W
- Power range
2.8 up to 7 W
- Width
42 mm
- Height
22 mm
- Length
130 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2755171 Brumberg 17684010 LED transformer Constant current 7 W 350 mA 8 - 20 V dimmable, DALI 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2755171 Brumberg 17684010 LED transformer Constant current 7 W 350 mA 8 - 20 V dimmable, DALI 1 pc(s)
Description

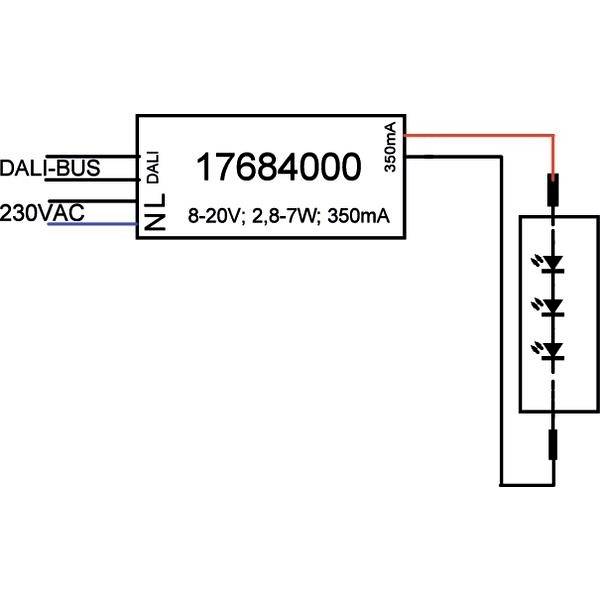

LED-converter 350 mA, DALI dimmable (digital). This converter is protected against overvoltage and short-circuit as well as electrical overload by fuse devices. The input and output terminals are suitable for cables with a cross-section of 0.75 to 1.5 mm². Material: Plastic, protection class: According to DIN EN 60529: IP20, protection class (EN 61140) II, voltage: 230V AC 50Hz, power: 7W, type of dimming: DALI-2.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
