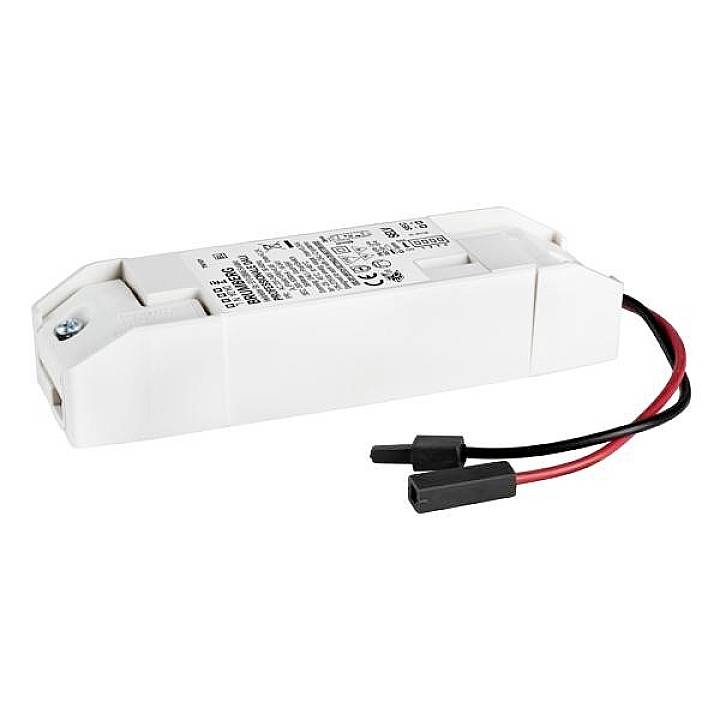

Brumberg 17685000 LED transformer Constant current 18 W 350 mA 10 - 54 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
17685000
- Constant current
- 10 - 54 V
- 350 mA
Technical specifications
- Protection class: II
- Product type
LED transformer
- Type
Constant current
- Dim
(L x W x H) 146 x 44 x 30 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
10 V
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
18 W
- Output current (min.)
350 mA
- Power (min.)
3.5 W
- Power range
3.5 up to 18 W
- Width
44 mm
- Height
30 mm
- Length
146 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2598708 Brumberg 17685000 LED transformer Constant current 18 W 350 mA 10 - 54 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2598708 Brumberg 17685000 LED transformer Constant current 18 W 350 mA 10 - 54 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
