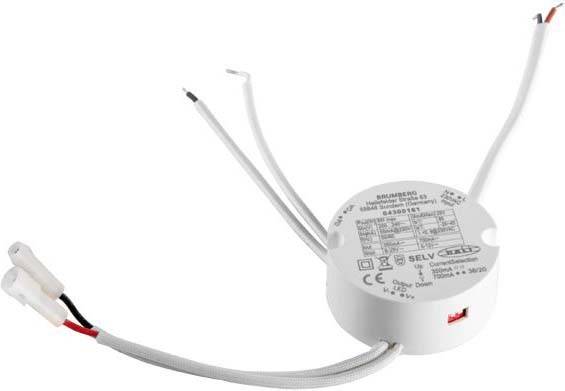

Brumberg 17758000 LED transformer 9 W 700 mA 6 - 12 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
17758000
- 6 - 12 V
- 700 mA
Technical specifications
- Suitable for outdoor use: no.Suitable for constant current: YesSuitable for constant voltage: no.Suitable for DC voltage (primary side): no.Protection class: II
- Product type
LED transformer
- Dim
(W x H) 56 mm x 25 mm
- Output voltage (max.)
12 V
- Output voltage (min.)
6 V
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- LED driver features
dimmable
IP20
- Max. power
9 W
- Type
dynamic
- Power range
9 W (max)
- Width
56 mm
- Height
25 mm
- Material (details)
Plastic housing
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2610886 Brumberg 17758000 LED transformer 9 W 700 mA 6 - 12 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2610886 Brumberg 17758000 LED transformer 9 W 700 mA 6 - 12 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
