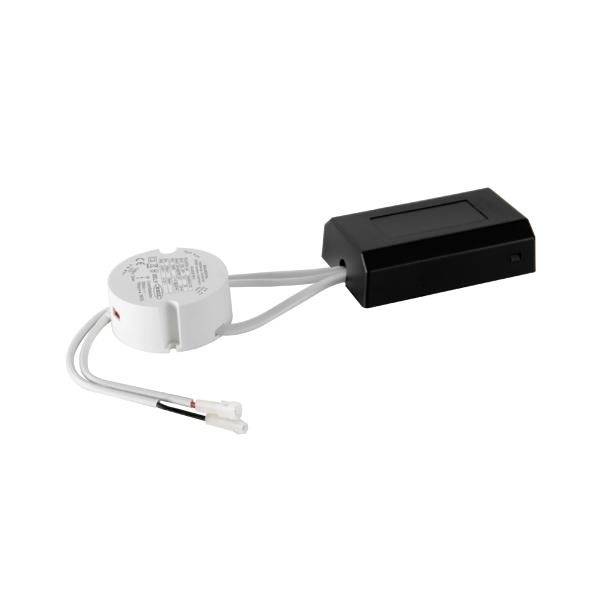

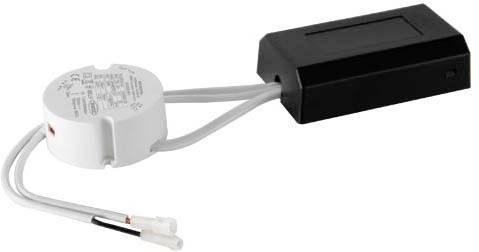

Brumberg 17758020 LED transformer Constant current 9 W 700 mA 6 - 12 V dimmable, DALI 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lamps LED Round Converter 700 mA 4,2-9 W 17758020
- Constant current
- 6 - 12 V
- 700 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Operating current
700 mA
- Dim
(W x H) 56 mm x 25 mm
- Output voltage (max.)
12 V
- Output voltage (min.)
6 V
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
dimmable
DALI
IP20
- Max. power
9 W
- Output current (min.)
700 mA
- Power (min.)
4.2 W
- Power range
4.2 up to 9 W
- Width
56 mm
- Height
25 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2745906 Brumberg 17758020 LED transformer Constant current 9 W 700 mA 6 - 12 V dimmable, DALI 1 pc(s)
Description
LED round converter 700 mA, DALI dimmable (digital). This converter is protected against overvoltage and short circuit as well as thermal and electrical overload by fuse devices. Material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 9W, dimmable: Yes, type of dimming: DALI-2.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
