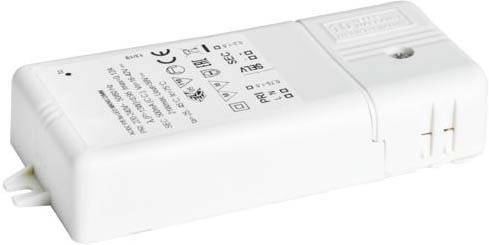

Brumberg 17822010 LED transformer Constant current 20 W 500 mA 16 - 40 V dimmable 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Light LED Converter 500 mA 8-20W, Phase synchronized 17822010
- Constant current
- 16 - 40 V
- 500 mA
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Dim
(L x W x H) 110.5 x 52 x 22 mm
- Output voltage (max.)
40 V
- Output voltage (min.)
16 V
- Test mark
DIN EN 50172 VDE 0108-100:2005-01. DIN EN 60529: IP20. EN 61140 II
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Operating voltage
230 V AC
- Protection class
II
- LED driver features
dimmable
IP20
- Connection
Clamp
- Max. power
20 W
- Output current (min.)
500 mA
- Power (min.)
8 W
- Power range
8 up to 20 W
- Width
52 mm
- Height
22 mm
- Length
110.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2745912 Brumberg 17822010 LED transformer Constant current 20 W 500 mA 16 - 40 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2745912 Brumberg 17822010 LED transformer Constant current 20 W 500 mA 16 - 40 V dimmable 1 pc(s)
Description

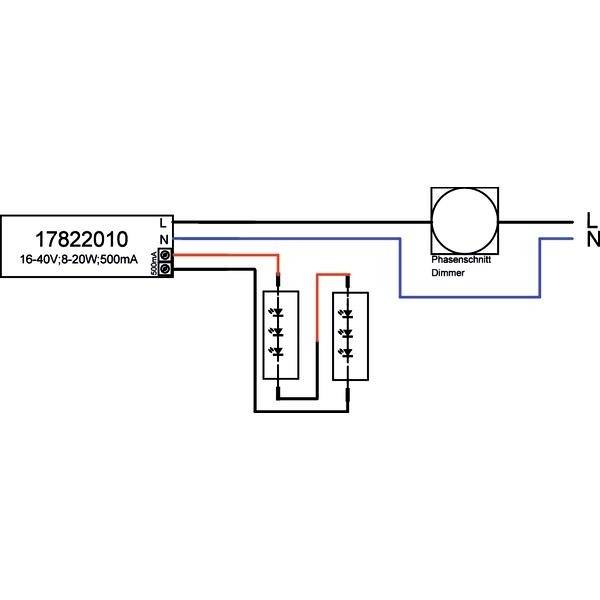

LED-converter 500 mA, phase section dimmable. This operating device meets the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01. This converter is protected against overvoltage and short circuit as well as thermal and electrical overload by fuse devices. The input and output terminals are suitable for cables with a cross-section of up to 2.5 mm². . Material: Plastic, protection class: According to DIN EN 60529:IP20, protection class (EN 61140) II, voltage: 230V AC 50Hz, power: 20W, type of dimming: Phase section.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
