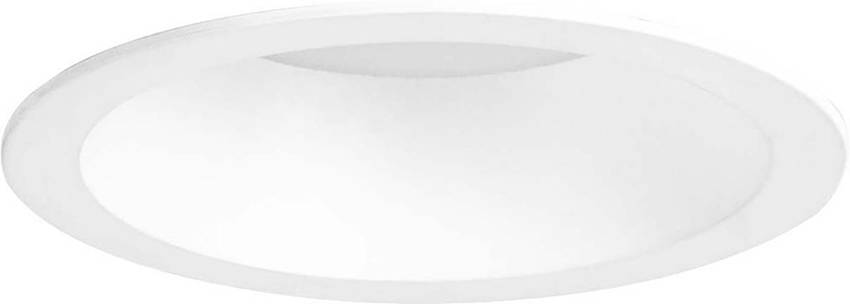

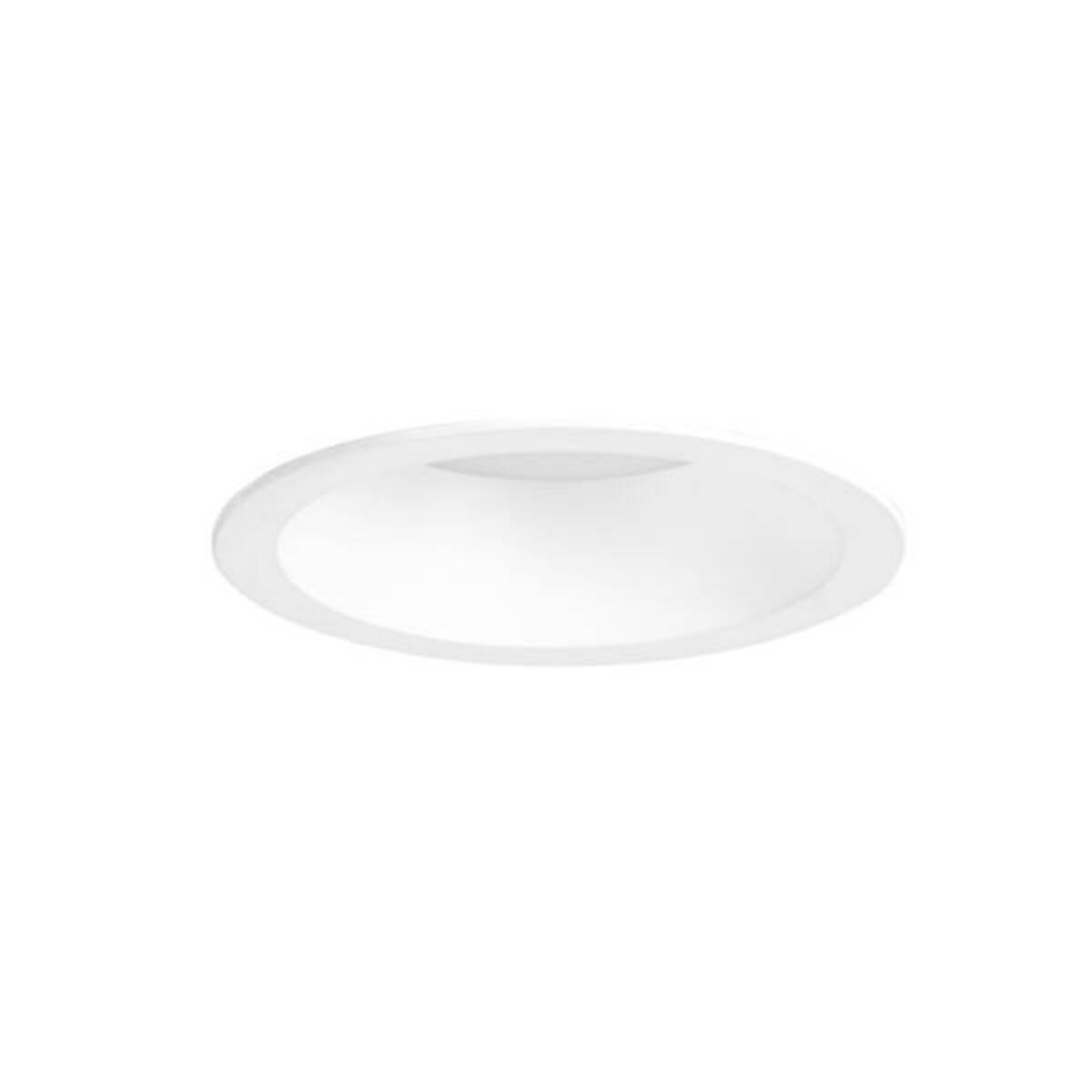

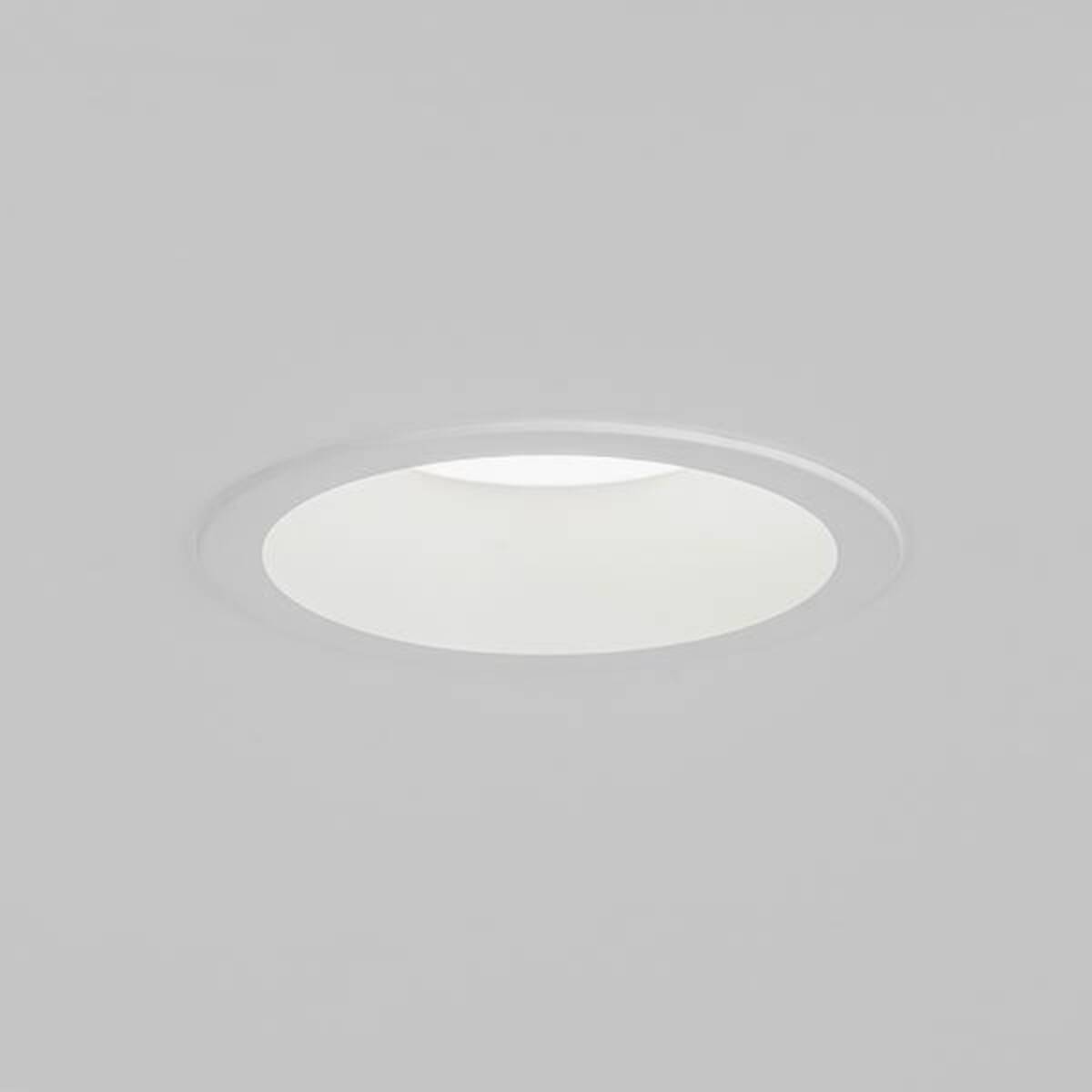

Brumberg 32028073 32028073 LED recessed light LED (monochrome) w/o 16 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-CEILING MOUNTED Downlight 3000K/4000K/5700K 32028073
- Power= 16 W Total luminous flux= 1460 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 1460 lm
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Color temperature 3000..5700 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: None
- Voltage type: AC
- Material of the cover: Plastic opal
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
16 W
16 W
1460 lm
- Total luminous flux
1460 lm
- Colour
White
- Type
Circular
- Radiation angle
90°
- Light features
Incl. ballast

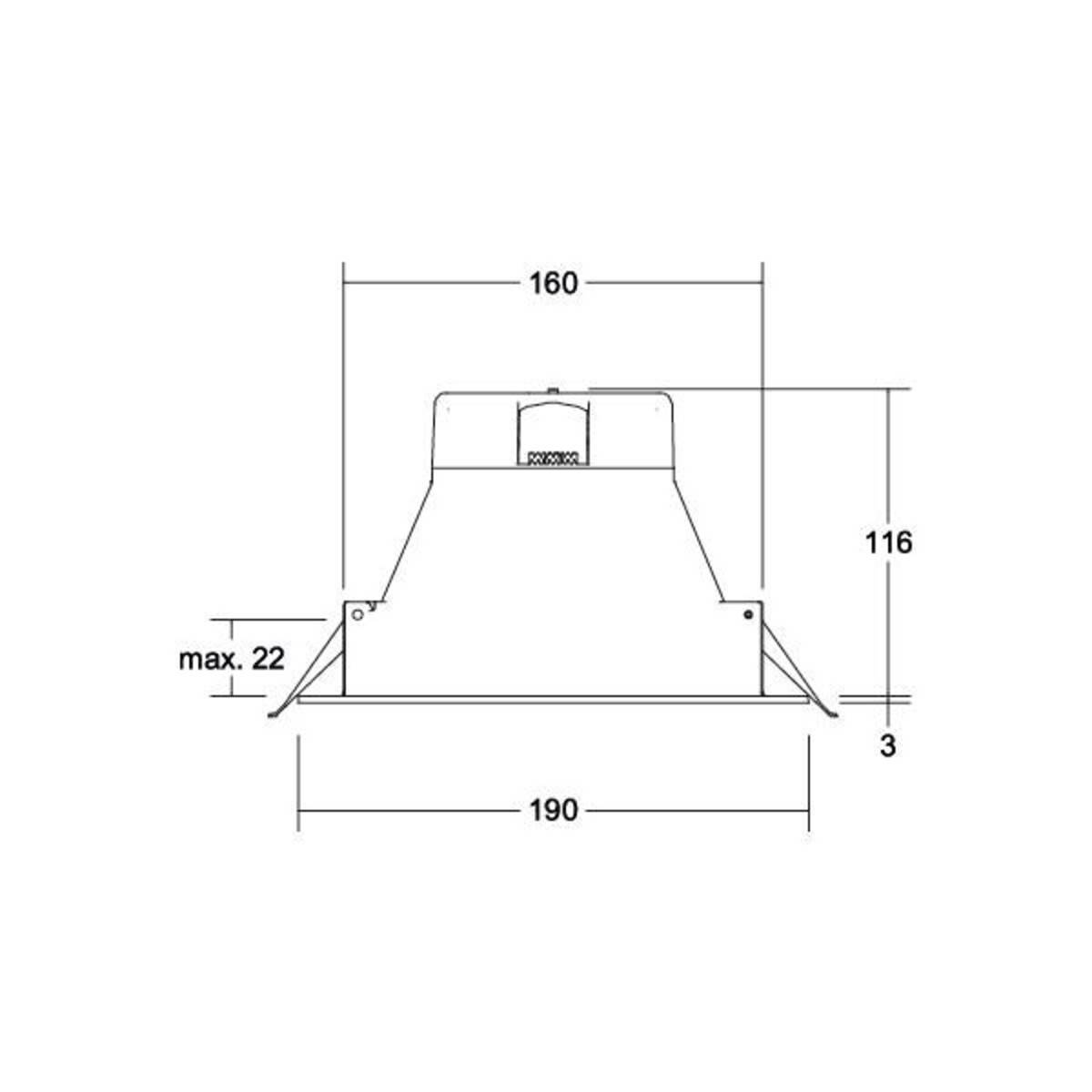

- Recess diameter
160 mm
- Recess depth
116 mm
- Outside Ø
190 mm
IP54
- Protection class
II
- Factory colour
White
- Material
Plastic
n.rel.
- Light bulb included
Yes
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 5700 K
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2294982 Brumberg 32028073 32028073 LED recessed light LED (monochrome) w/o 16 W White
Description
Spotlight LED installation downlight 3000K/4000K/5700K, round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Type of mounting: Installation, Mounting location: Ceiling mounting, Material: Plastic, Protection type: According to DIN EN 60529: IP54, Protection class: (EN 61140) II, Voltage: 230V 50Hz, Power: 16W, Number of bulbs / sockets: 1.0 pcs, Light current: 1.460lm, Color temperature: 3000 to 5700K, Radiation angle: 90°, Adjustable: Not adjustable, with operating device,
This text is machine translated.
This text is machine translated.
What kind of Flush Mount Lighting are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
