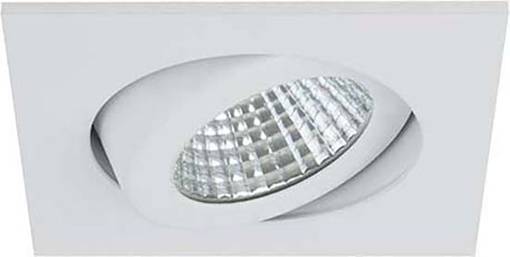

Brumberg 33355643 33355643 LED recessed light LED (monochrome) w/o 6 W Titanium
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN RADIATOR 230V 3000K IP65 titan 33355643
- Power= 6 W Total luminous flux= 650 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 600 lm
- Operating device: LED operating device current-controlled
- Screen workstation suitable according to EN 12464-1: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Cover material: Transparent plastic
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
600 lm
- Total luminous flux
650 lm
- Colour
White
- Type
Square
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
45 mm
IP65
- Protection class
II
- Factory colour
Titanium
- Material
Aluminium
n.rel.
- Dim
(L x W) 82 mm x 82 mm
- Light bulb included
Yes
- Width
82 mm
- Length
82 mm
Documents & Downloads
Datasheet
Datasheet 2293389 Brumberg 33355643 33355643 LED recessed light LED (monochrome) w/o 6 W Titanium
User & Safety Instructions
User & Safety Instructions 2293389 Brumberg 33355643 33355643 LED recessed light LED (monochrome) w/o 6 W Titanium
Description
LED installation spotlight set IP65, switchable, titanium, square. Designed in a compact design for quick mounting without tools for ceiling installation. Set incl. converter for 230 V mains voltage, switchable, dimensions of converter: L 100 x W 38 x H 22 mm. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / steel / silicone rubber / plastic, Protection type: According to DIN EN 60529: IP65, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 6W, Number of bulbs / sockets: 1.0 pcs, Light current: 650lm, Color temperature: 3000K, Light color: White, Radiation angle: 38°, Adjustable: Swiveling, with operating device, type of dimming: Switchable,
This text is machine translated.
This text is machine translated.
